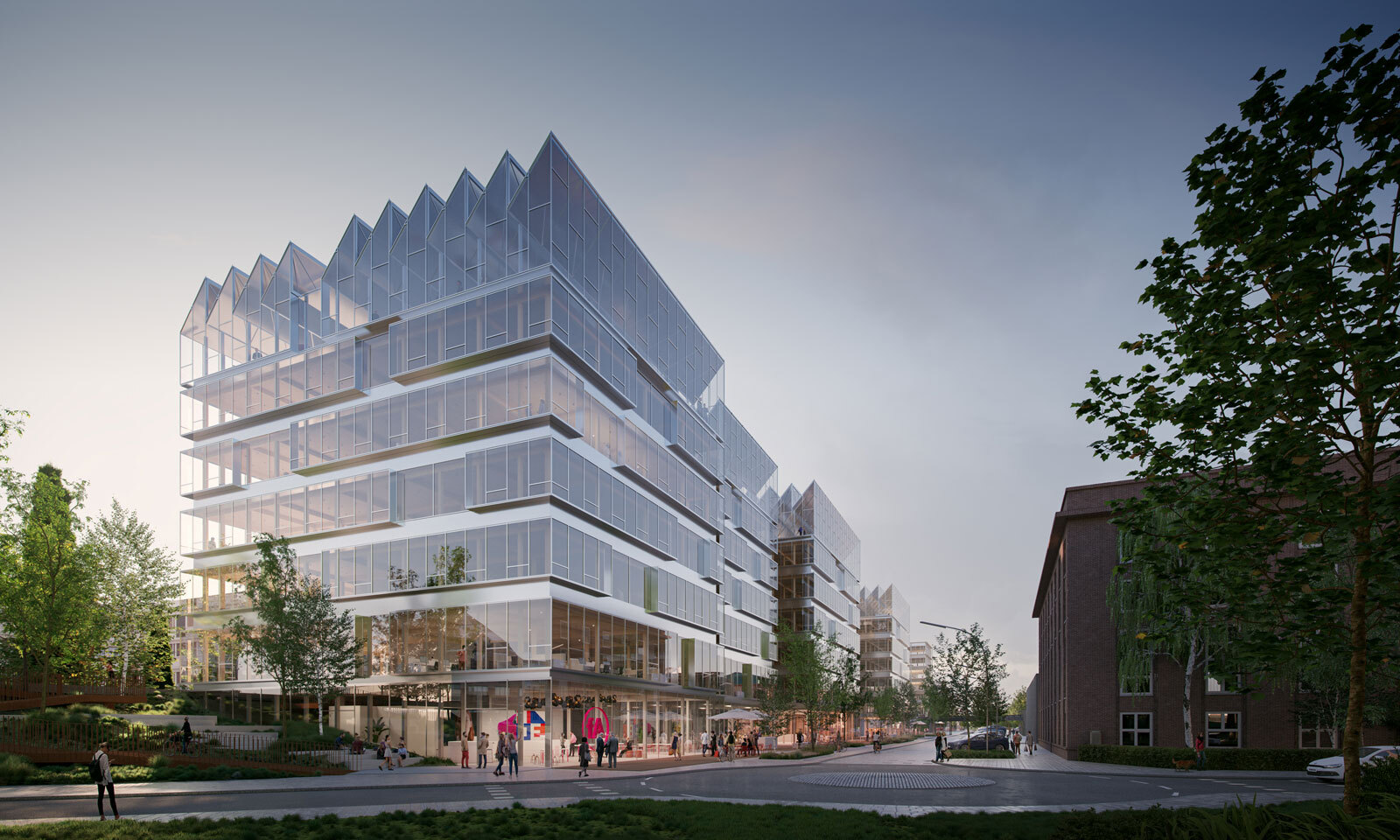

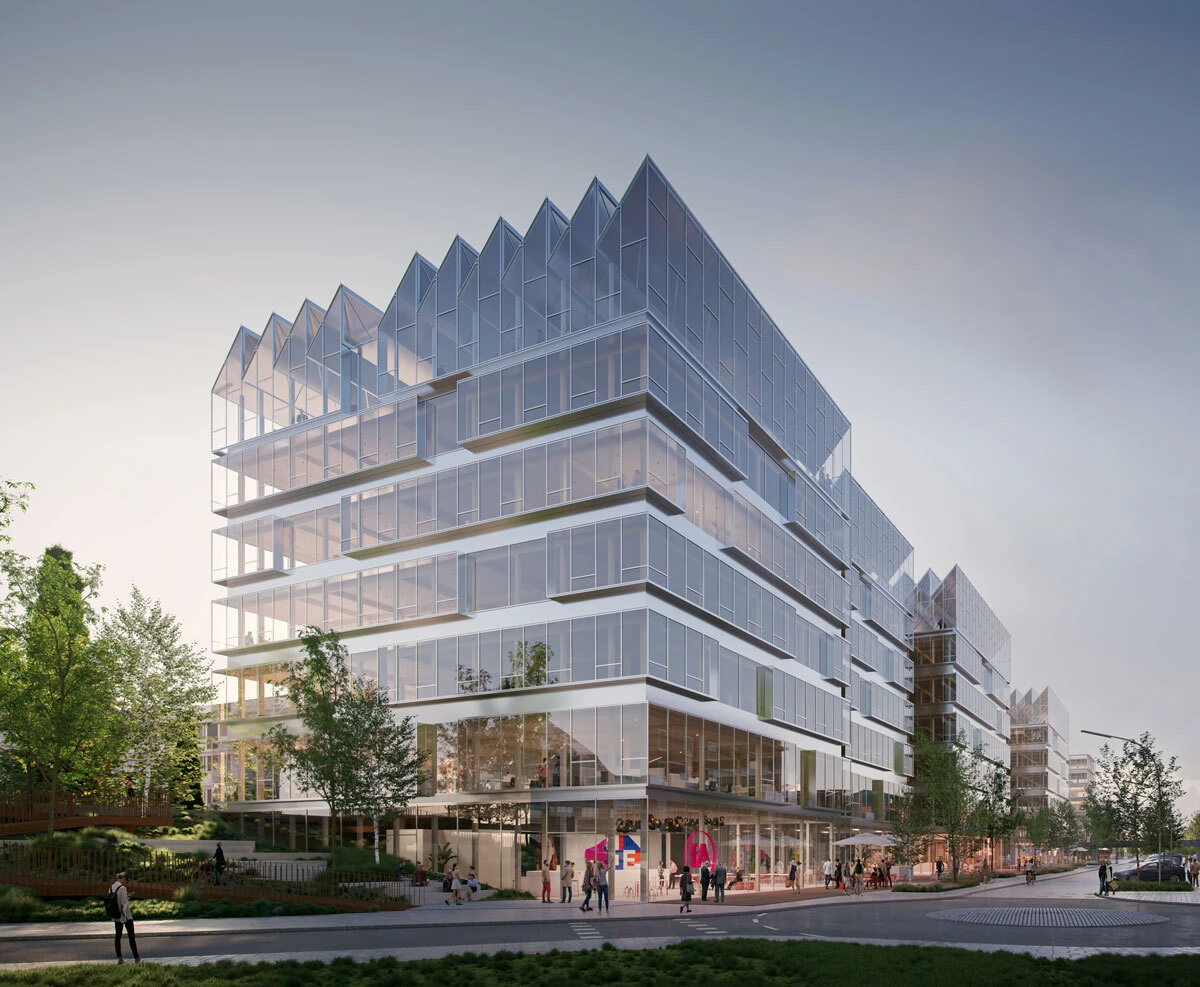

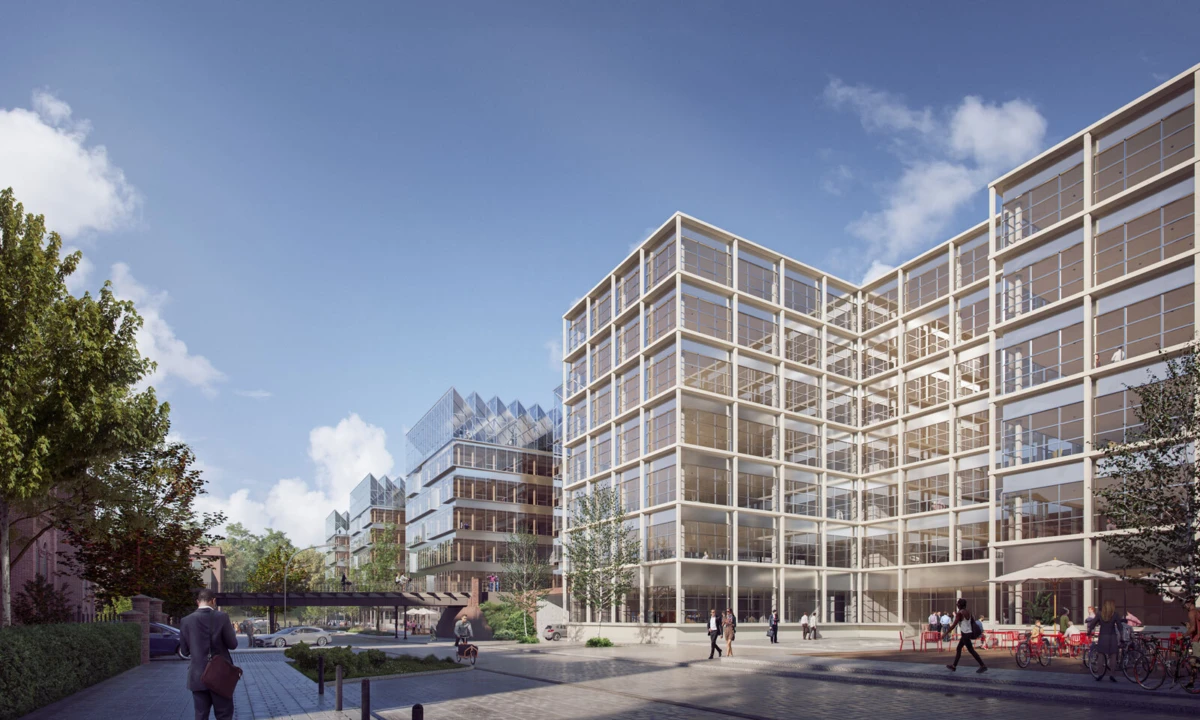

491 dmaa vis 01

Gasstrasse Hamburg
Germany

Landscape Design Mixed Use Office

Competition

The office buildings make an inviting gesture to it’s surrounding incorporating shared spaces which can be used by both employees and the public.

With the spacious layout of the office levels – designed as a timber construction – we create a “possibility space” for individual use and flexible transformations.

Our design proposes a shed-roof structure, which offers the opportunity to provide large surfaces for solar panels and a light glass-construction at the same time. It produces a greenspace full of lightness with a high quality of stay.



Address
Gasstrasse
Bahrenfeld, Hamburg

Competition
07/2021

Gross floor area
part A - 31.543m²
part B - 10.954m²

Site area
10.471 m²

Height
57 m

Number of levels
6

Number of basements
2

Project manager
Sebastian Brunke

Project team
Tom Peter-Hindelang,
Anna Piasecka, Adrian Stein

Visualization
Ultramarine
Giulio Pellizzon

Model
Modellart
Michael Eisenkölbl

CONSULTANTS
Structural Engineering
Bollinger+Grohmann

Landscape Design
Rabe Landschaft
Hamburg

Energy Design
Transsolar
KlimaEngineering

Cost Estimation
Wenzel+Wenzel

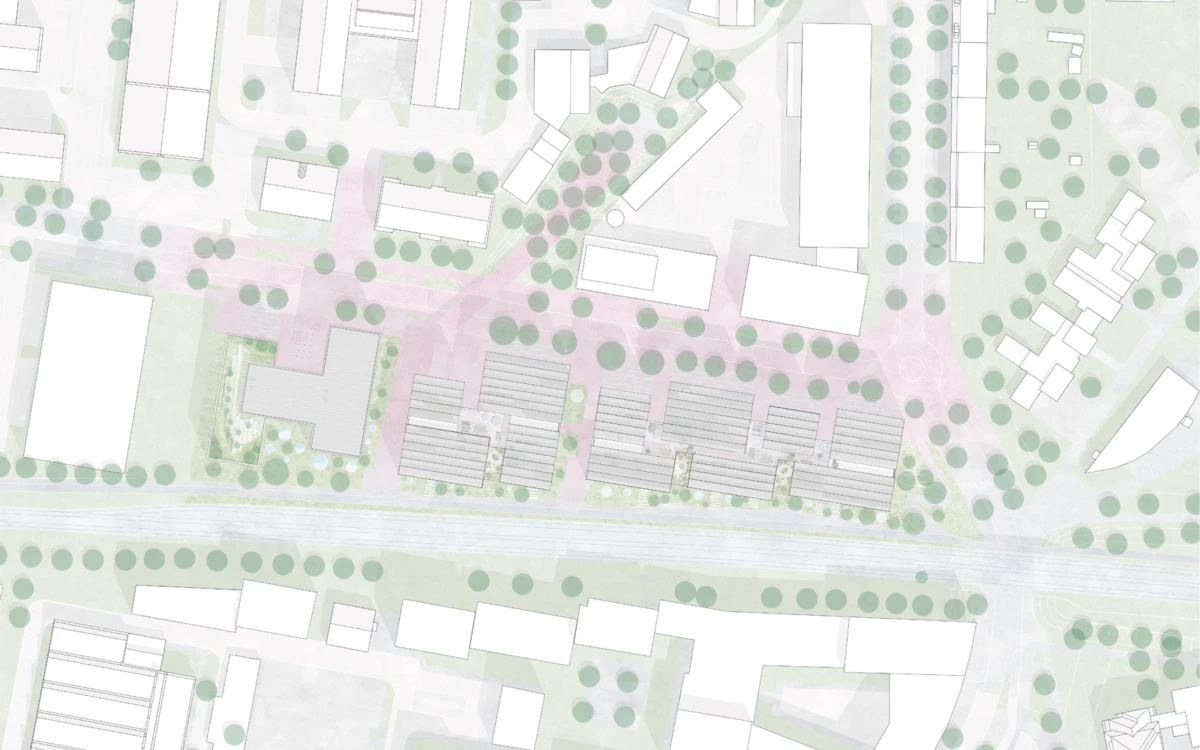

site plan

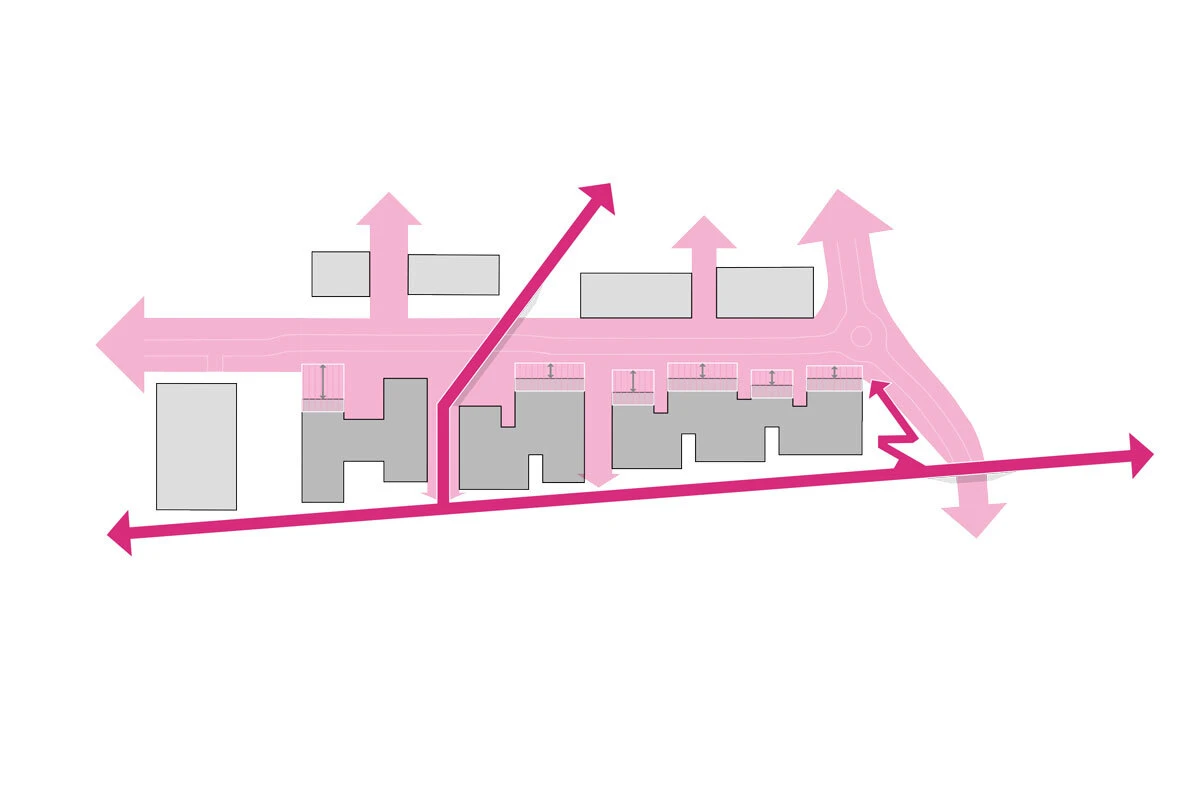

shared space

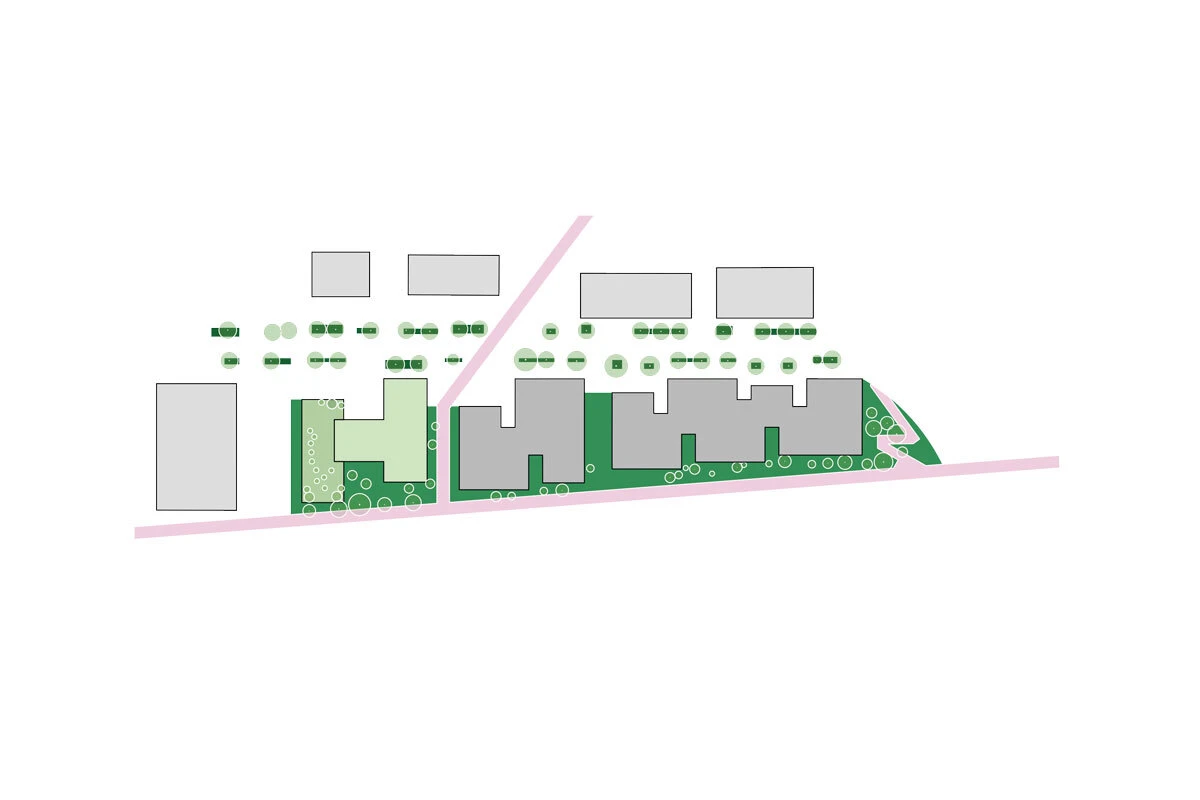

green area

Visualization
Ultramarine

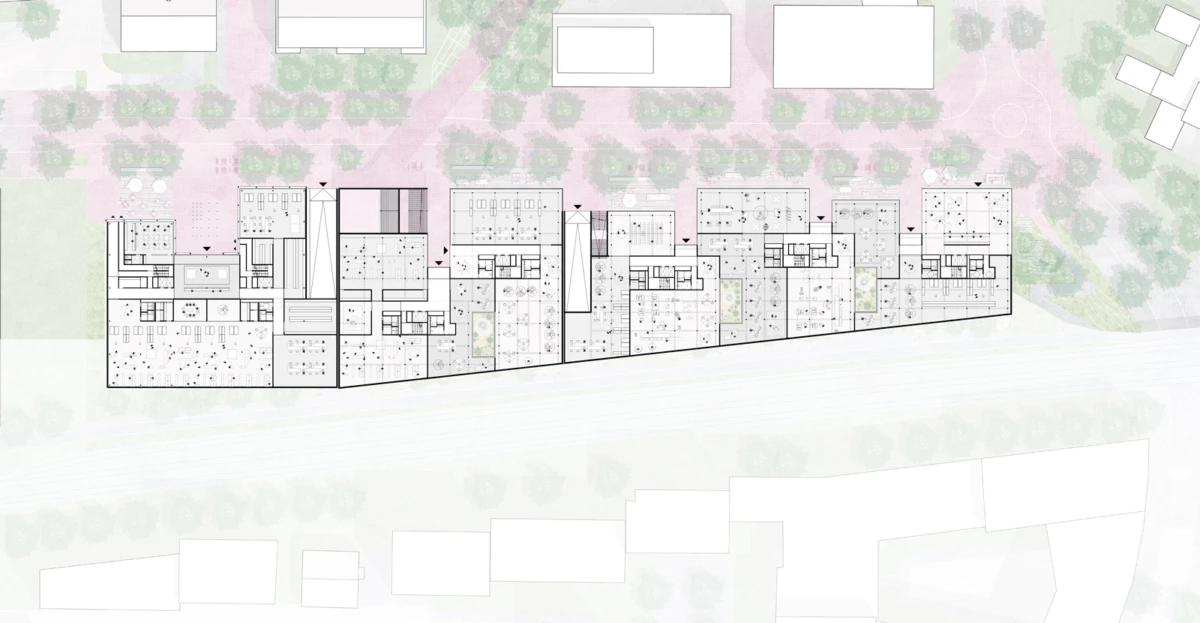

491 dmaa Gasstrasse plan level 00

floor plan level 00

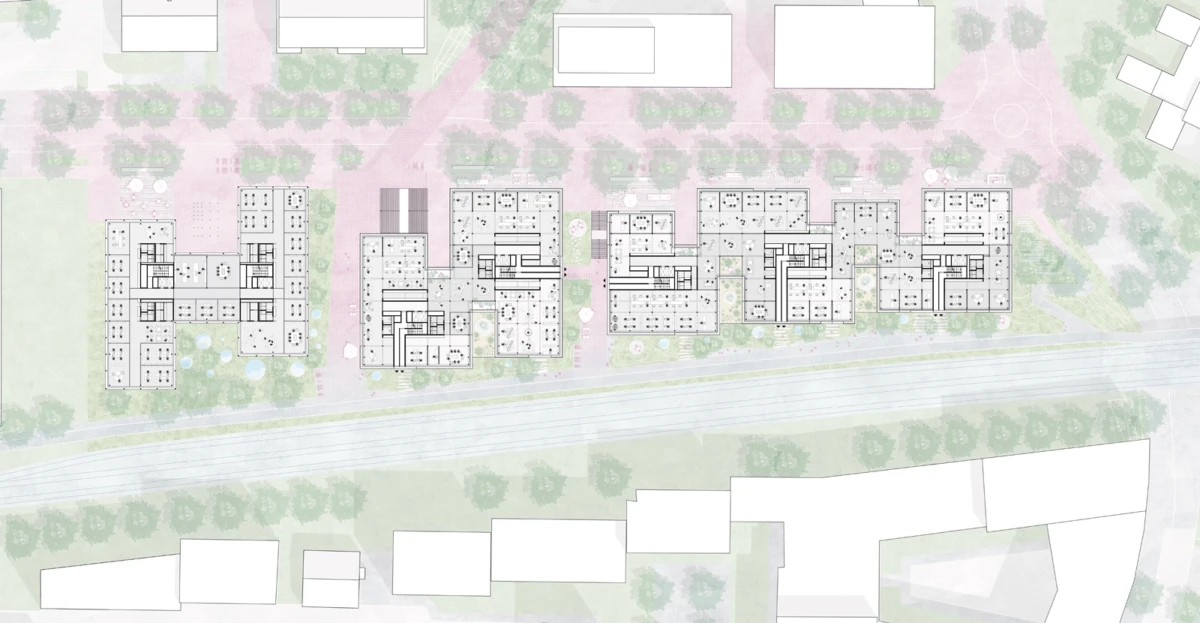

491 dmaa Gasstrasse plan level 01

floor plan level 01

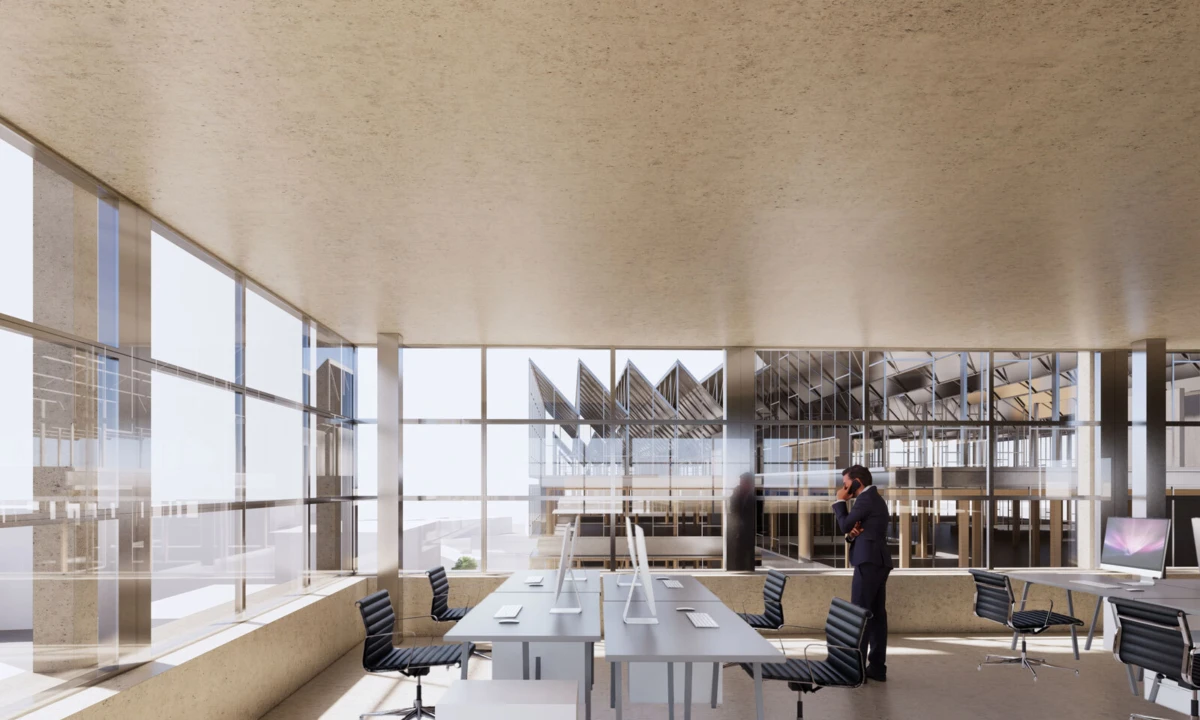

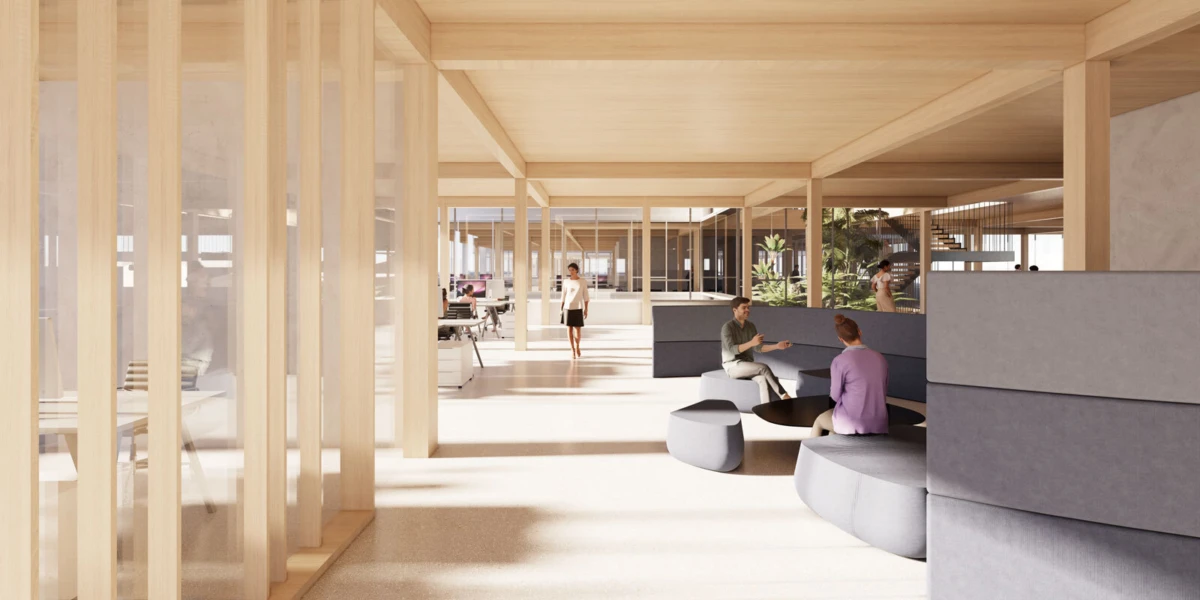

491 dmaa vis 11 A1 office space

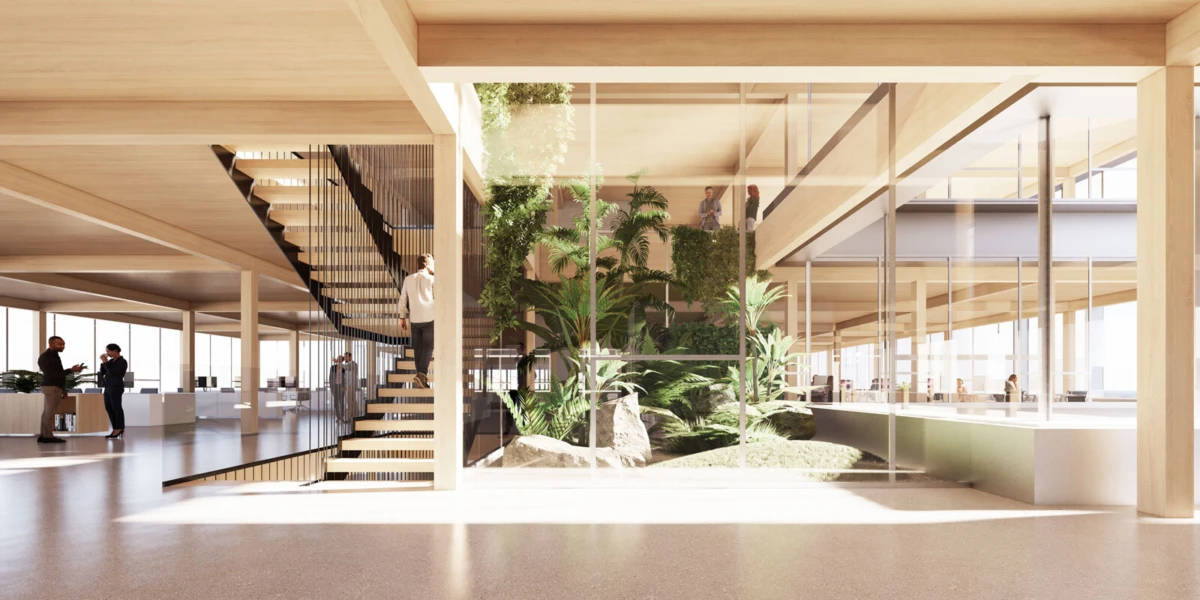

491 dmaa vis 13 A1 forum

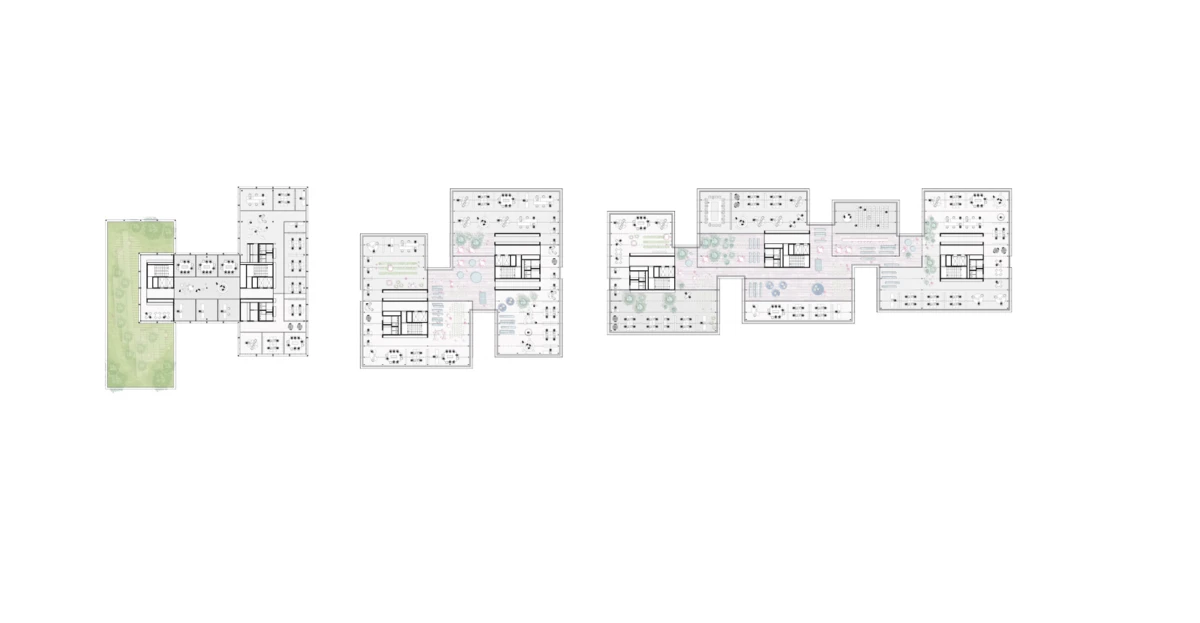

floor plan level 06

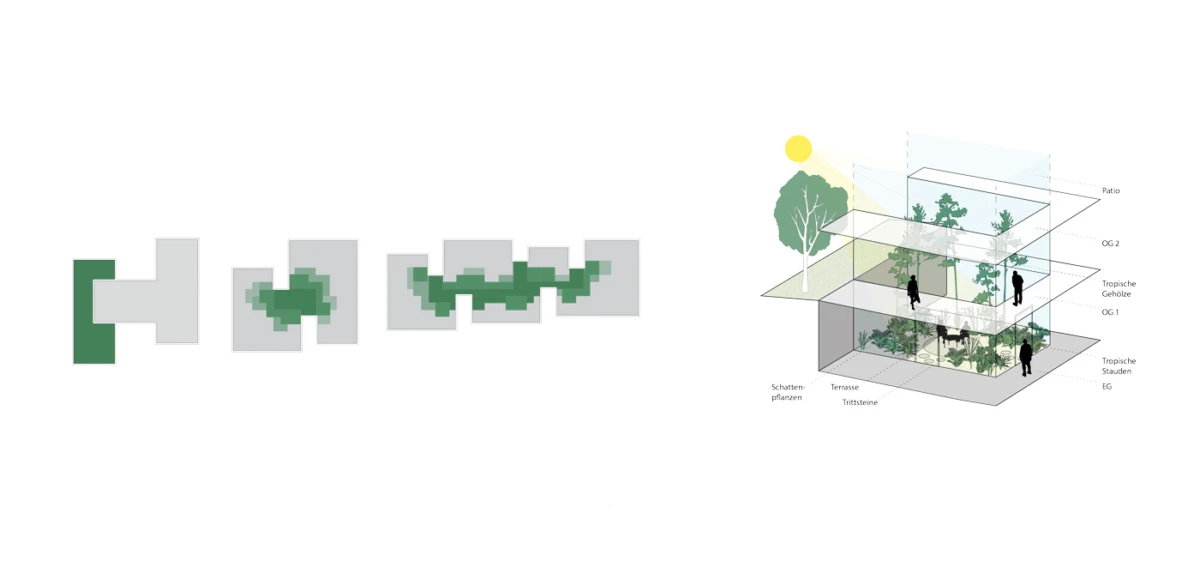

green area roof
green oasis
(Rabe Landschaftsarchitekten)

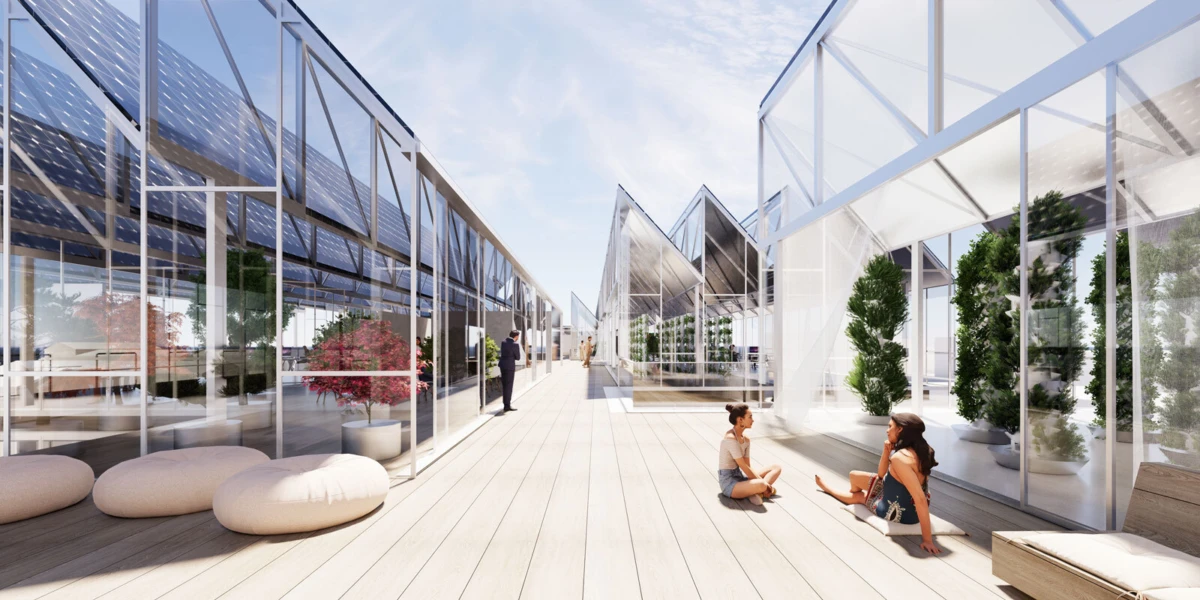

491 dmaa vis 14 A1 roof level

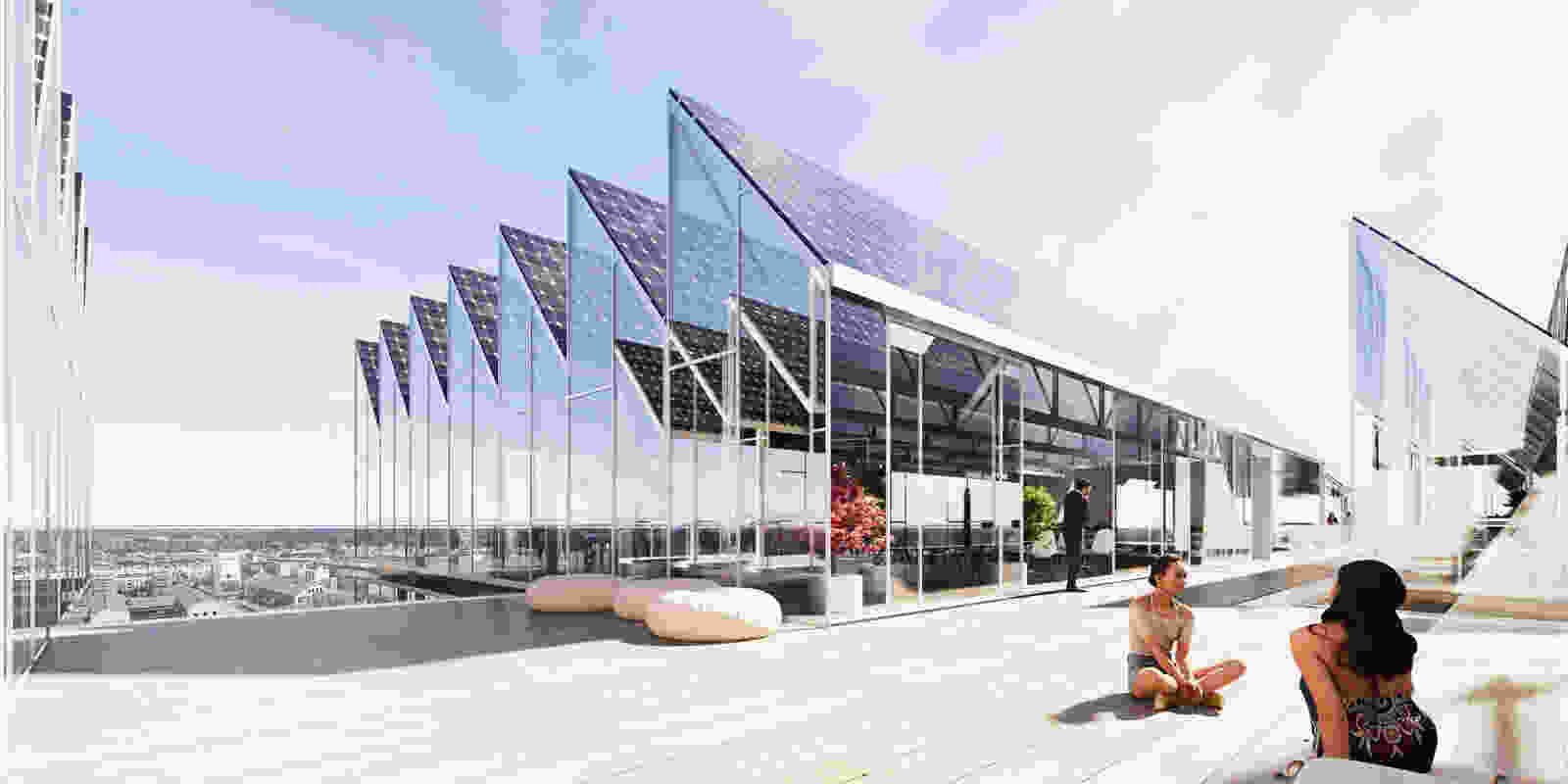

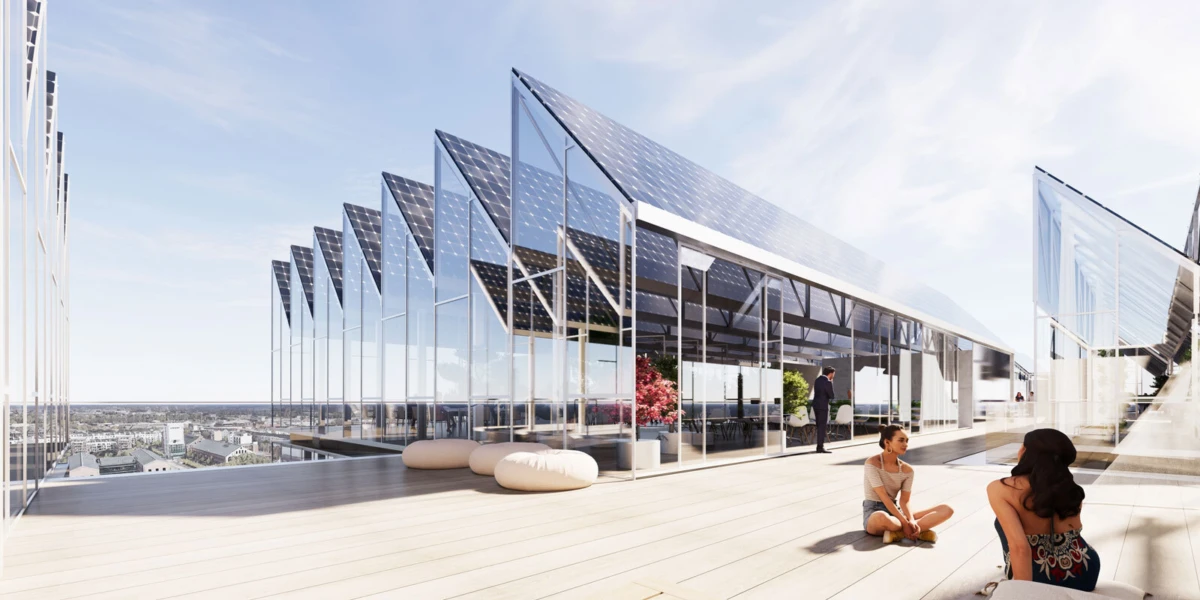

491 dmaa vis 15 A1 roof level

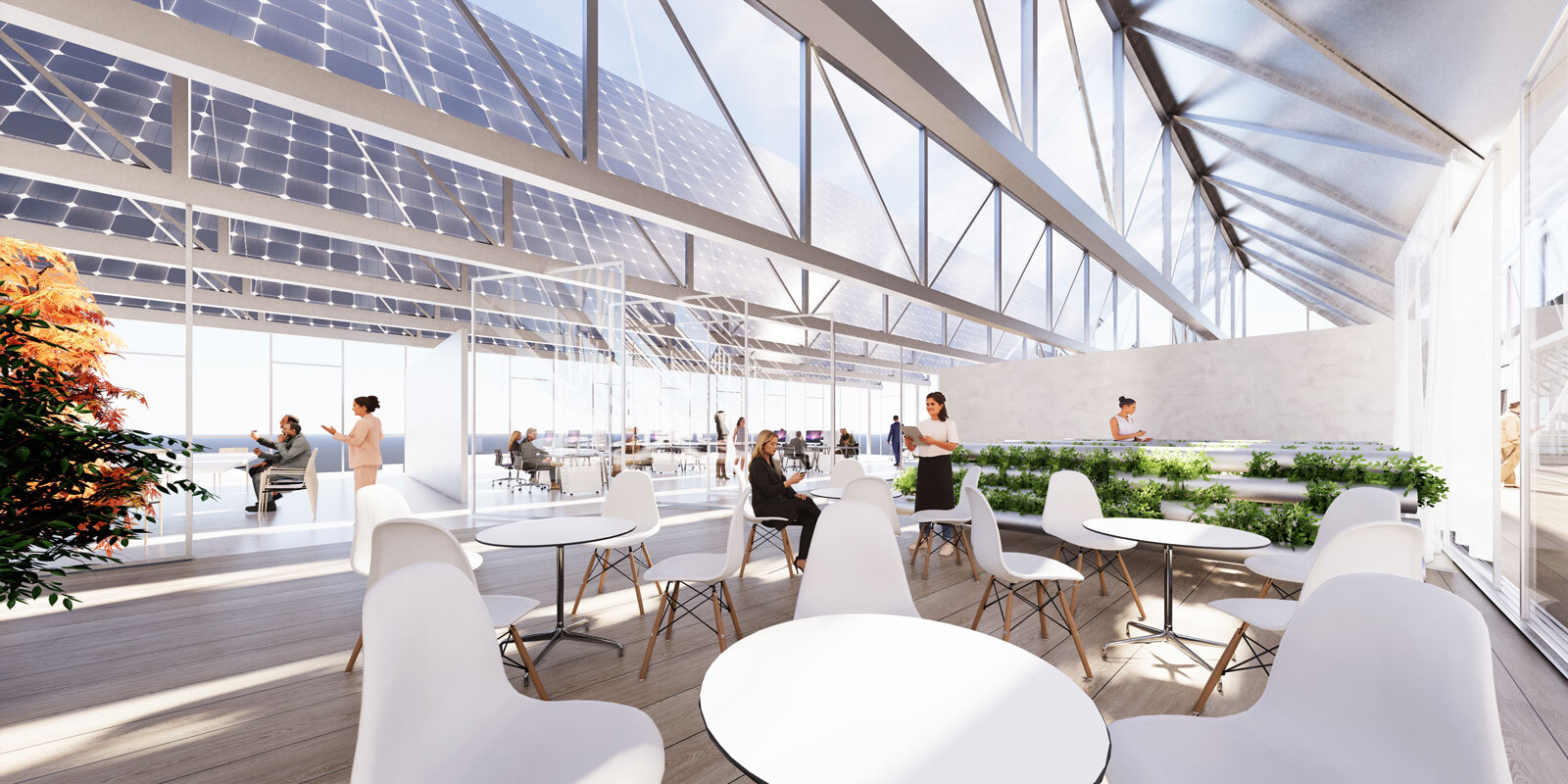

491 dmaa vis 16 A1 roof level

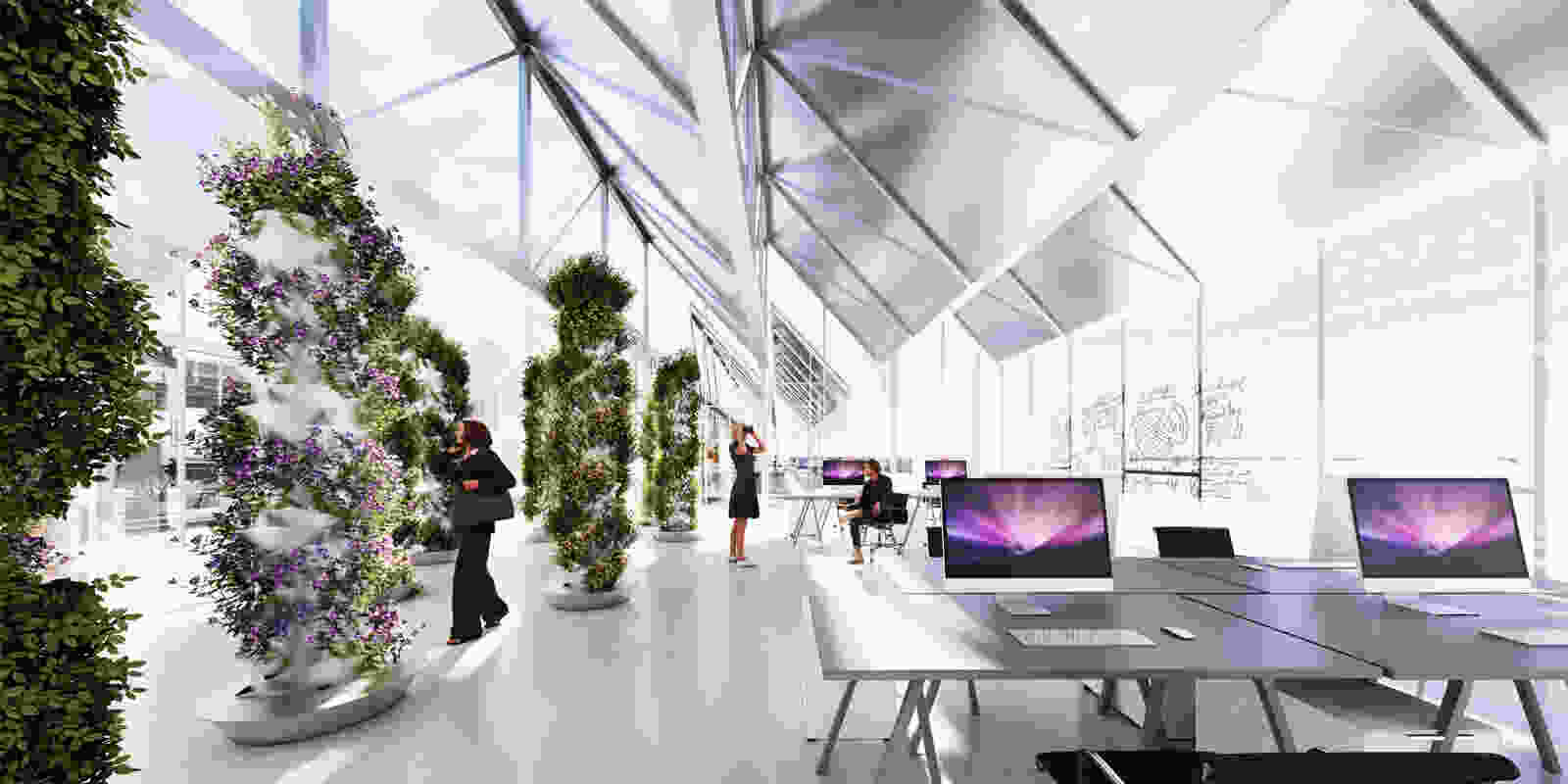

491 dmaa vis 17 A1 roof level

circular flow

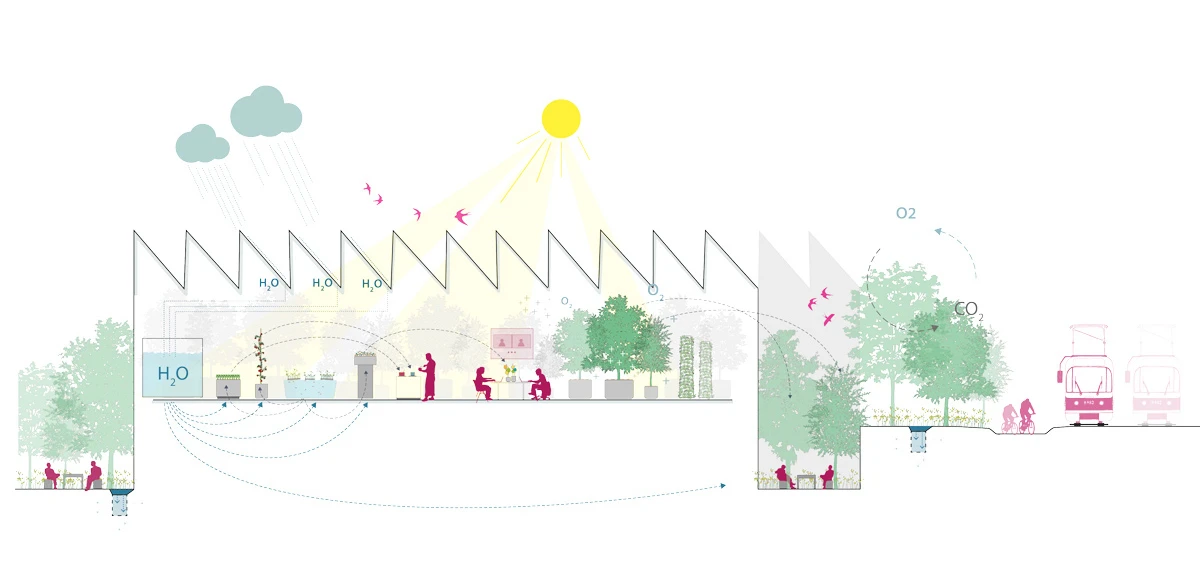

sustainability
(Rabe Landschaftsarchitekten)

Visualization
Ultramarine

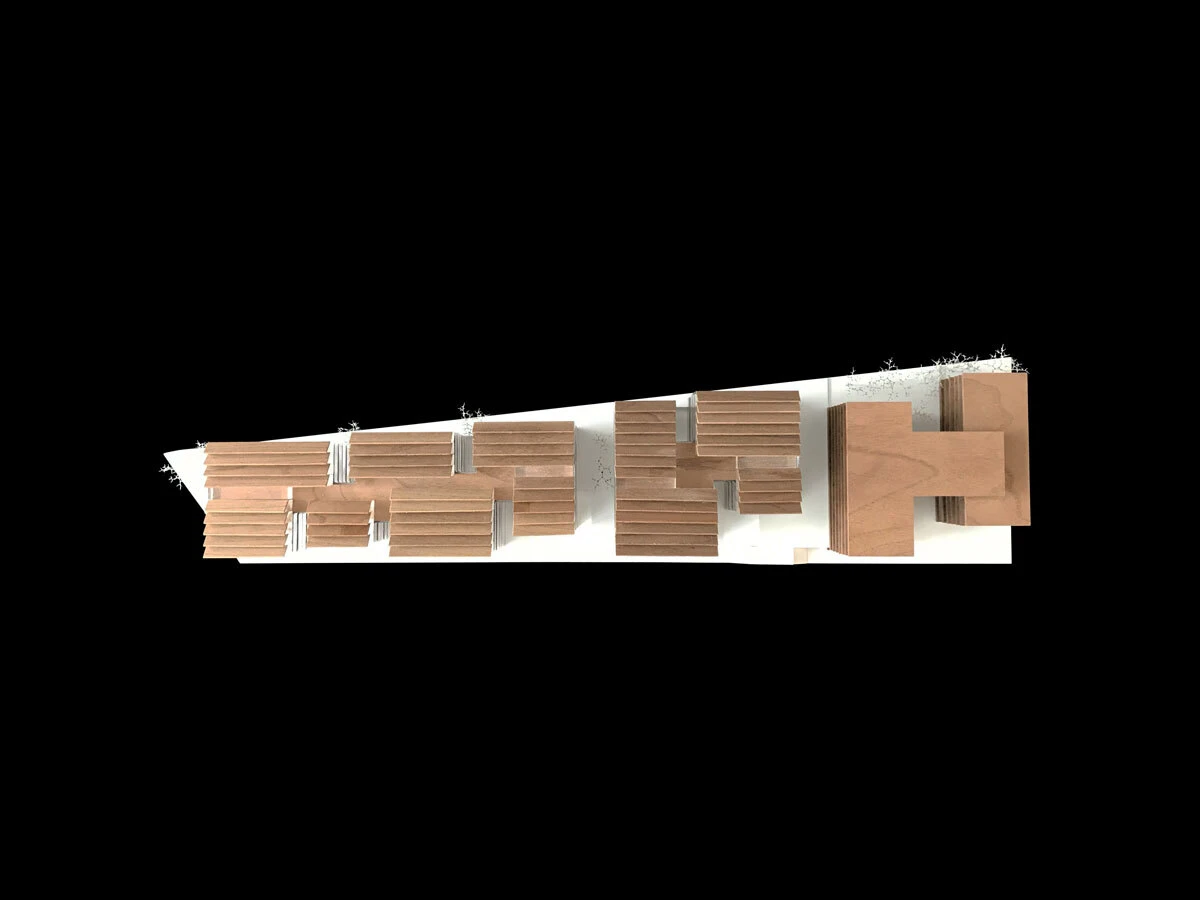

491 dmaa Gasstrasse m0874

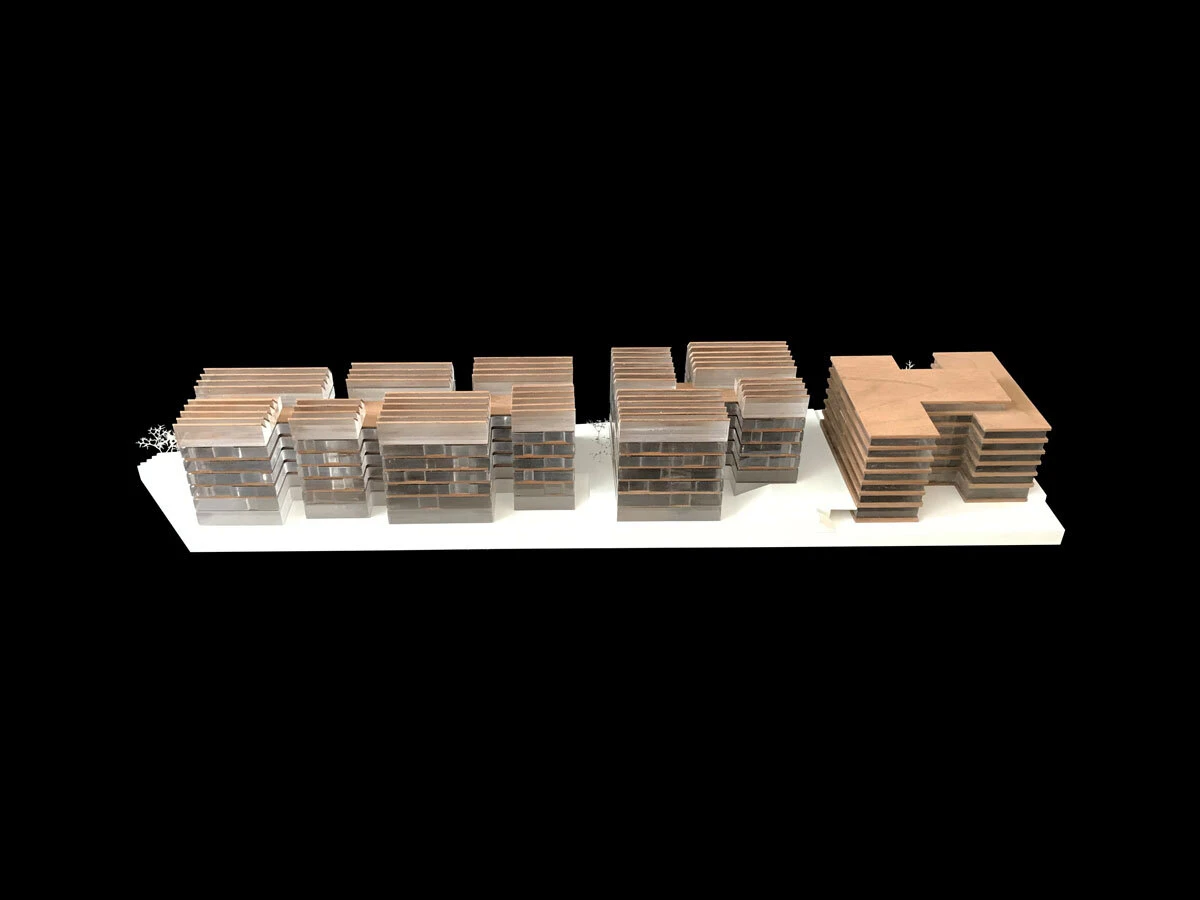

491 dmaa Gasstrasse m0878

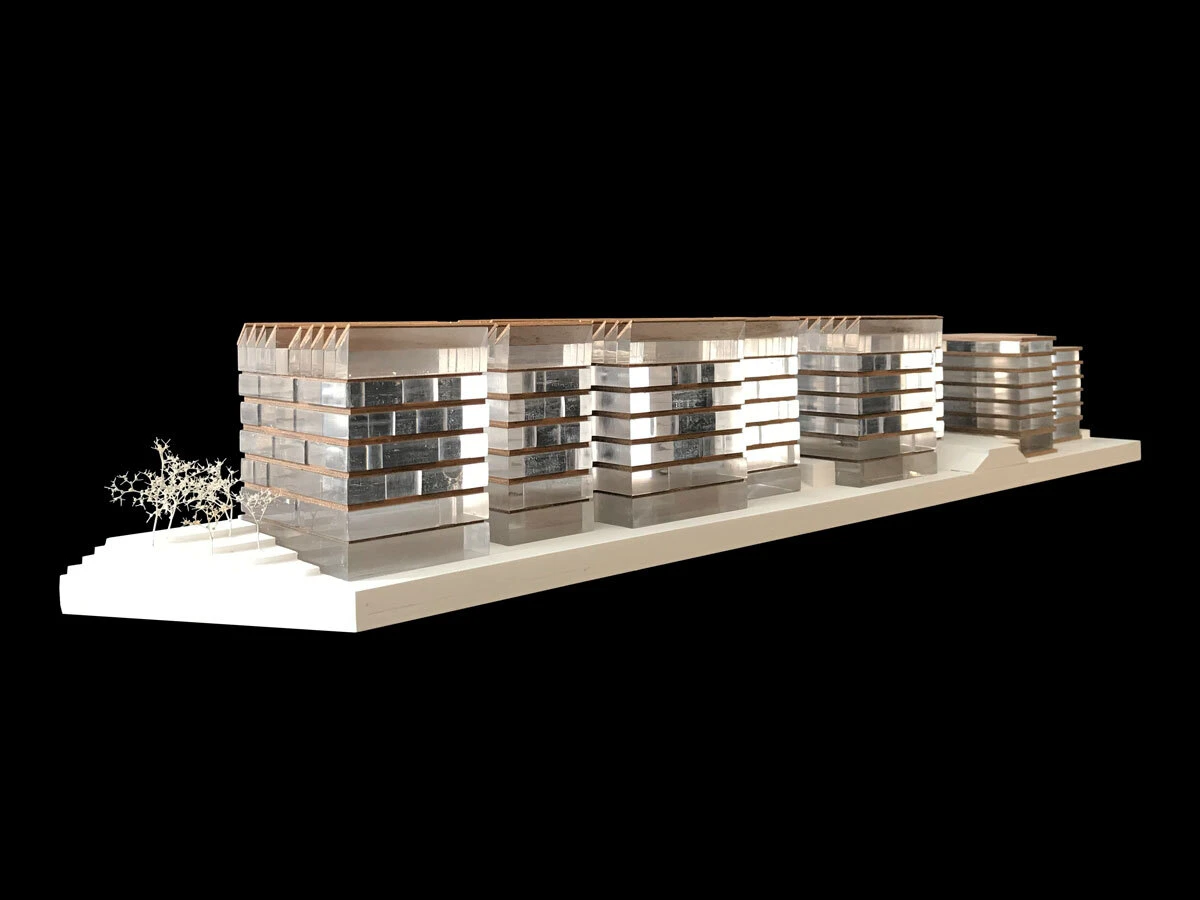

491 dmaa Gasstrasse m0898

Modellart
Michael Eisenkölbl
