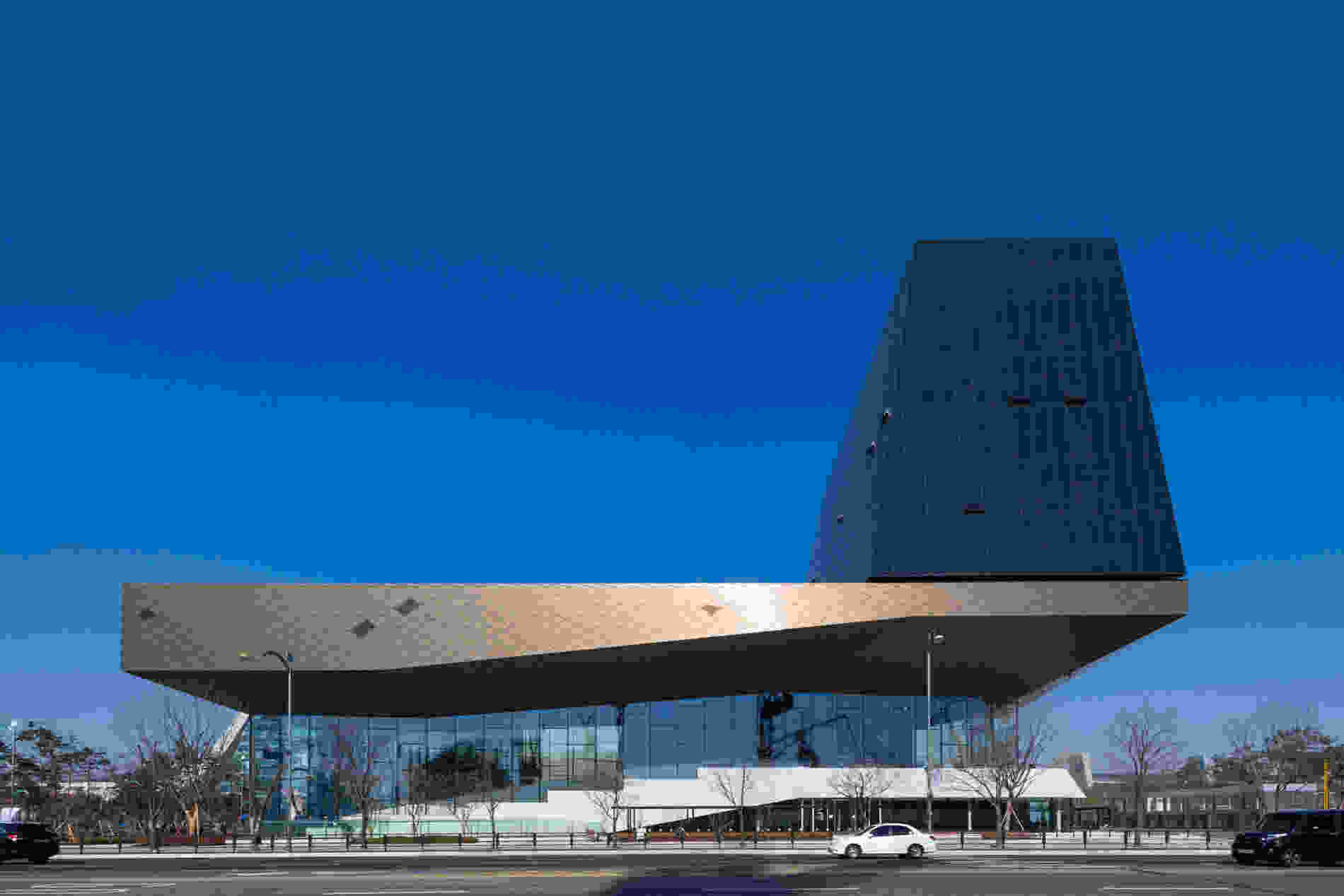

Contemporary building with a cantilevered metal overhang and a tall dark glass tower, along a glass-front facade; street with leafless trees and cars.
Hyundai Motorstudio Goyang
South Korea
  • Cultural
  • Mixed Use
  • Office
  • Built

Hyundai’s “Modern Premium” strategy – the concern’s definition of quality encompassing technology, functionality, design, comfort and sustainability – formed the basis for an invited architectural competition to find a correspondingly comprehensive design concept, which could be simultaneously applied to all of Hyundai’s spatially very diverse locations.

DMAA’s competition entry addressed all key aspects of “Modern Premium” and formulated these as titles, hypotheses and arguments. The central themes and content of the winning concept were subsequently incorporated into the extensive “Global Dealership Space Identity” (GDSI) Manual, which presents both the basic design idea for Hyundai’s dealerships and the flexibility with which it can be implemented in detail. Hyundai showrooms worldwide have been adapted or newly built according to these guidelines since 2014.

The new Hyundai Motorstudio Goyang in Seoul has also been realised in line with the GDSI system. The concept of the building applies the Manual’s modular principle with concisely defined characteristic elements: Landscape, Vertical Green and Shaped Sky. These three design elements dominate the space of the Motor Studio without interfering with the panoramic view into the vast spatial unit, which is defined by simple and clear structure of openness and transparency, where automobiles are presented from different perspectives – similar to an urban or natural landscape, where visitors can wander freely.

The uniqueness of the building – and at the same time the main challenge of its design – lies in its ambition to unite a multitude of functions – Sales, Brand Center, Automotive Theme Park, Offices and Services – in one structure. These functions are positioned in horizontal areas, one above the other, and are connected through the vertical design elements. The aim was to create a complete and integral experience of the brand Hyundai for the customers and to let them fully enjoy the high quality of service offered by the company. Symbolically, the experience represents a journey everyone has imagined but never took, into a space, which stimulates one’s imagination – a journey of a car, a journey to a car.

Address
Goyang
South Korea

Competition
2011 [1.prize]

Start of planning
2012

Start of construction
05/2013

Completion
02/2017

Floor area
63.860 m²

Gross surface area
63.860 m²

Site area
16.719 m²

Built-up area
9.266 m²

Height
49,4 m

Number of levels
14

Number of basements
5

Managing Partner
Martin Josst

Project manager
Sebastian Brunke

Project team
Michael Lohmann, Diogo Teixeira, Christian Schrepfer, Gerhard Gölles, Win Man; Christian Groß, Florian Schafschetzy, Bogdan Hambasan, Toni Nachev

CONSULTANTS
Construction management
Hyundai Architects & Engineers Associates

Project controlling
Hyundai Architects & Engineers Associates

General Contractor
Hyundai Engineering & Construction

Executive planning
DMP / Hyundai Architects & Engineers Associates

Structural engineering
Bollinger + Grohmann Ingenieure / Dongyang

Façade
Bollinger+Grohmann Ingenieure / The Summit Façade

Exhibition Planner
Atelier Brückner / GL

Lighting design
Speirs + Major / Bitzro

Landscape
Topotek 1 / Landscape Workshop SAII

Energy Design
Energy Design Cody / EAN

HVAC
HIMEC

Electrical Installations
HITEC

Fire Controlling
NAMDO

Exhibition Controlling
Innocean

Photographers
Katsuhisa Kida, Raphael Olivier

Hyundai Motorstudio Goyang logo in bold black text on white background.
Blank white image with no visible subject or action.
Ink sketch of a gantry crane on a barge with long booms extended to the left over water.

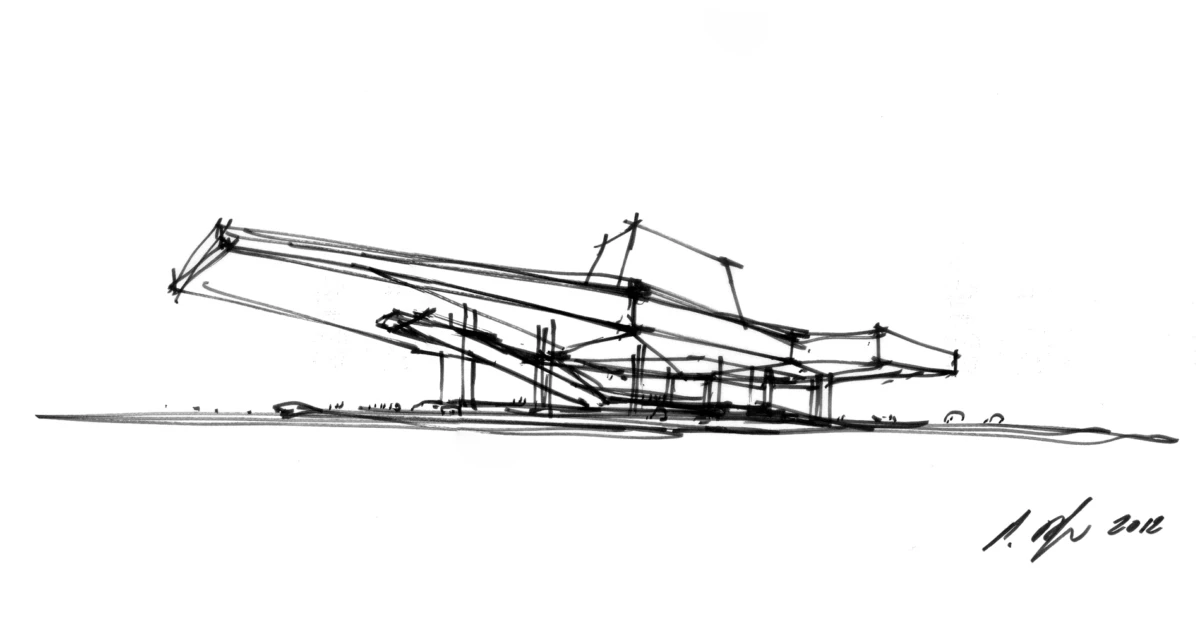

concept sketch

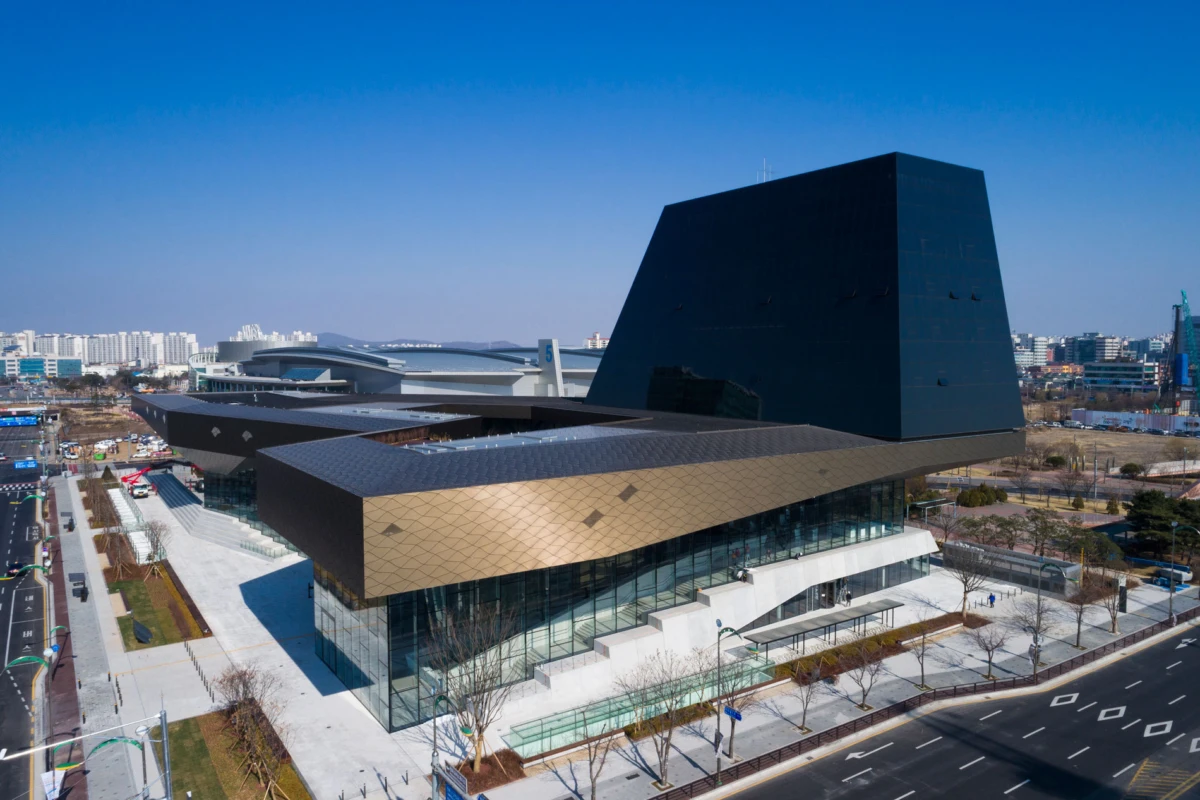

Modern cultural center with gold angular facade and a tall black prism, in an urban cityscape.

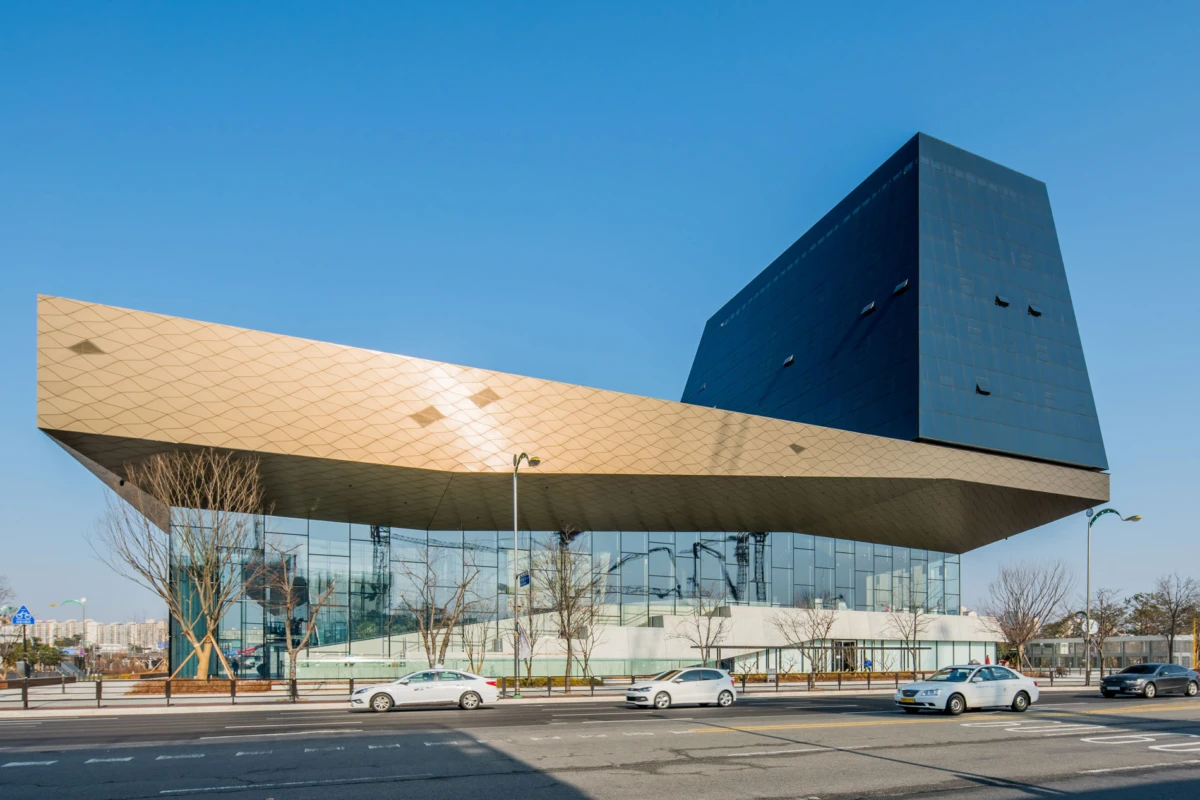

Modern cultural center with glass facade and a beige cantilever, topped by a blue rectangular tower, along a busy city street with cars.

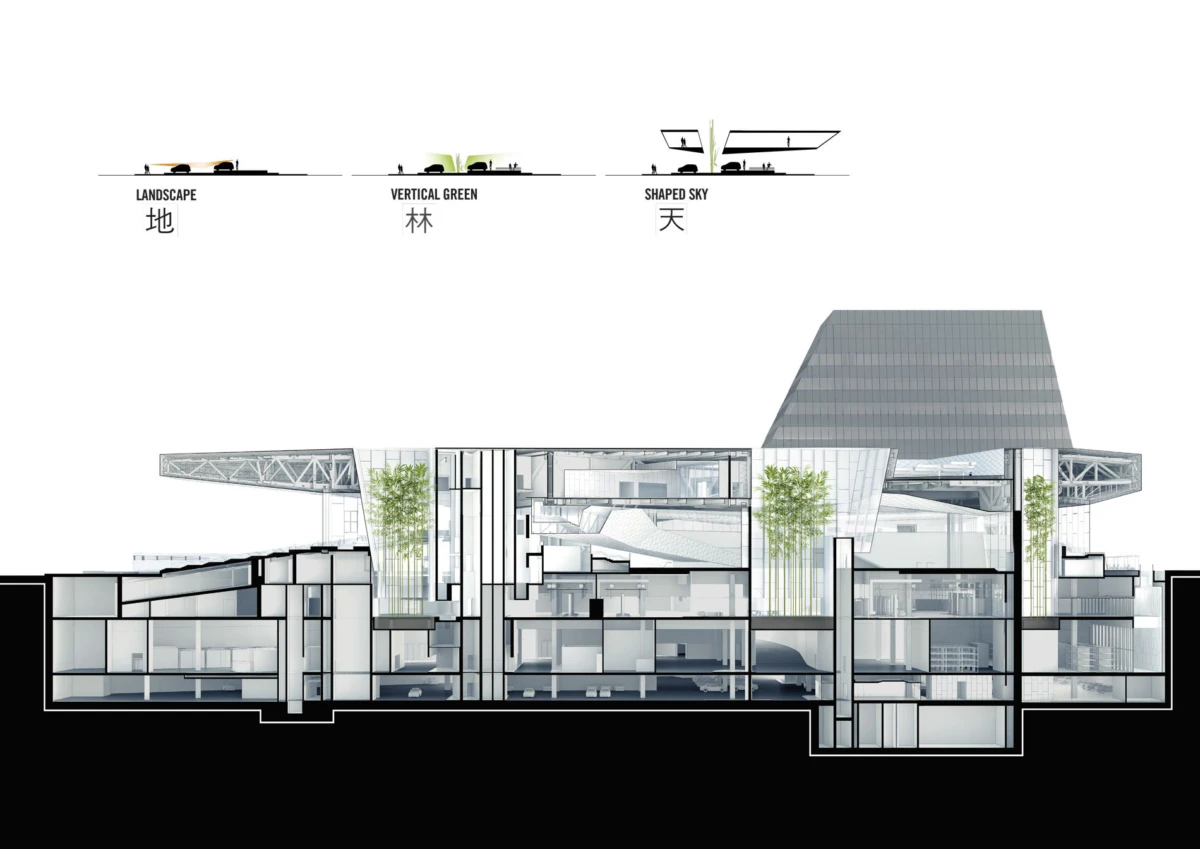

Cross-section of a modern glass building with multiple floors, open atria, and vertical greenery.

section

Three schematic cross-section diagrams titled SHAPED SKY, VERTICAL GREEN, LANDSCAPE, each with a top black bar and linear profile; Chinese characters 天 林 地 beneath.

diagram - core elements

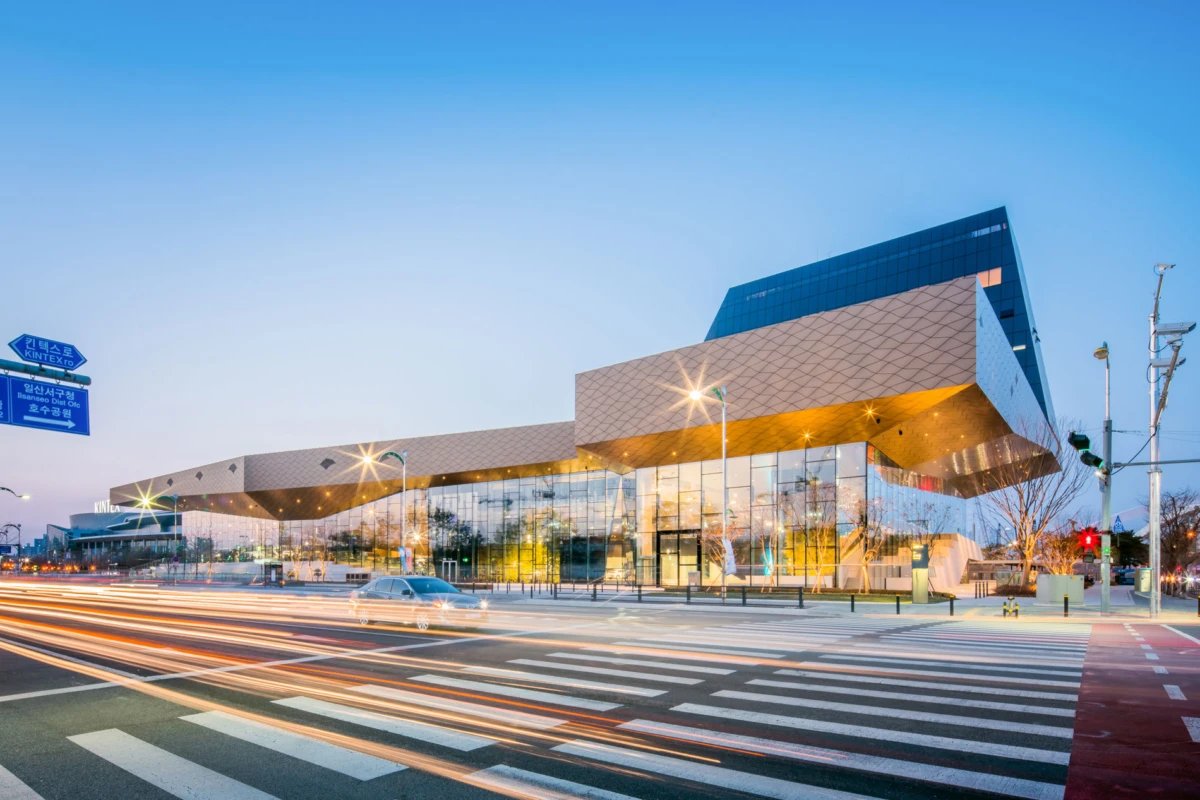

Geometric glass building at a busy intersection; long-exposure car lights streak across the zebra crosswalk.

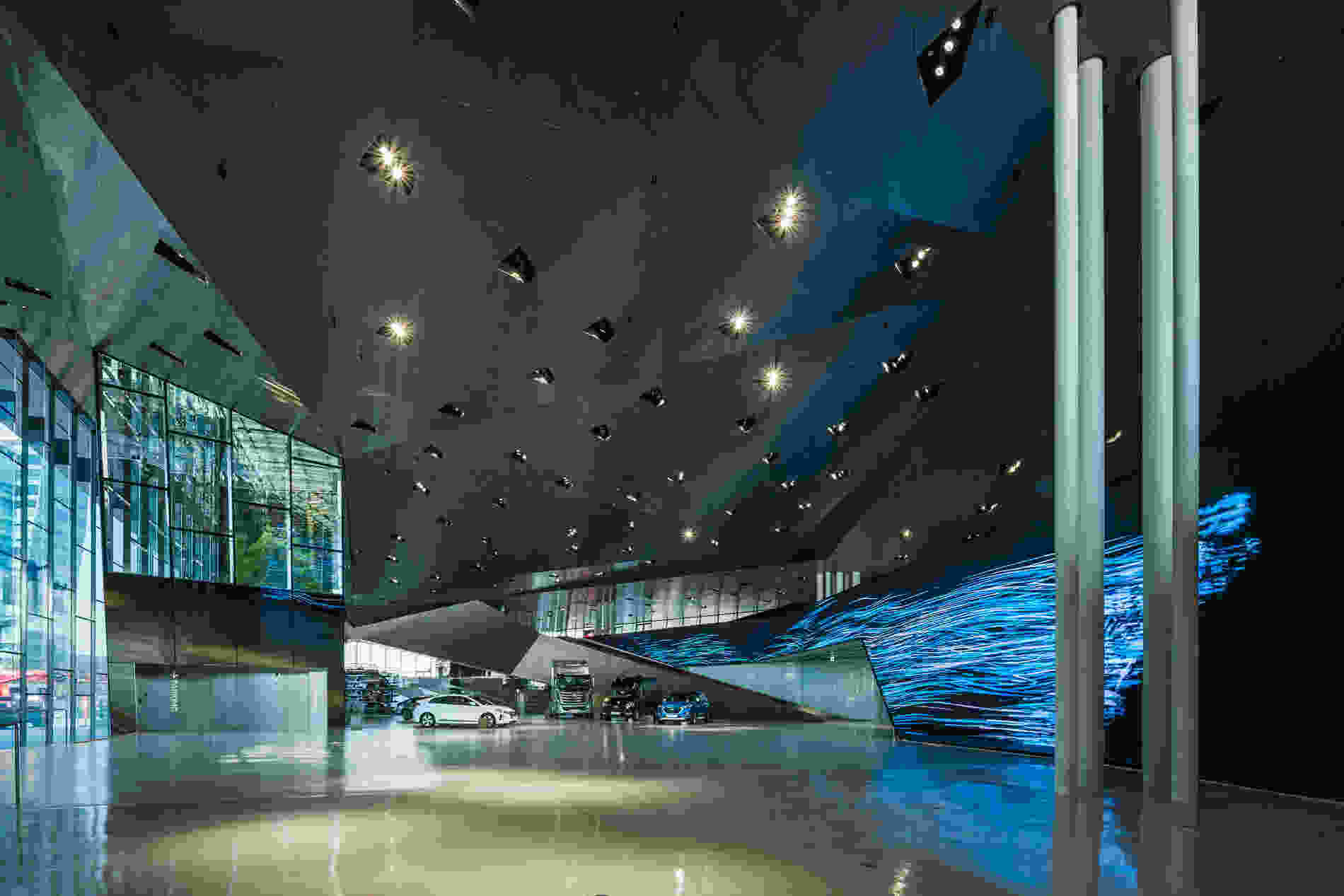

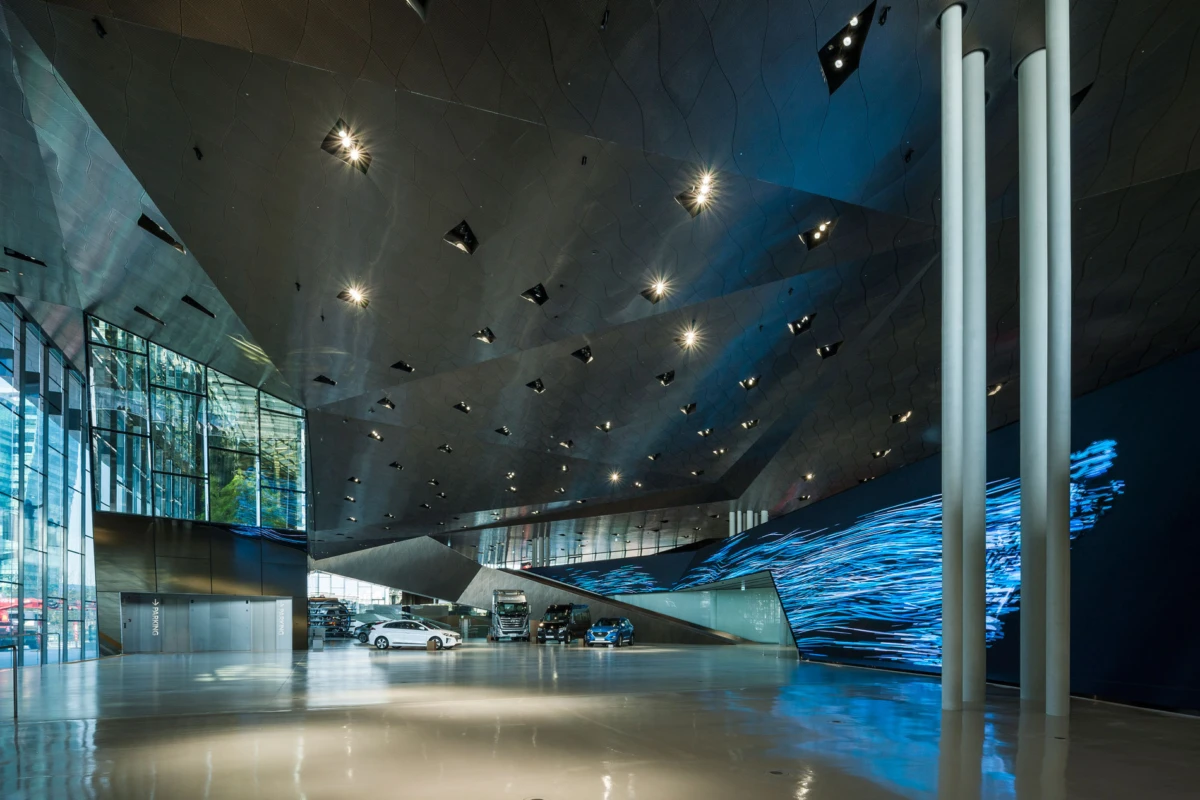

Futuristic car showroom interior with glass walls, glossy floor, angular dark ceiling, and several cars on display beside a blue wave light wall.

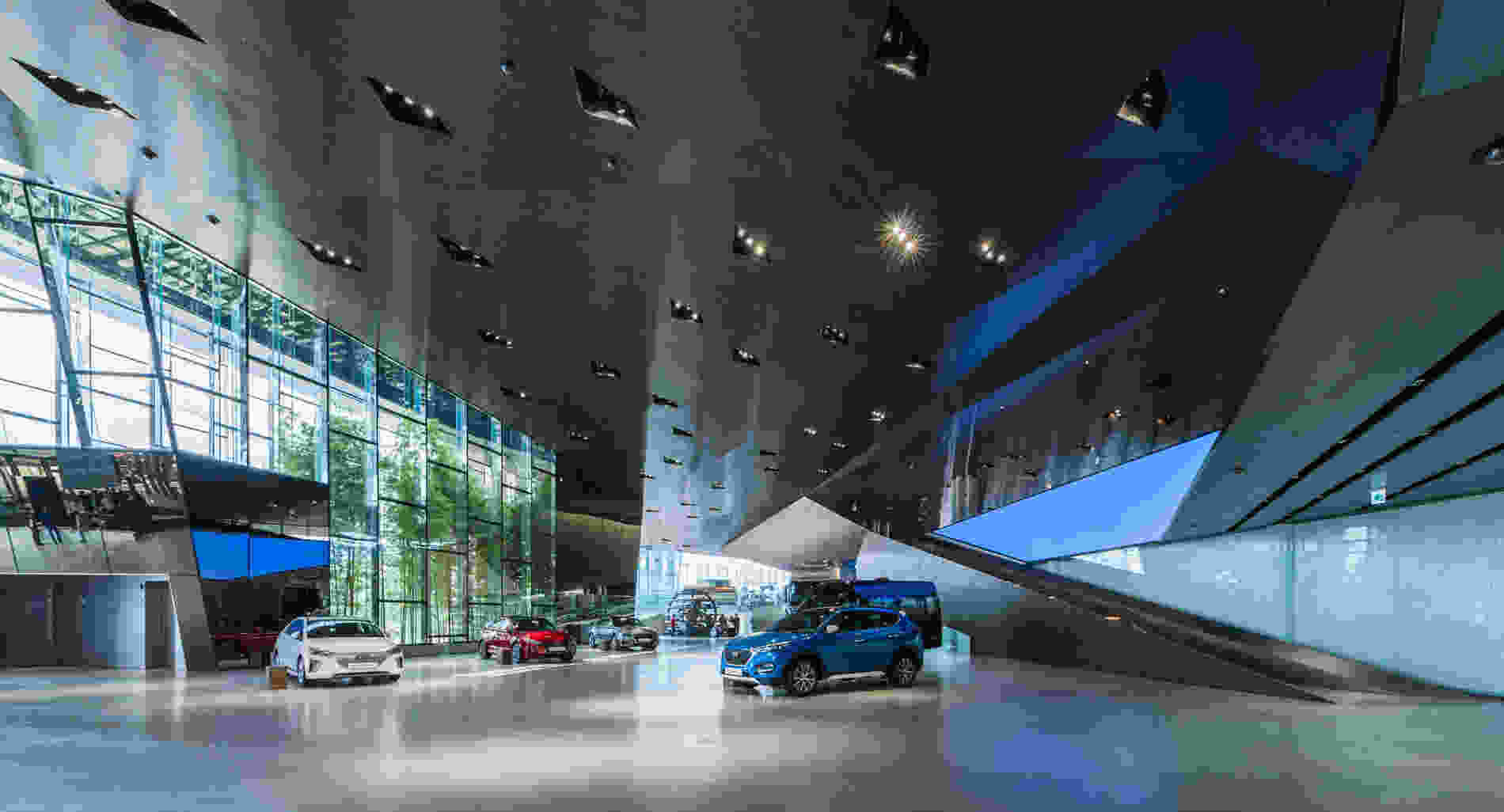

Cars on display inside a modern car showroom with glass walls, a polished floor, and a dark angular ceiling.

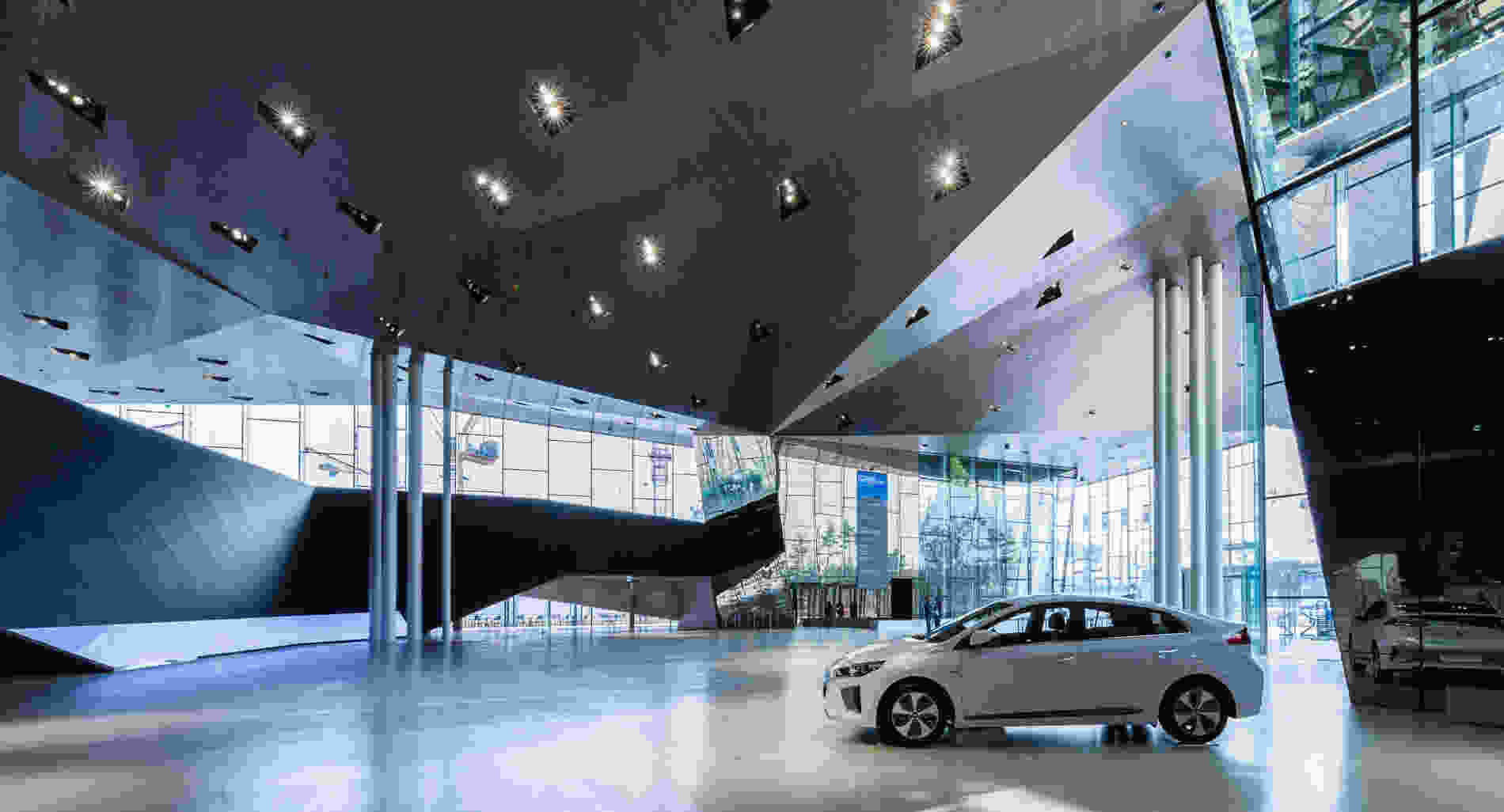

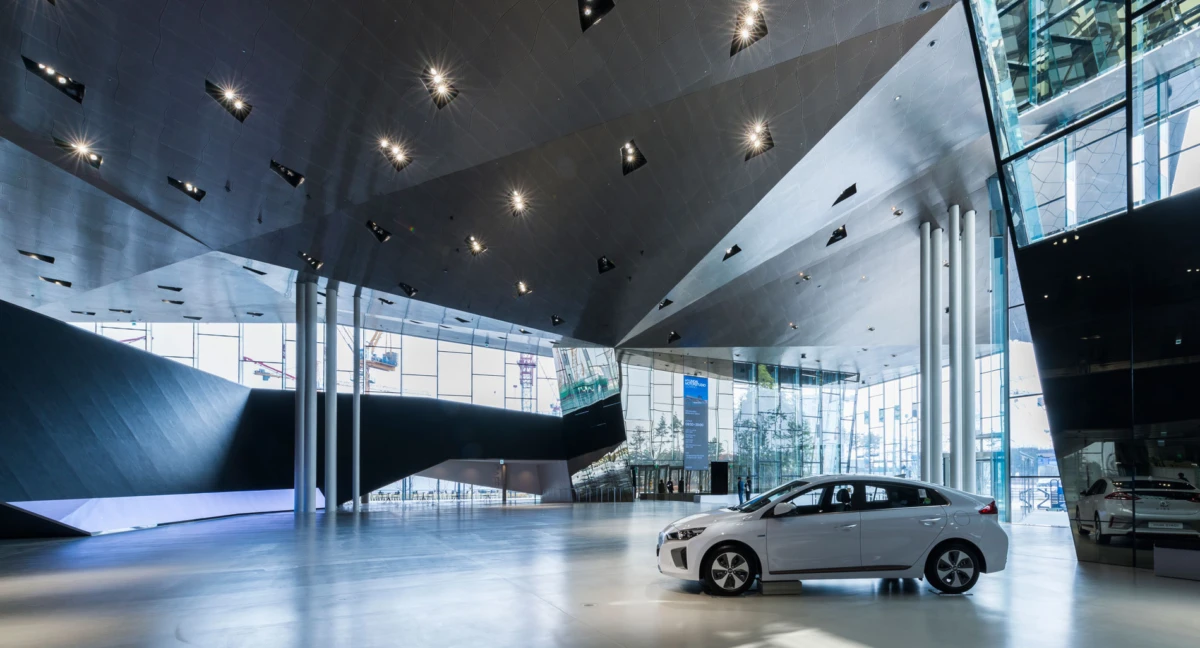

White sedan displayed on a polished showroom floor inside a futuristic automotive showroom with glass walls and an angular metallic ceiling.
Large semi-truck on display with several cars inside a modern, angular automotive showroom.

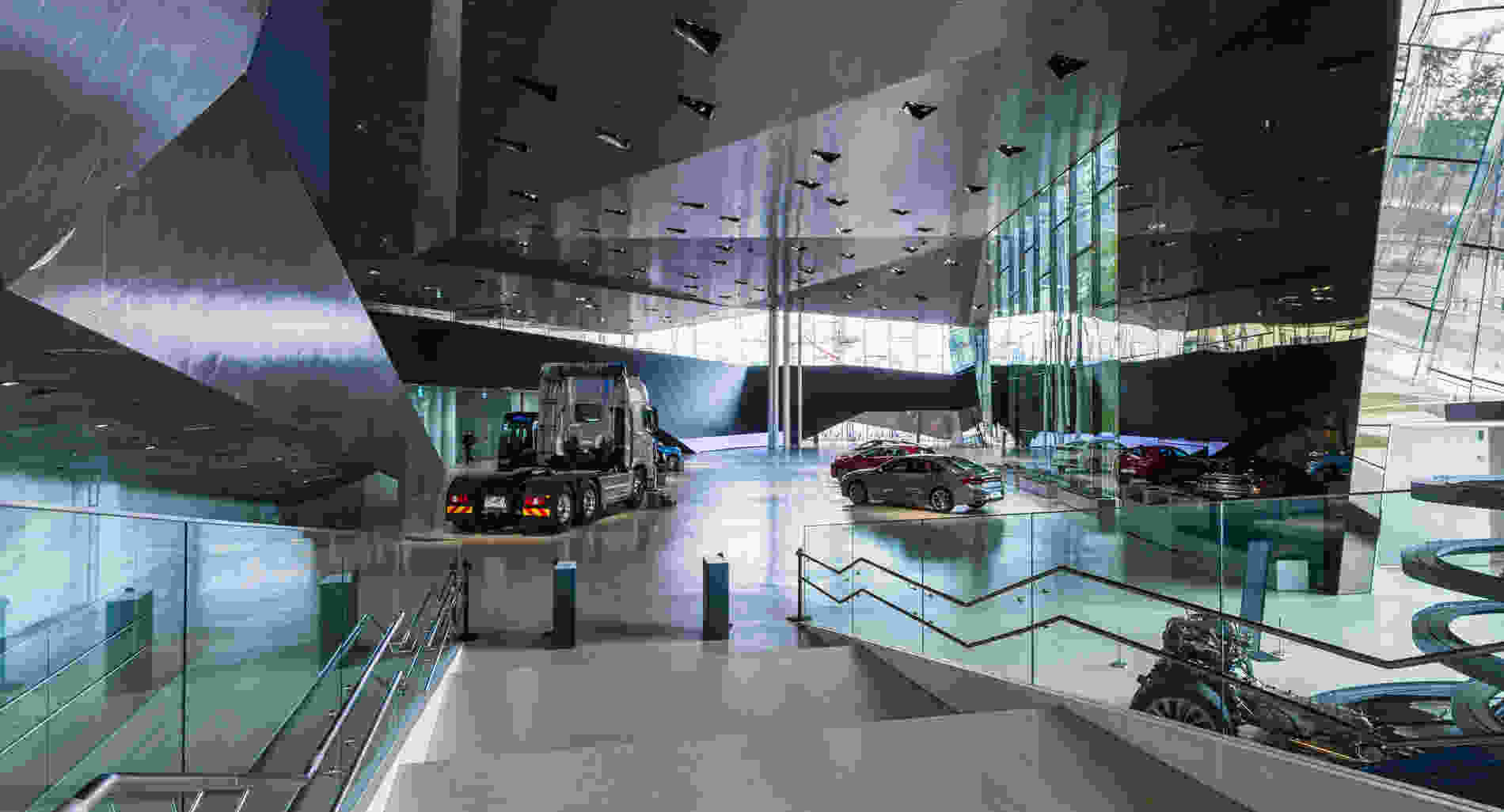

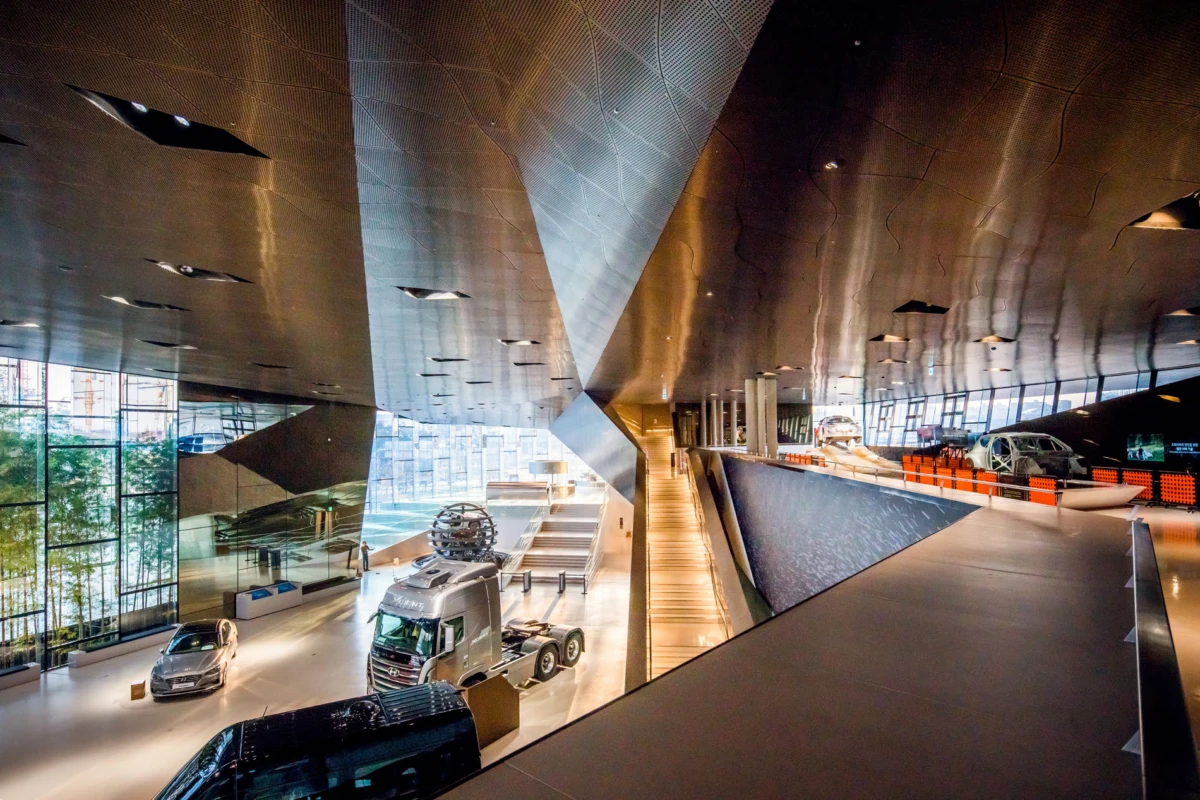

Futuristic automotive showroom interior with a silver semi-truck and several cars on display among glass walls and metal architecture.

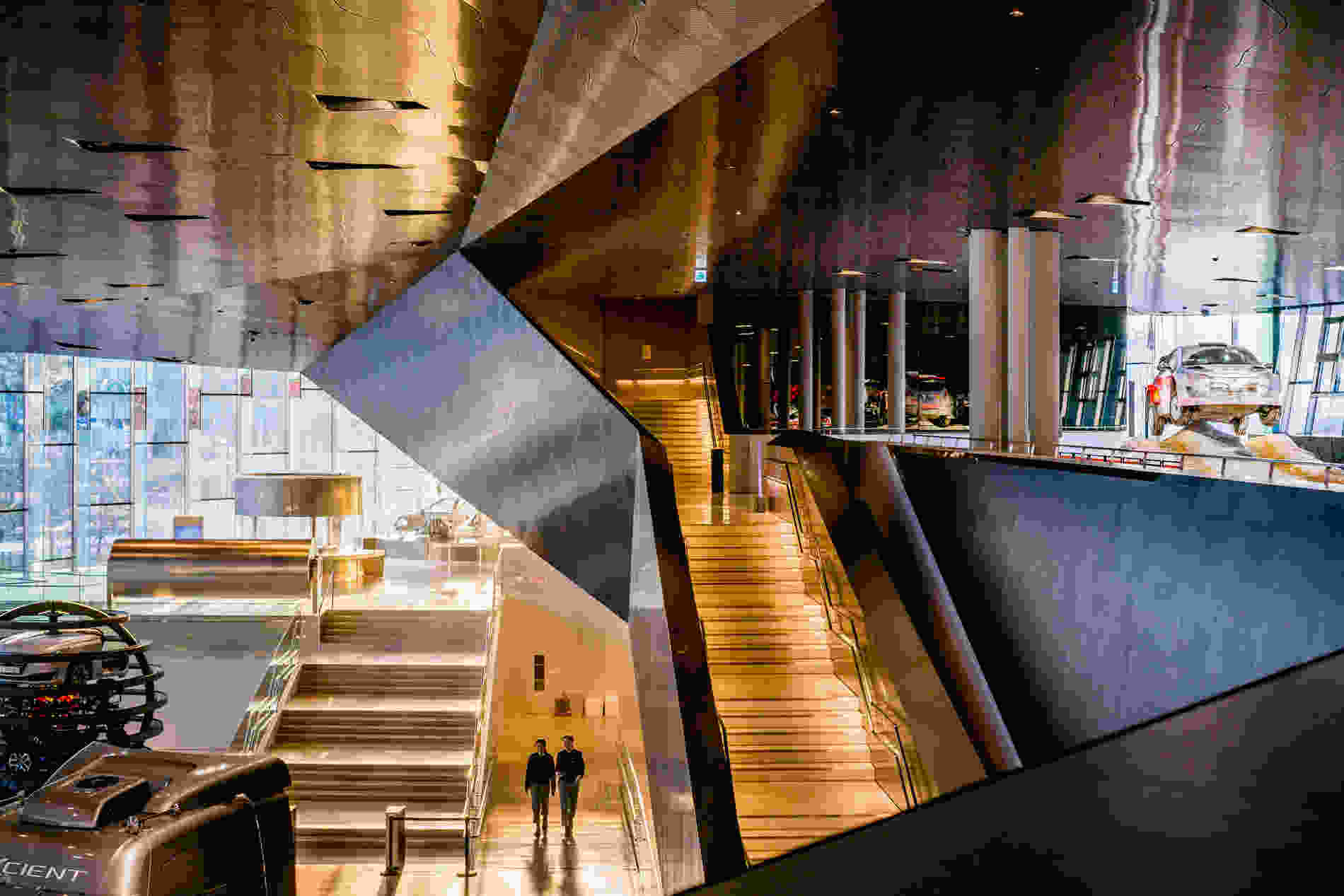

Two individuals walking in a modern car showroom atrium with escalators, steel architecture, and a car on a display platform.

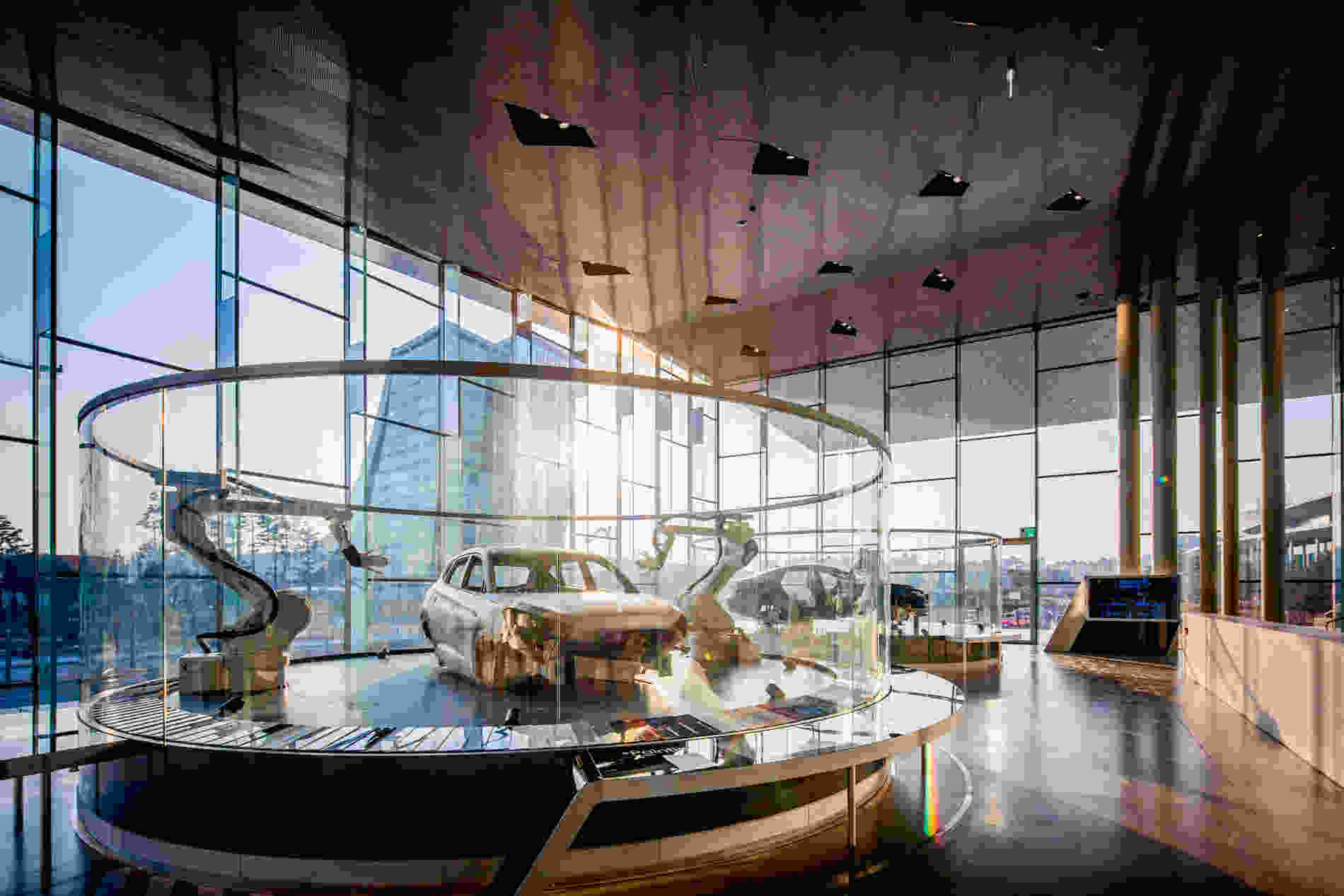

White sedan inside a circular glass enclosure surrounded by robotic arms in a modern car showroom.

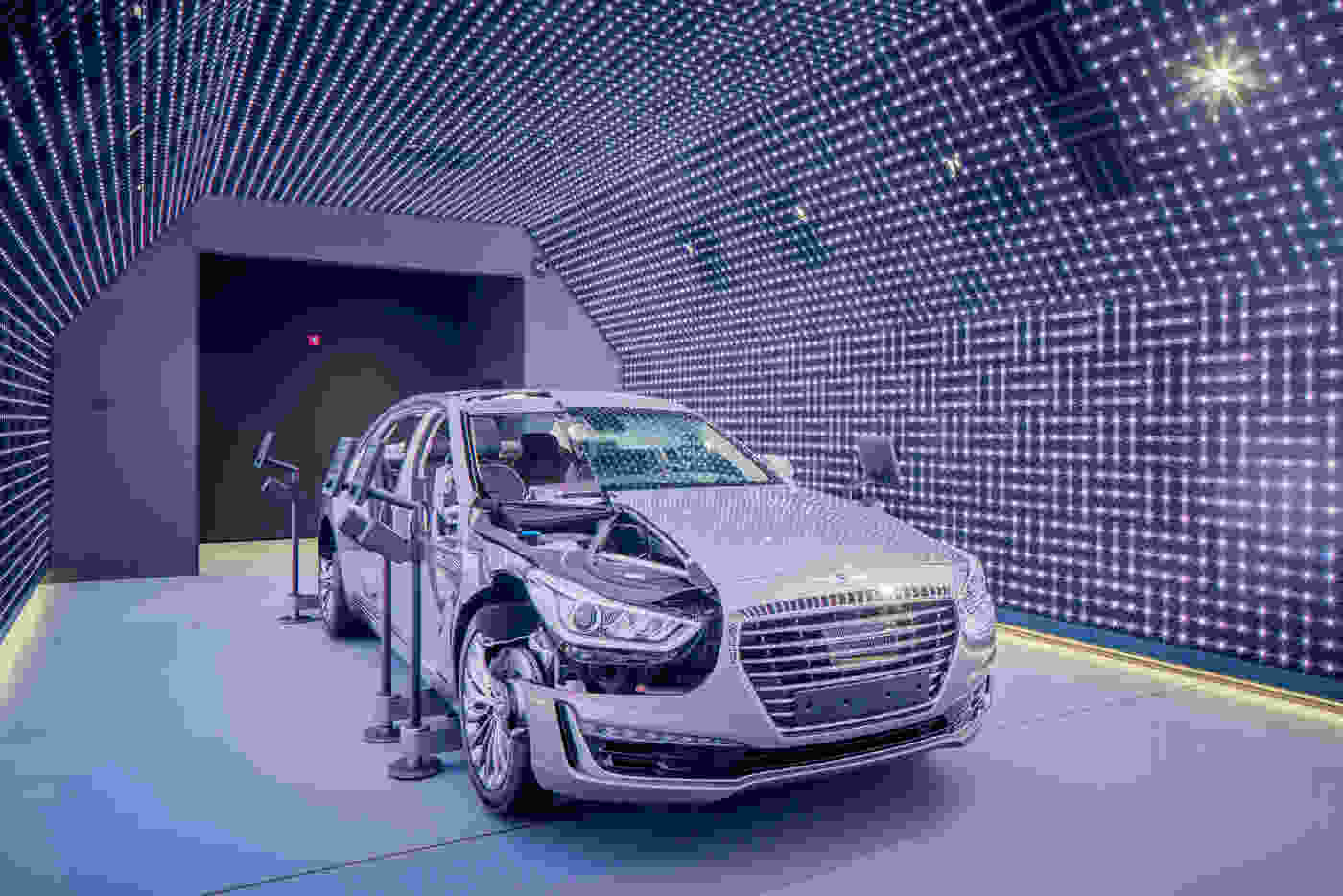

Silver sedan exhibiting front-end damage inside a futuristic LED-lit testing chamber.

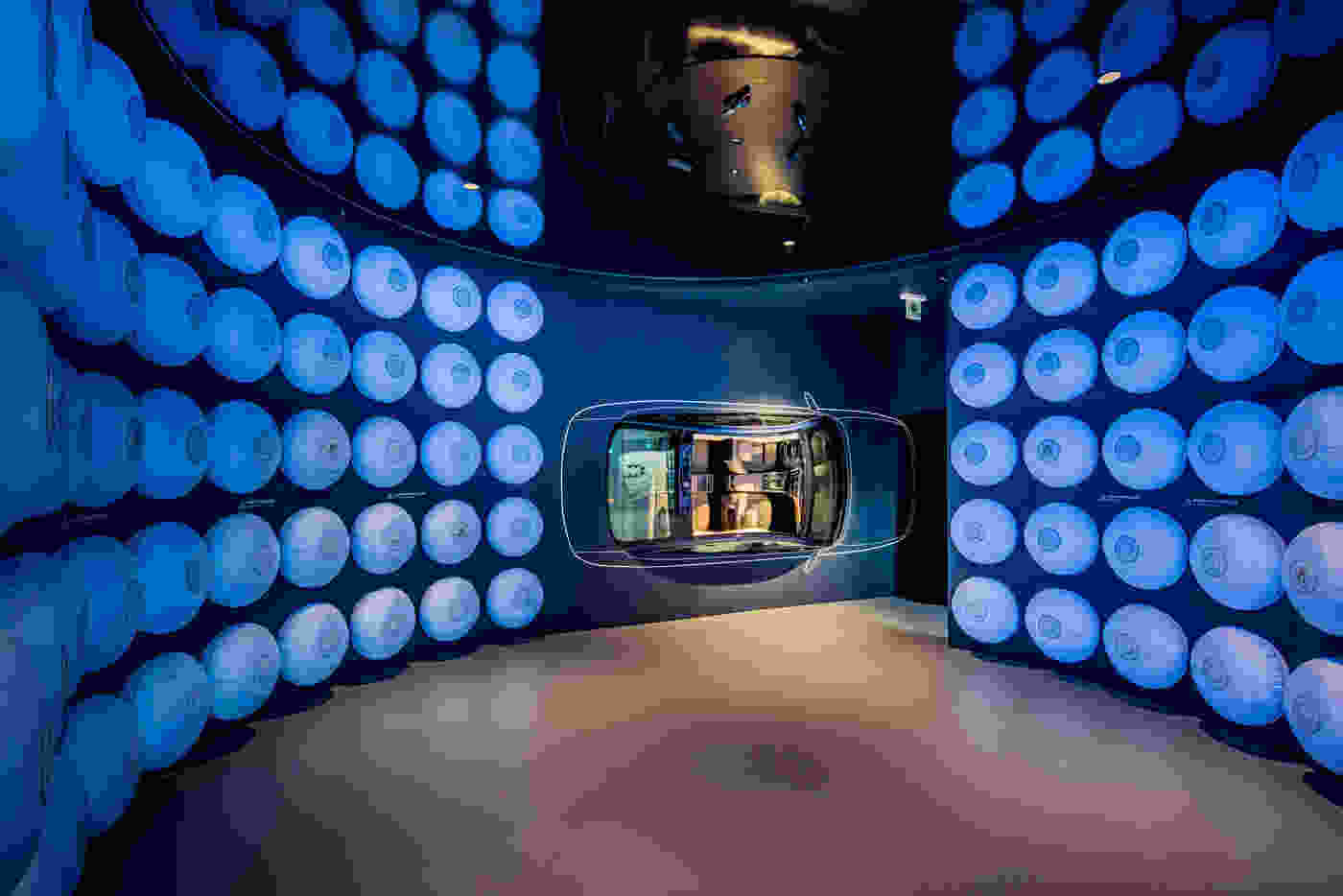

Car on display in a blue-lit exhibition chamber surrounded by circular wall panels.

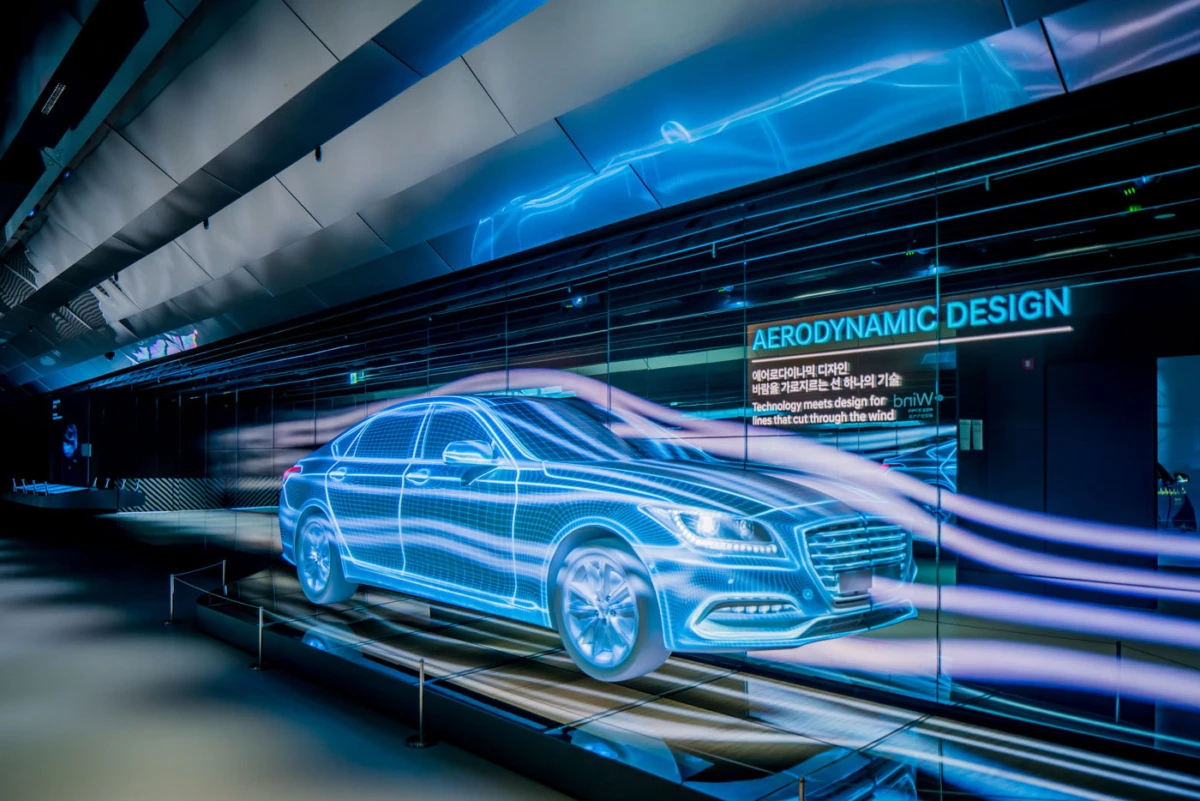

Blue holographic wireframe car displayed in a futuristic showroom; background signage reads AERODYNAMIC DESIGN.

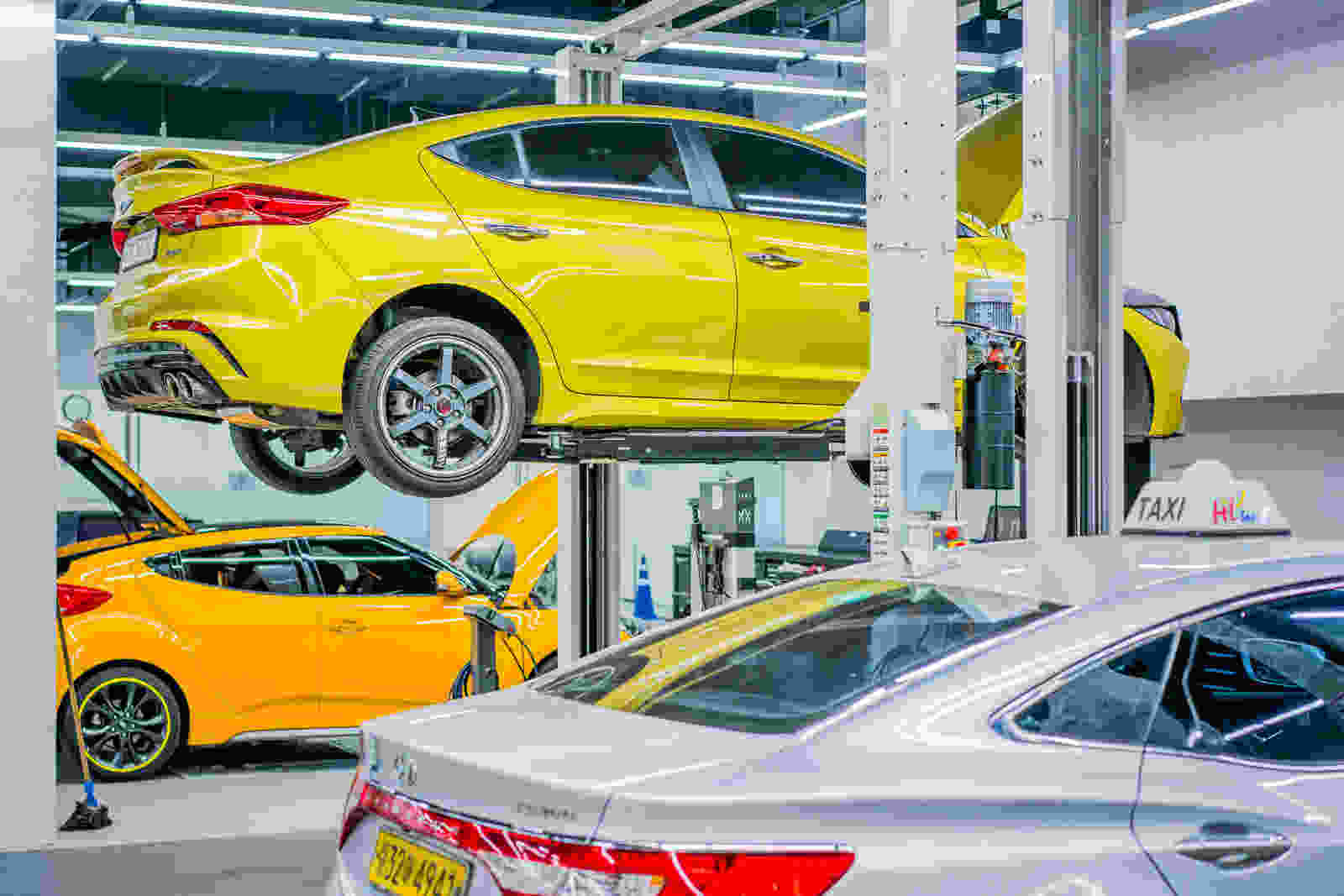

Yellow sedan elevated on a two-post car lift in an auto repair shop; another yellow sedan and a silver taxi visible nearby.

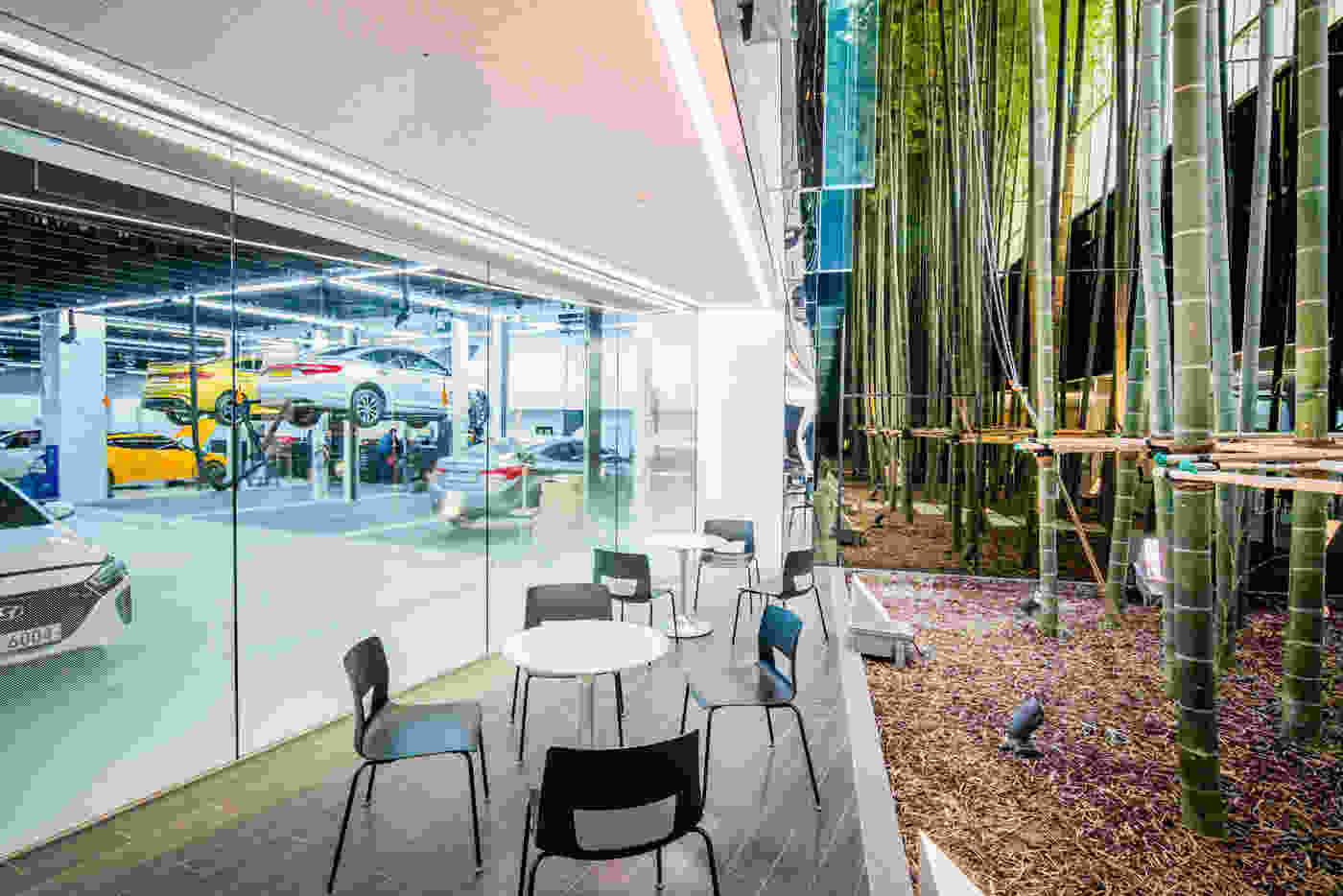

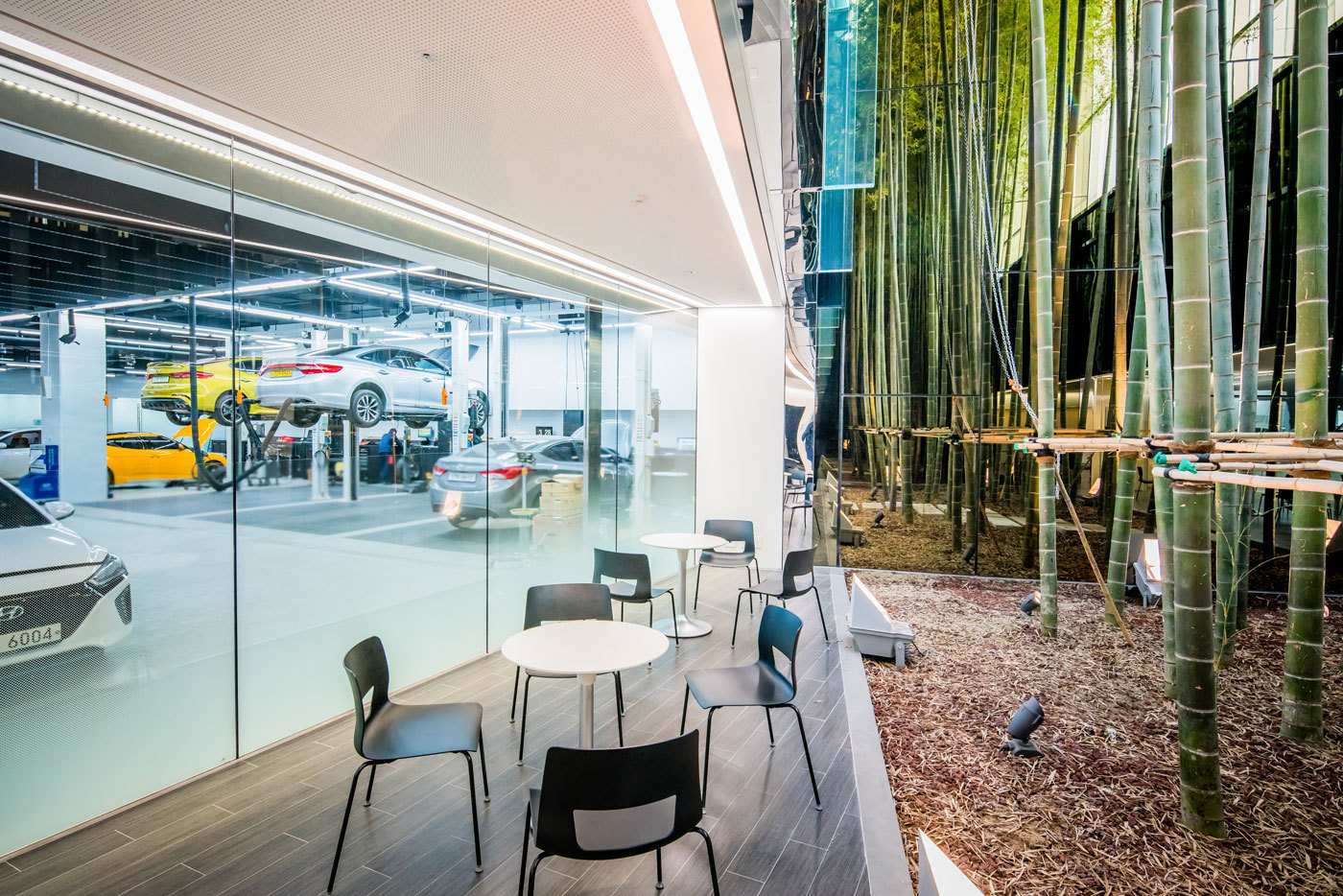

Modern car showroom with glass wall; cars on lifts inside and a bamboo courtyard with round tables and chairs along the glass.

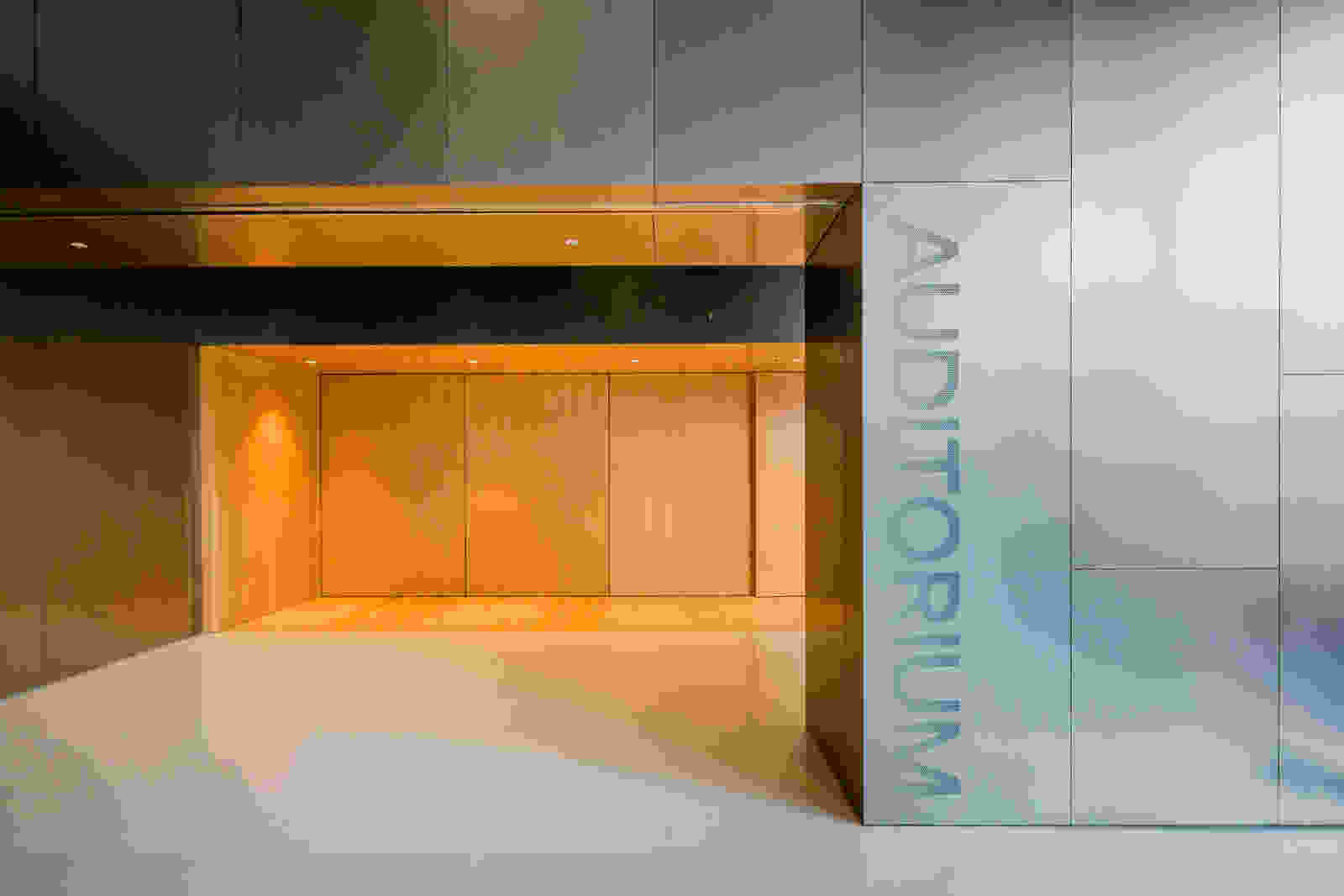

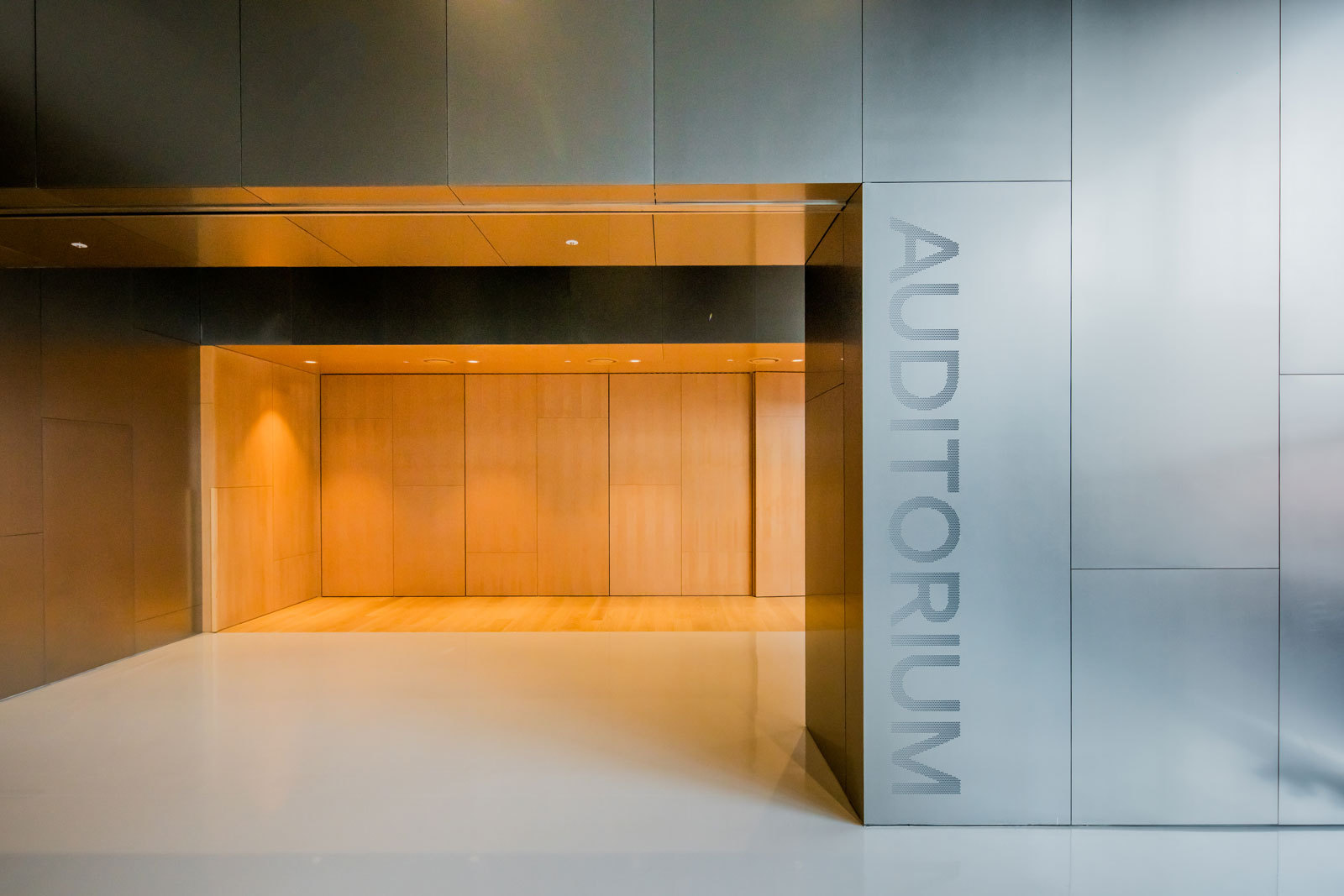

Open doorway into a wood-paneled auditorium interior; metal walls frame the entrance, with the word AUDITORIUM on the right.

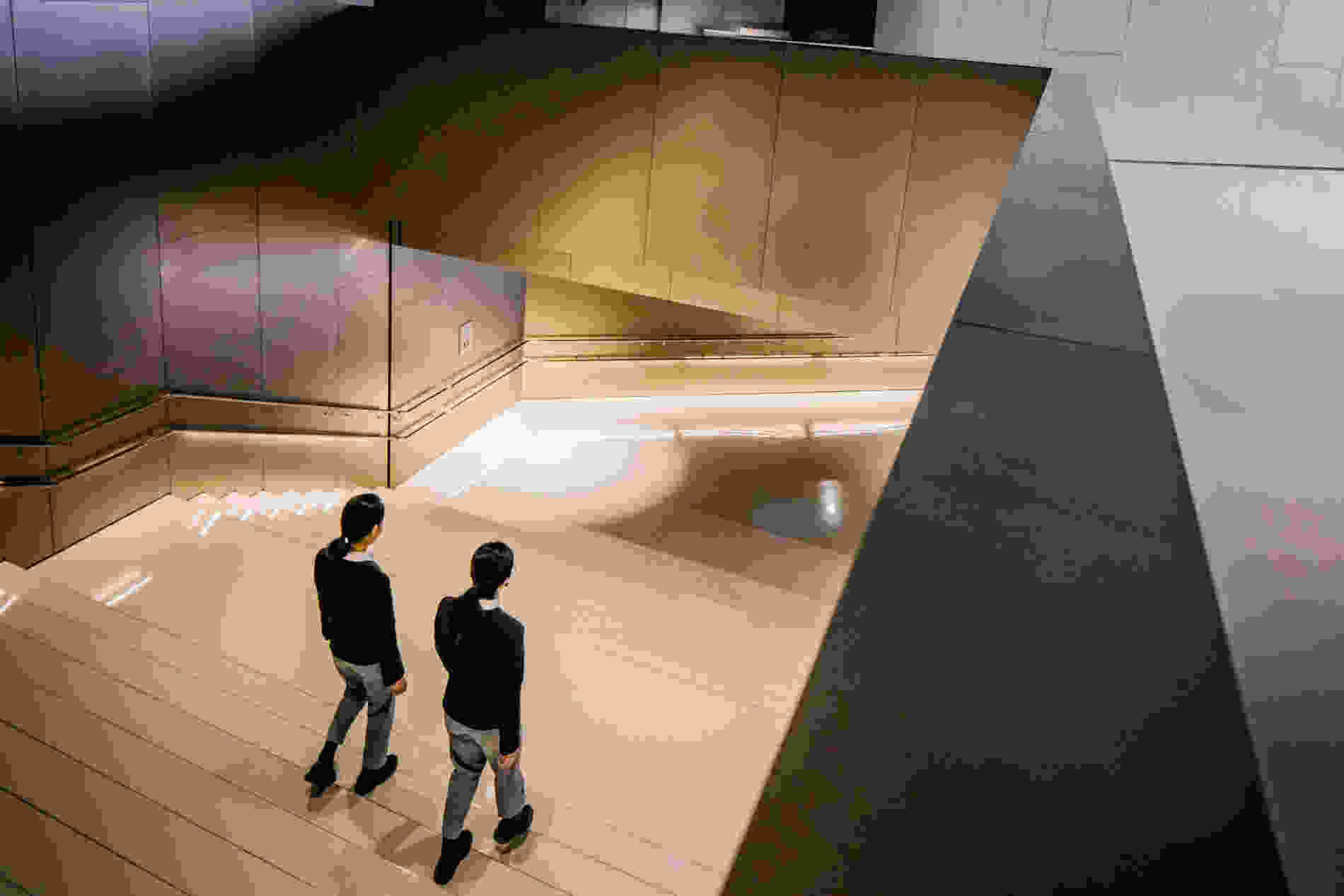

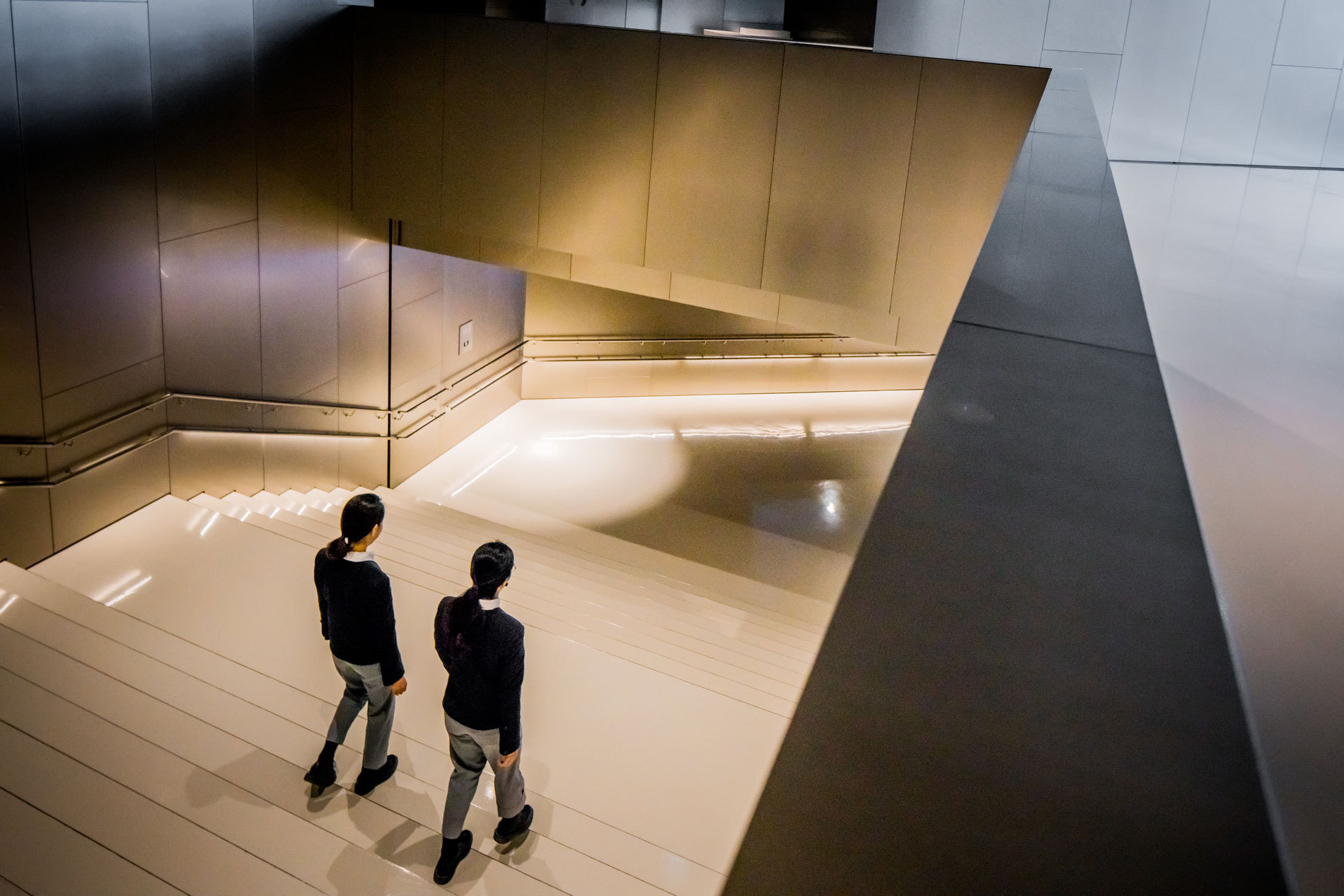

Two people descend a wide white staircase inside a sleek metal-clad, angular interior.

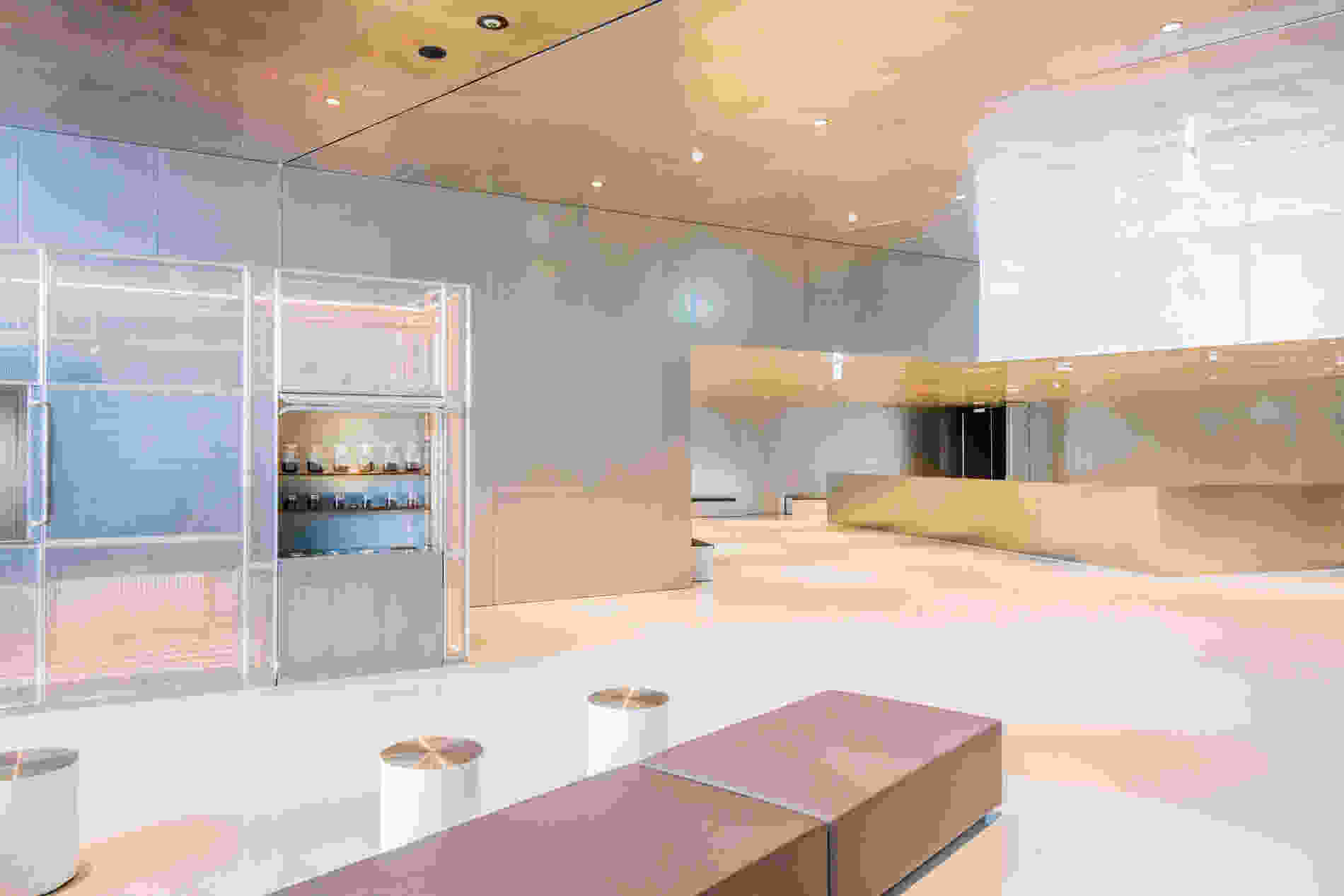

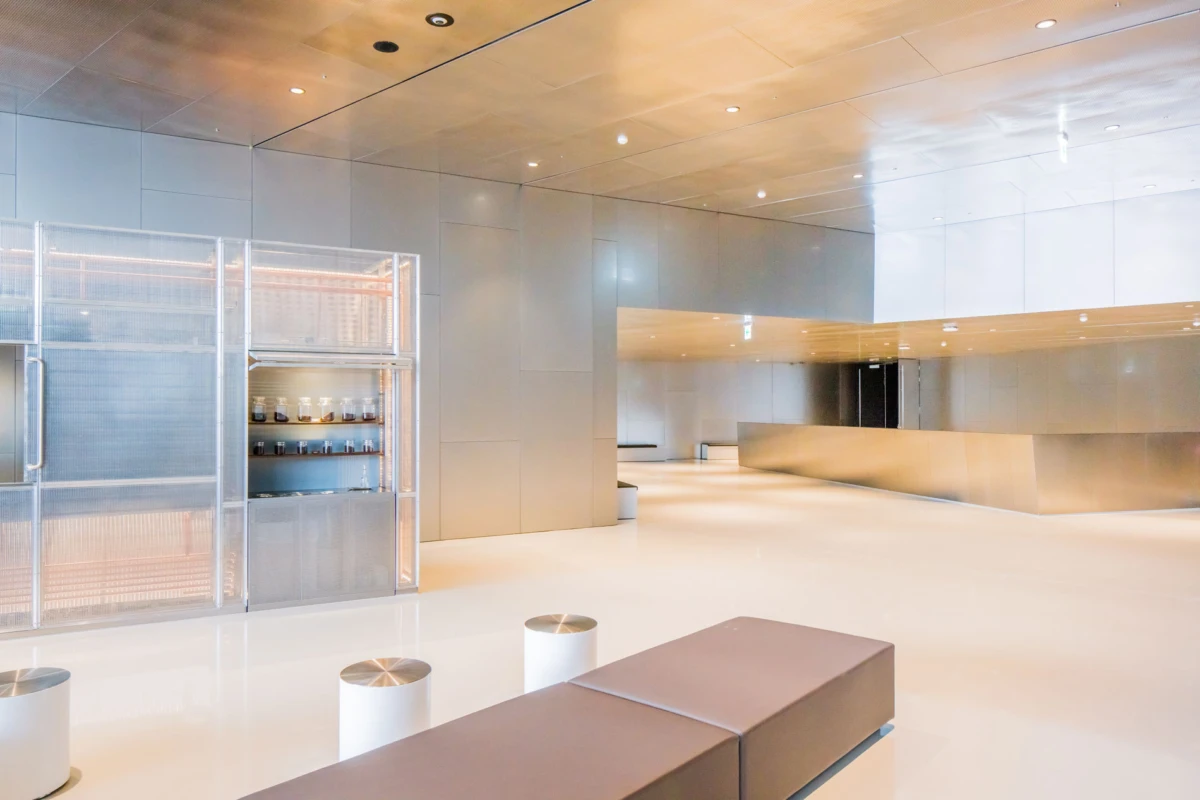

Modern stainless-steel lobby interior with curved counter, glass-front cabinet of jars, and white seating; empty.

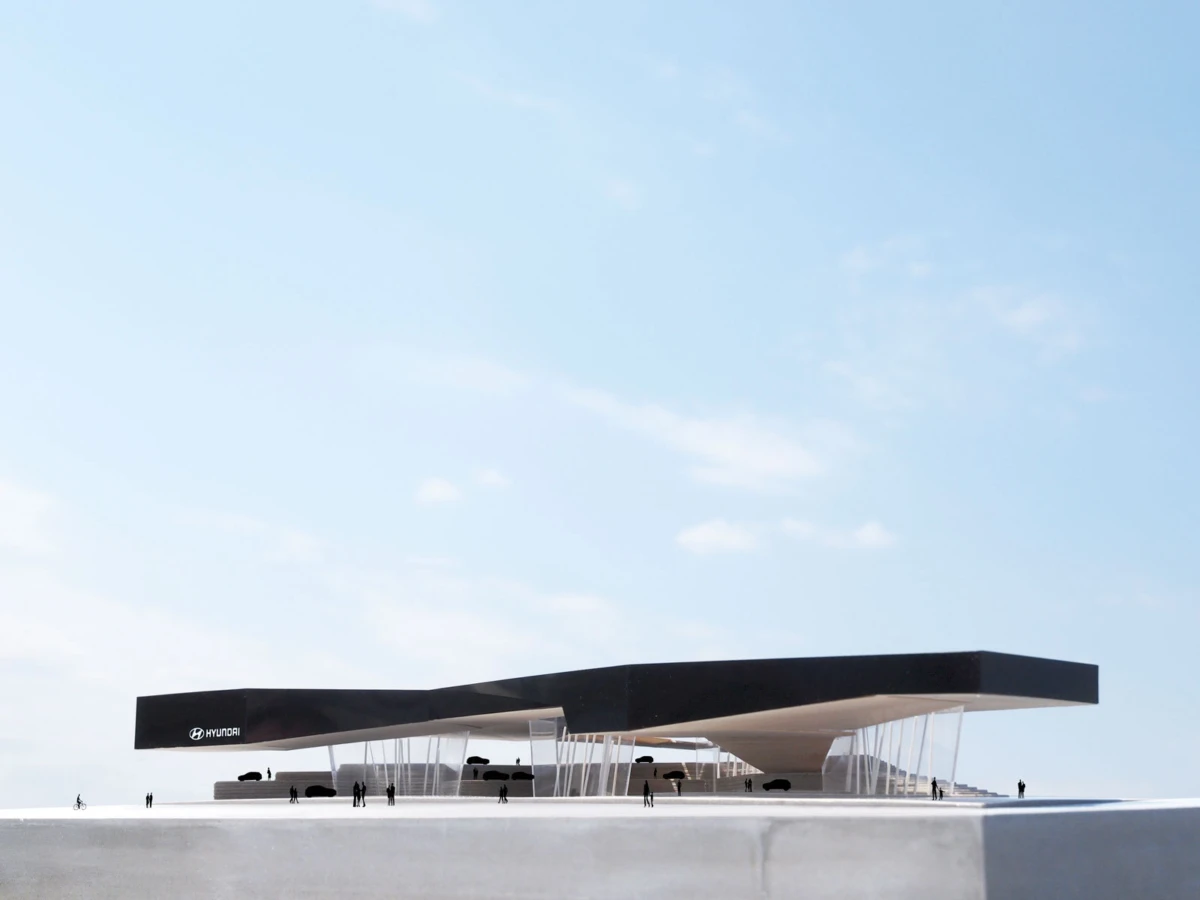

Contemporary pavilion with a long black cantilevered roof atop white columns, silhouettes of people nearby, blue sky.

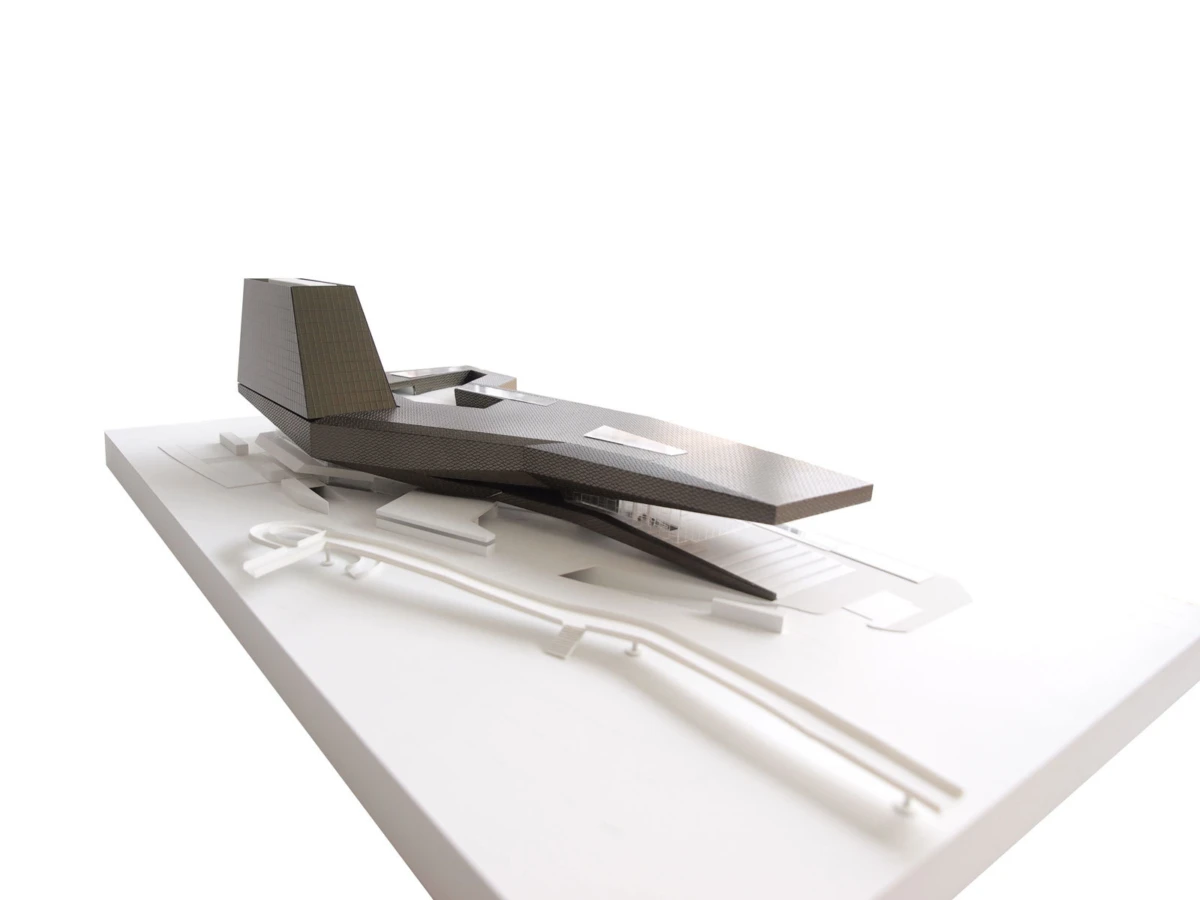

Black angular concept aircraft model on a white display base.

model

Two long rows of white architectural models arranged on a bright white studio table, viewed from end to end.

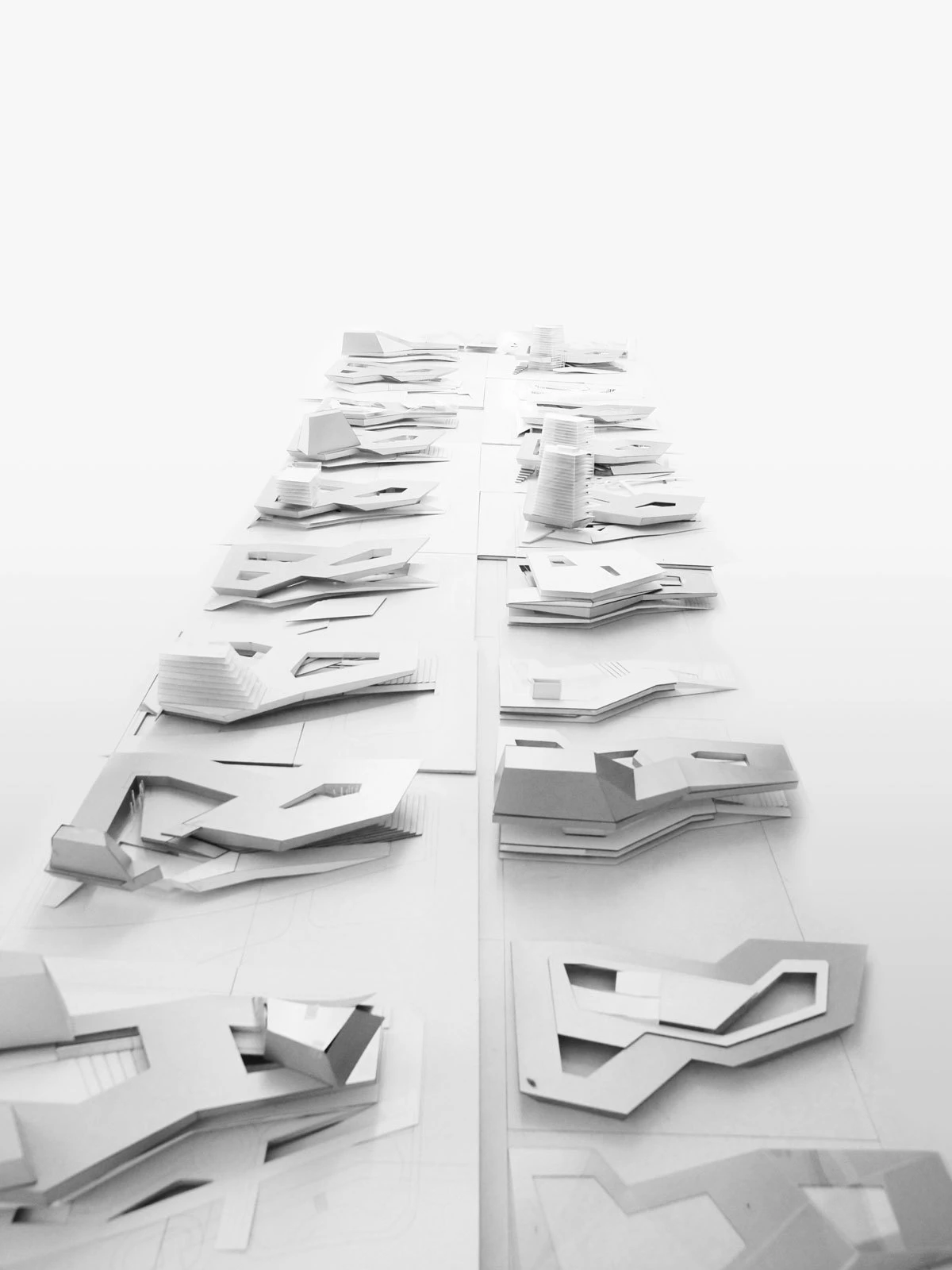

study models

Cross-section view of a modern mixed-use skyscraper with a podium, showing underground parking and multiple interior levels.

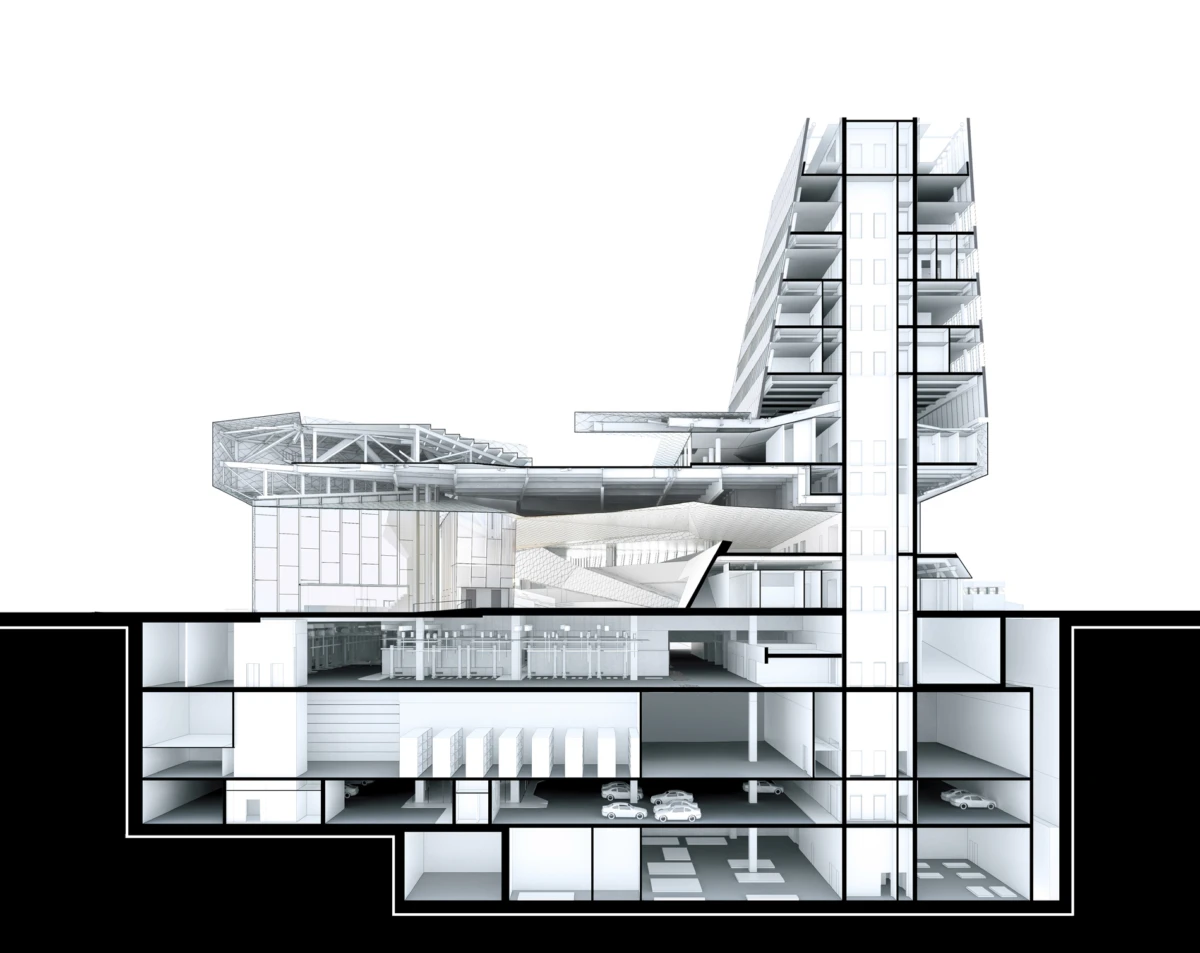

section

No subject visible on blank white background.

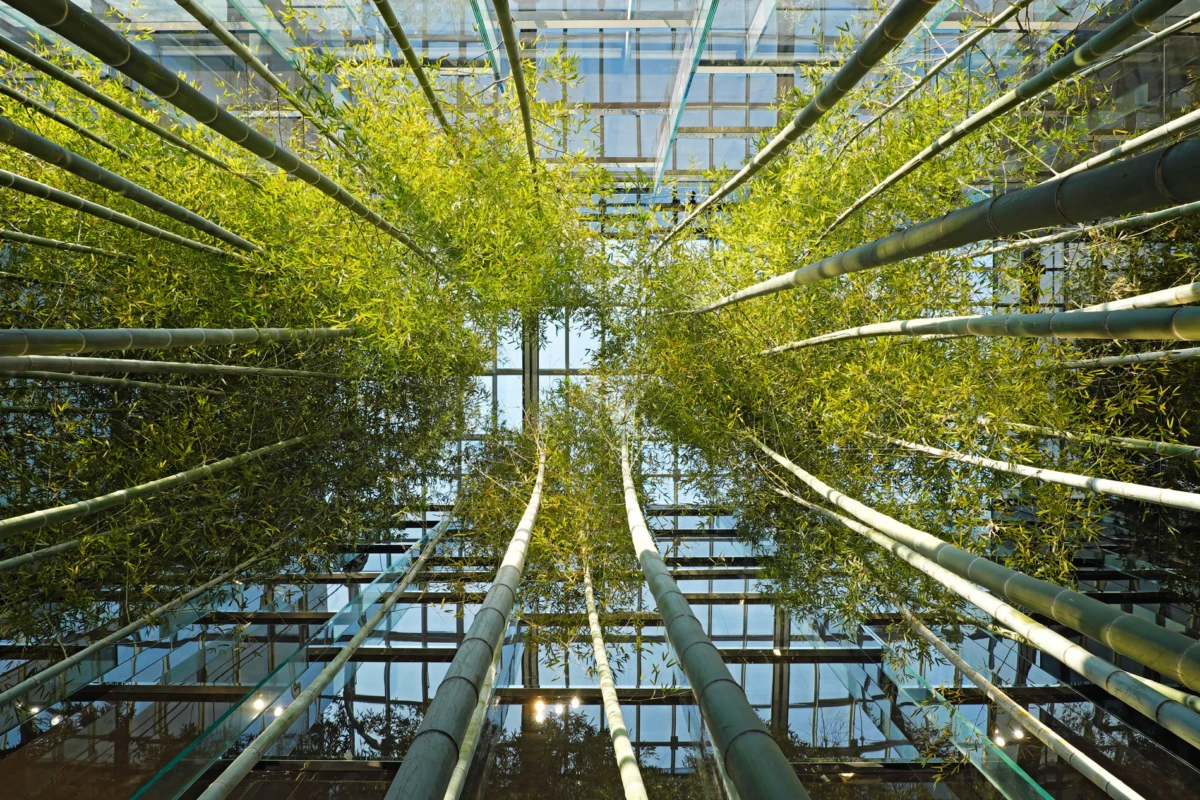

Vertical Green

Bamboo stalks stretch upward inside a glass-walled atrium.

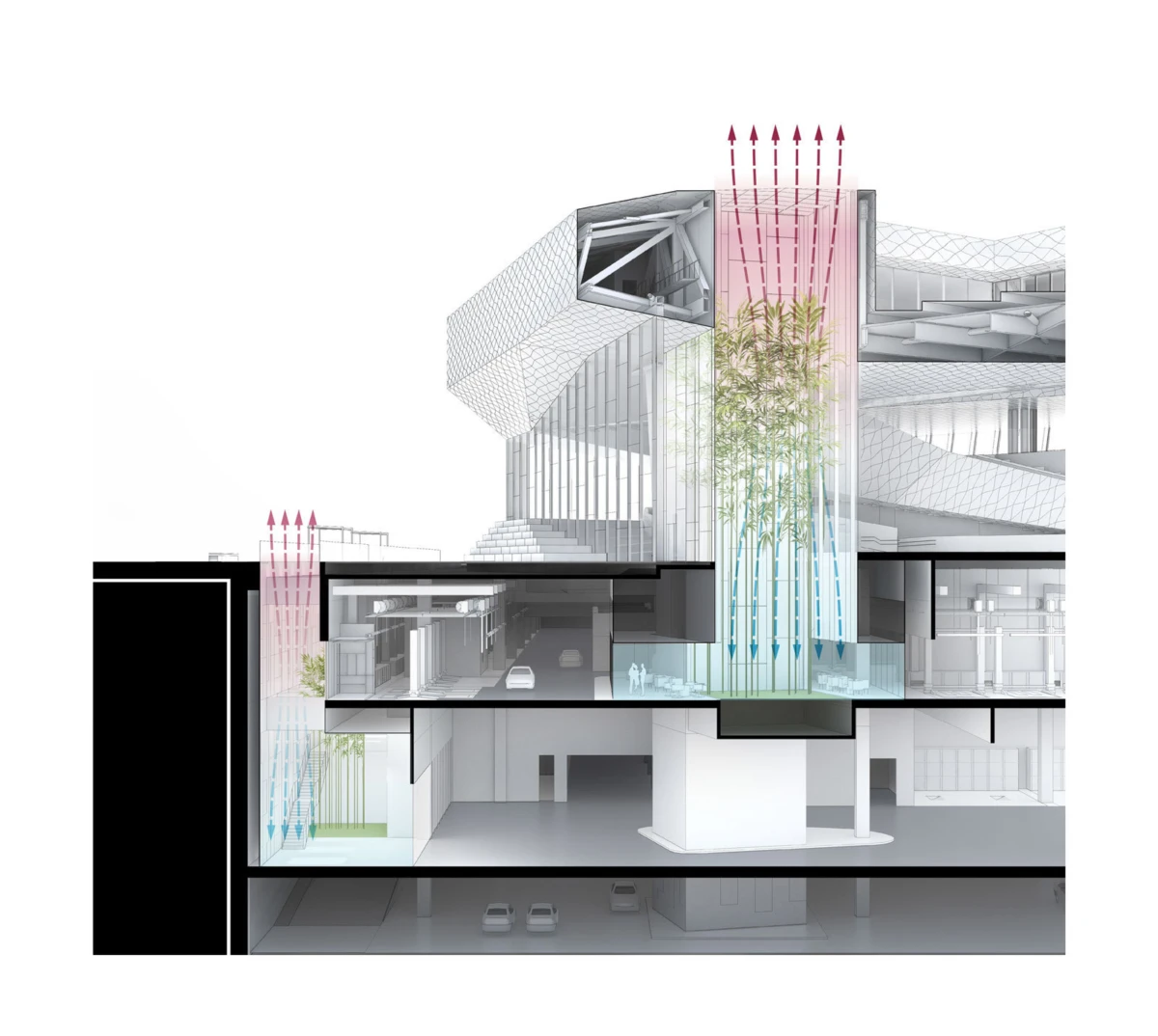

Cutaway of a modern multi-story building with vertical atriums, showing upward airflow arrows through planted cores and glass walls.

diagram - natural ventilation

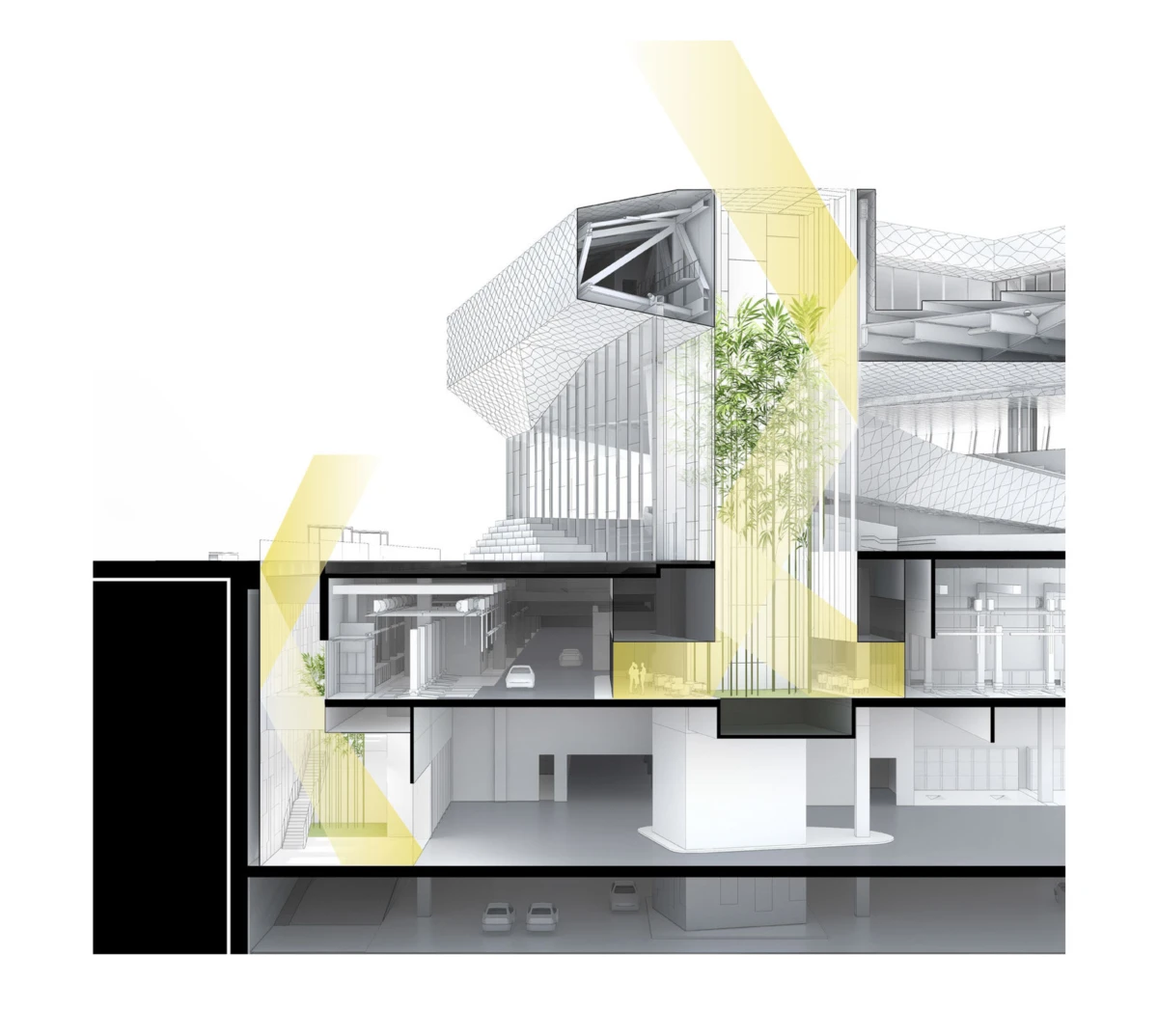

Cross-section of a modern, multi-story building with glass atrium, interior bridges, trees, and yellow light beams; underground parking.

diagram - day light

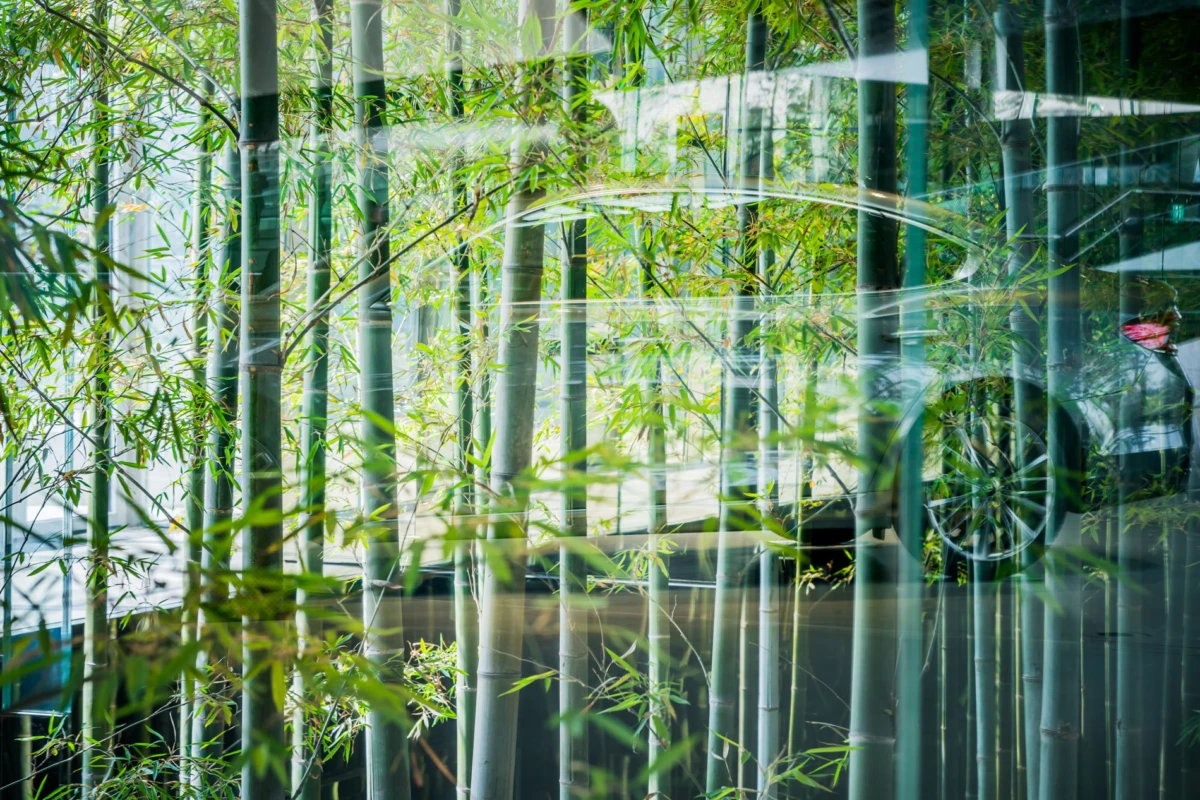

Dense bamboo stalks in foreground; glass reflects a parked car in the background.

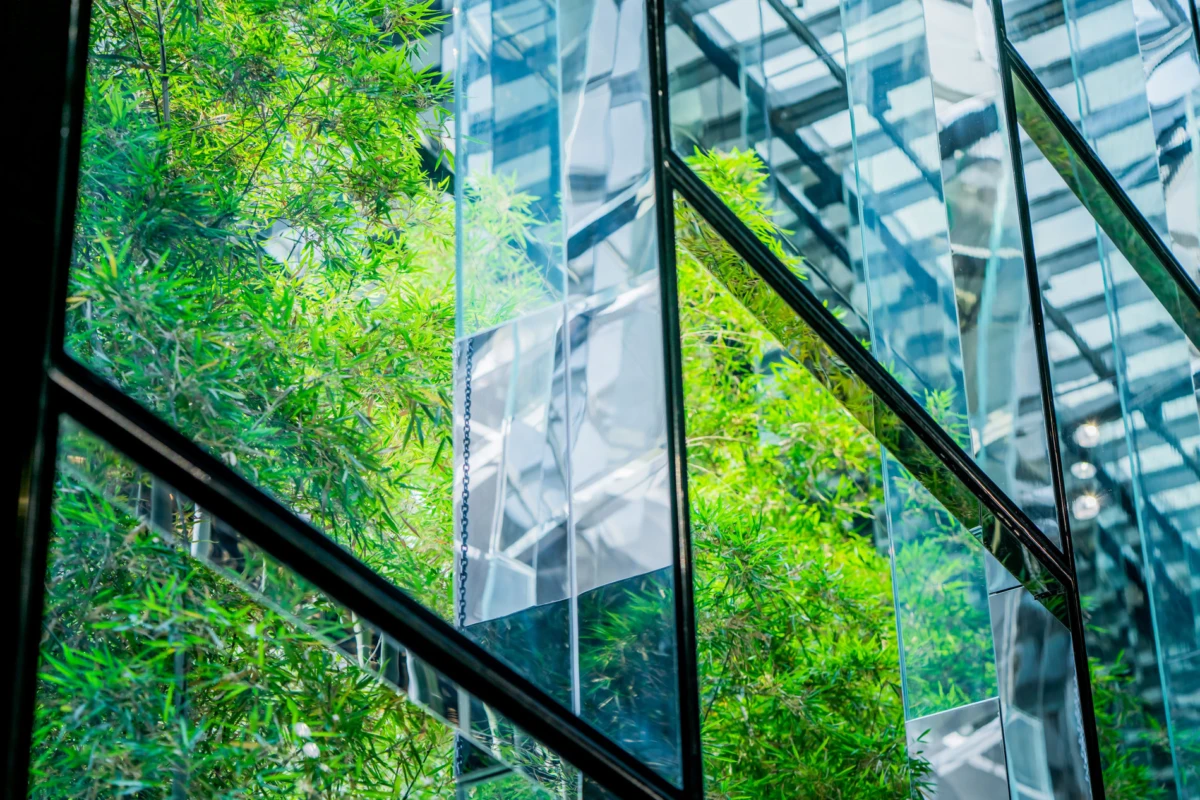

Geometric glass facade with green bamboo plants visible through angled panels and metal frames.

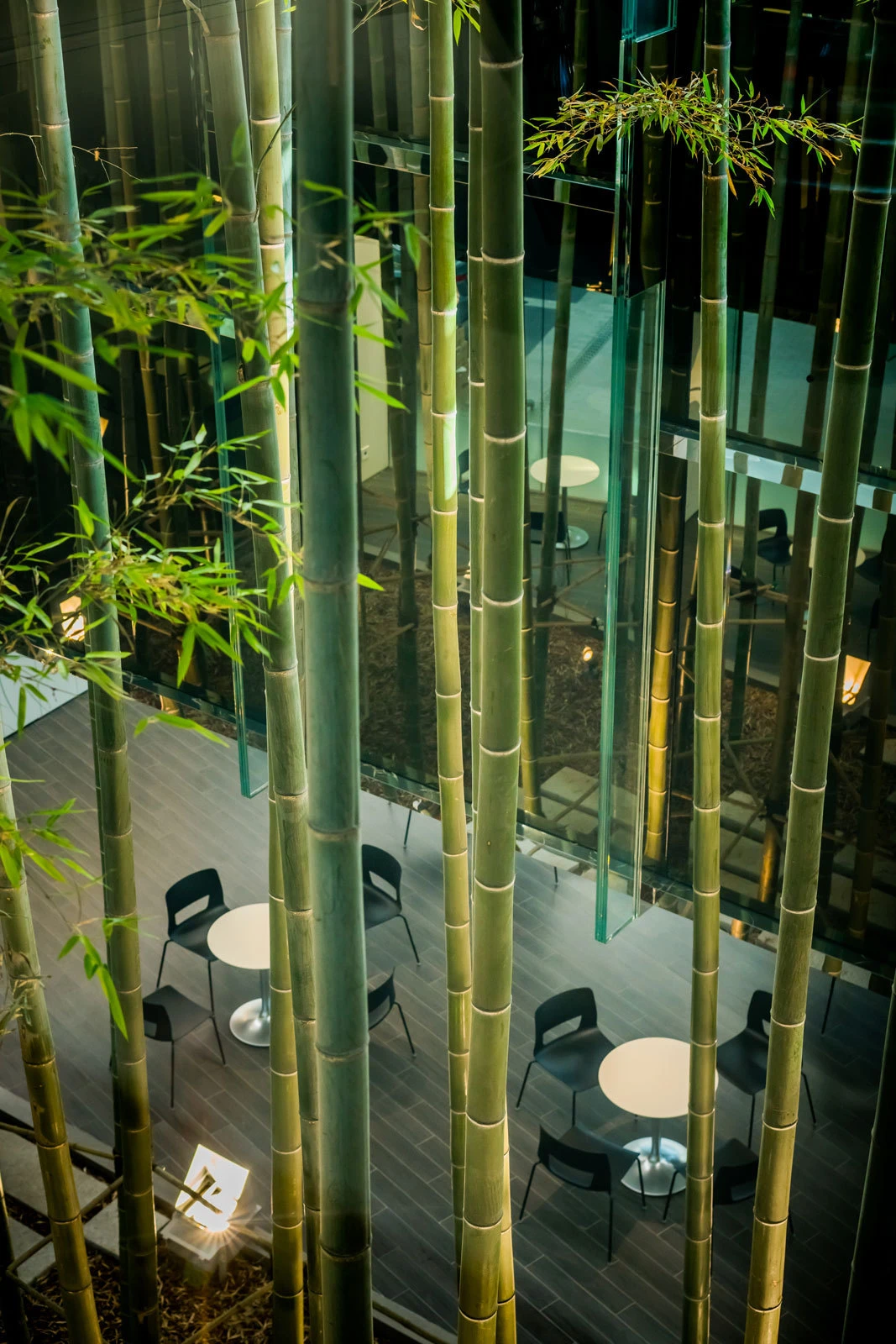

Tall bamboo stalks rise in an indoor atrium with glass walls, surrounding round white tables and black chairs.

The design’s vertical elements take on static but also vital functions for the building – they carry the open space

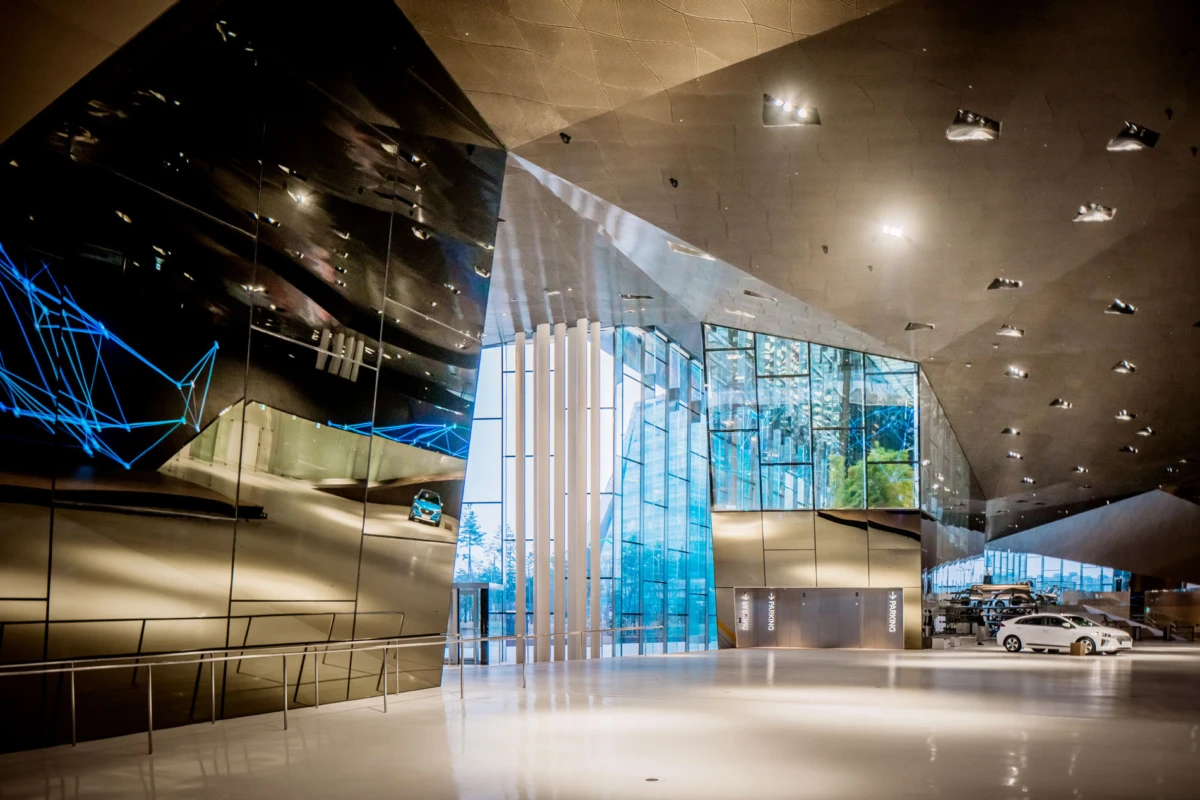

Futuristic car showroom interior with reflective black walls, blue light lines, and several cars near a glass entrance.

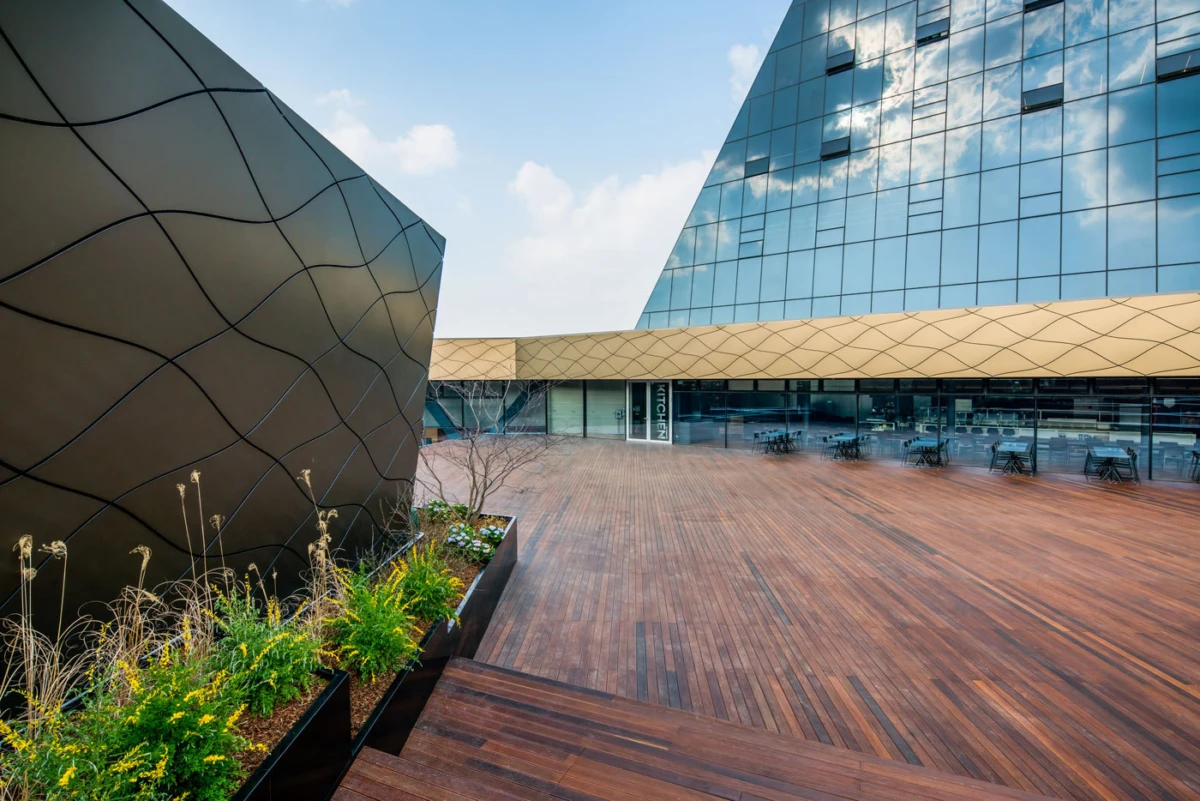

Wooden terrace between angular black wall with curved lines and a glass-clad pyramid building; planters with greenery and outdoor seating along a storefront.
No subject visible on blank white background.

Structural Engineering

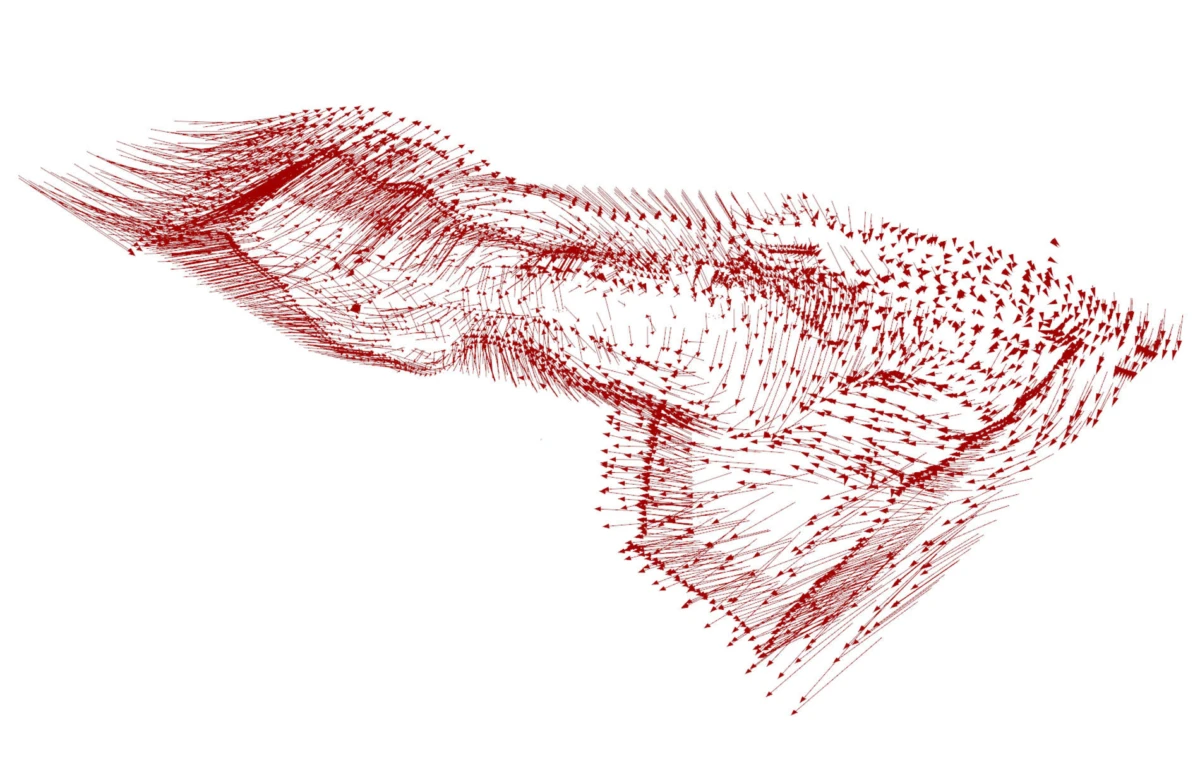

Red vector-field mesh with arrows on a twisting folded surface against white background.

© Bollinger+Grohmann Ingenieure

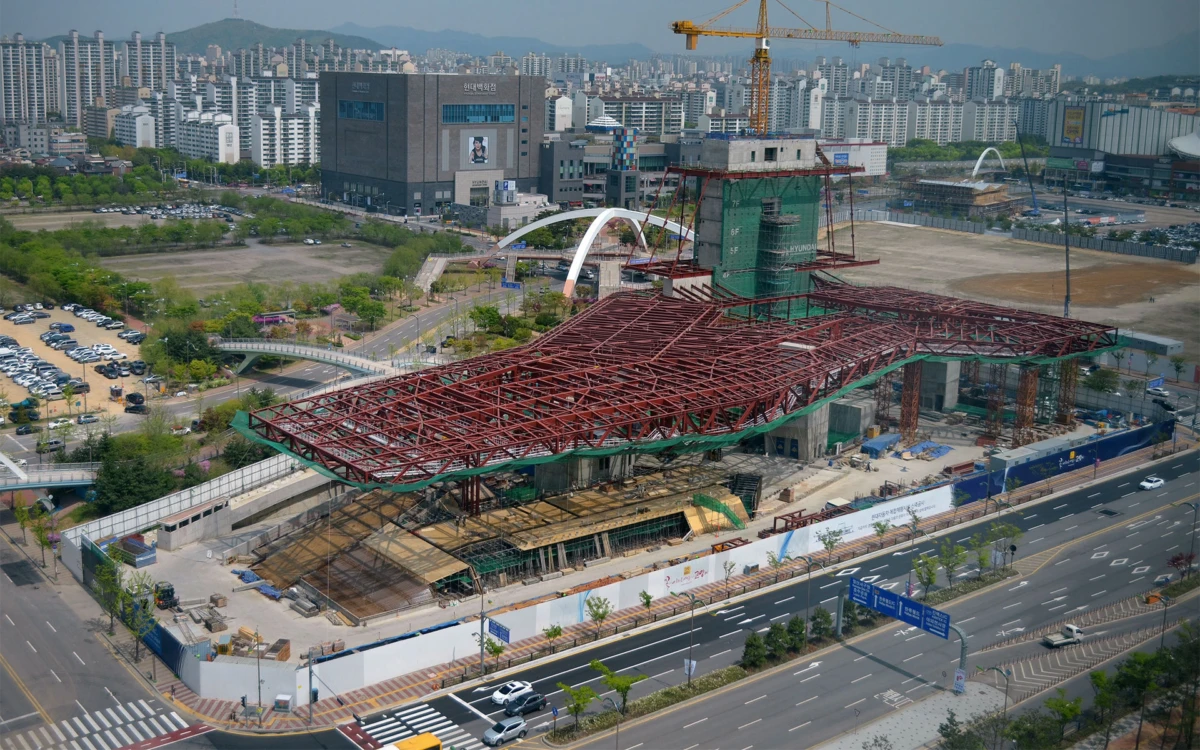

Large steel-framed canopy under construction with red lattice beams and a crane in an urban cityscape.

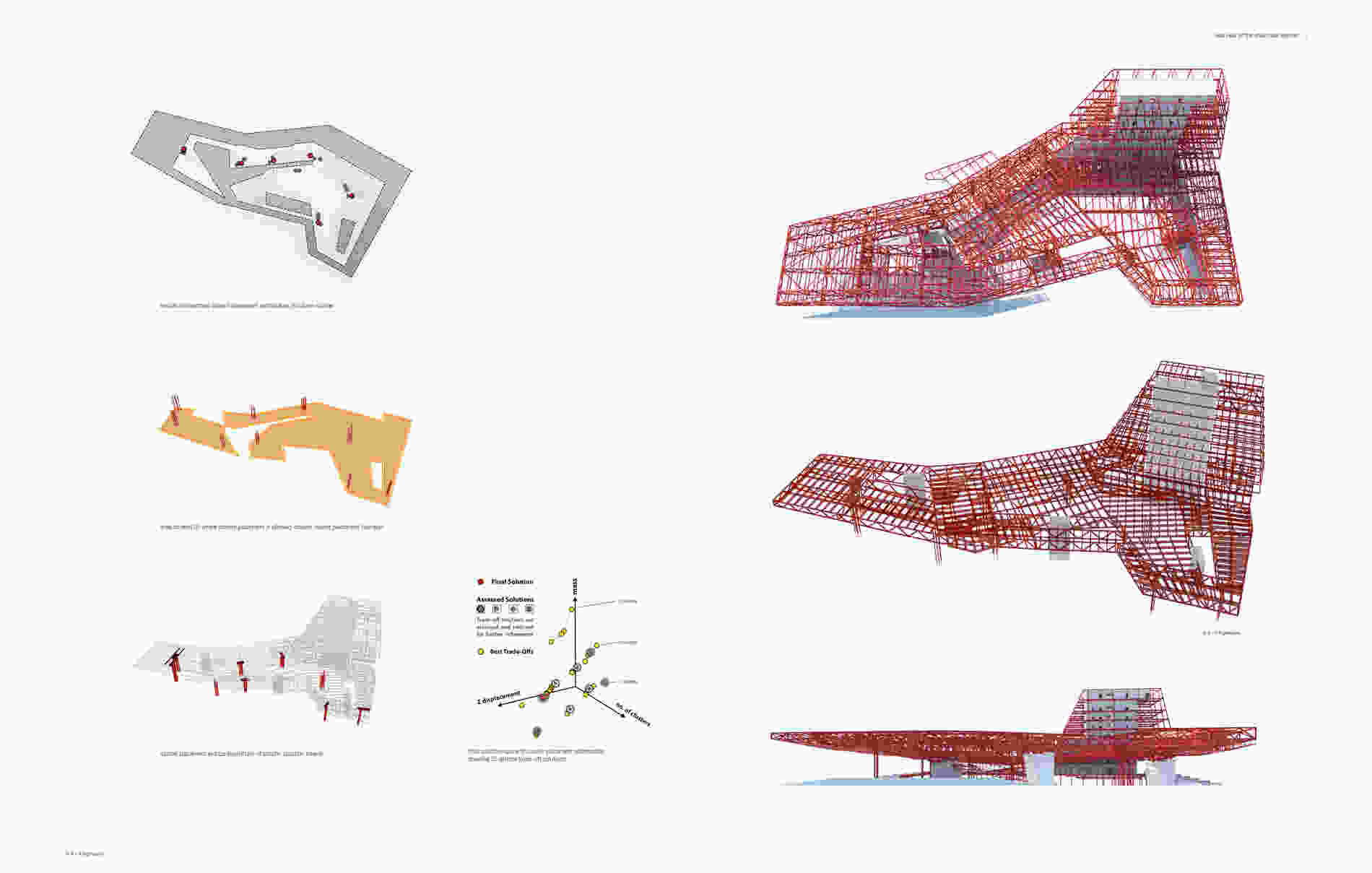

Collection of architectural diagrams: red steel-frame structures and orange plan layouts on a white background, showing construction concepts.

© Bollinger+Grohmann Ingenieure

Construction site with a green-covered steel canopy on the left and a red lattice steel roof truss on the right; urban backdrop.

© Bollinger+Grohmann Ingenieure

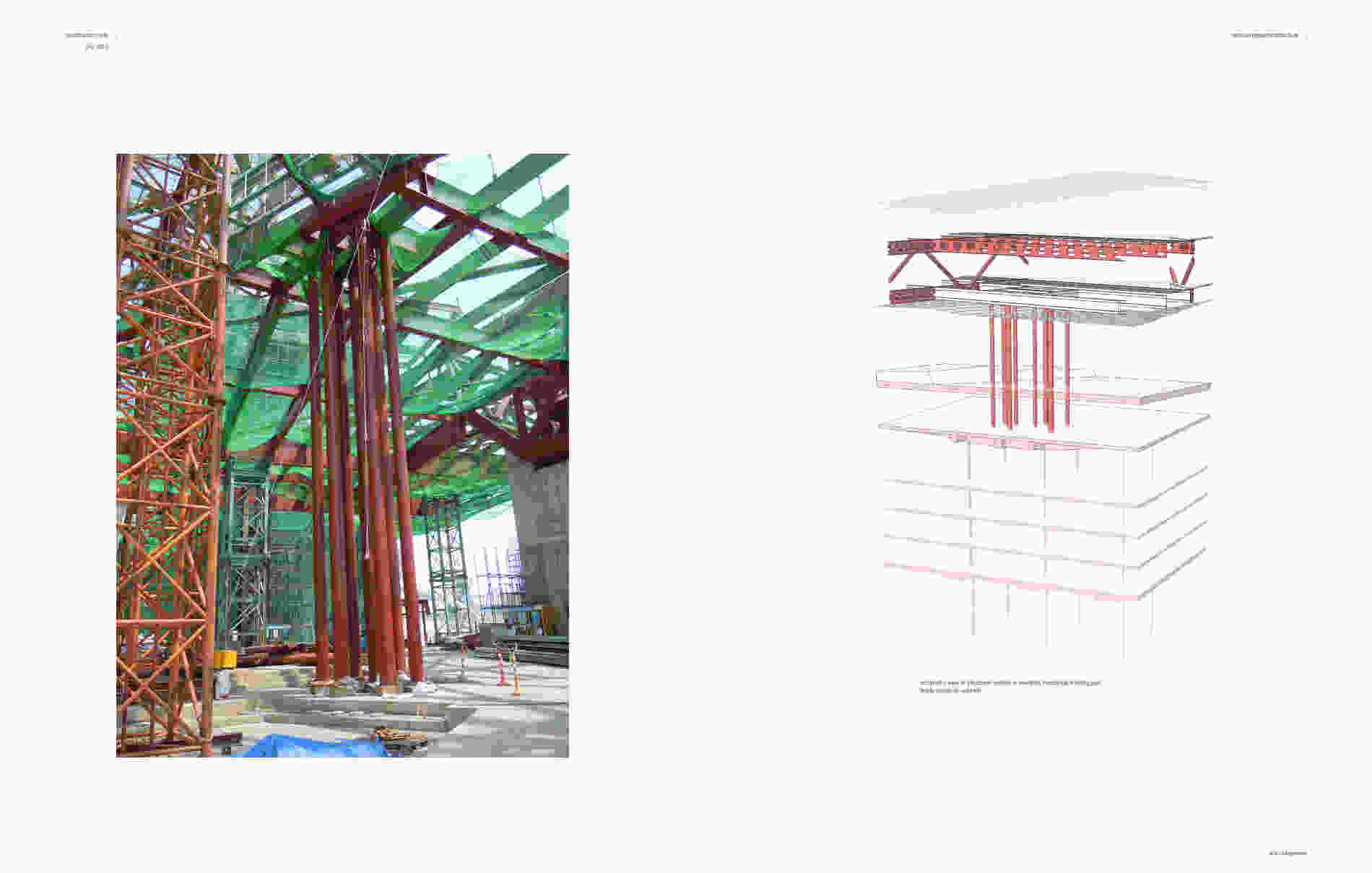

Two-page spread: left, construction site with orange scaffolding and red steel columns under green netting; right, exploded diagram of a vertical structural system.

© Bollinger+Grohmann Ingenieure

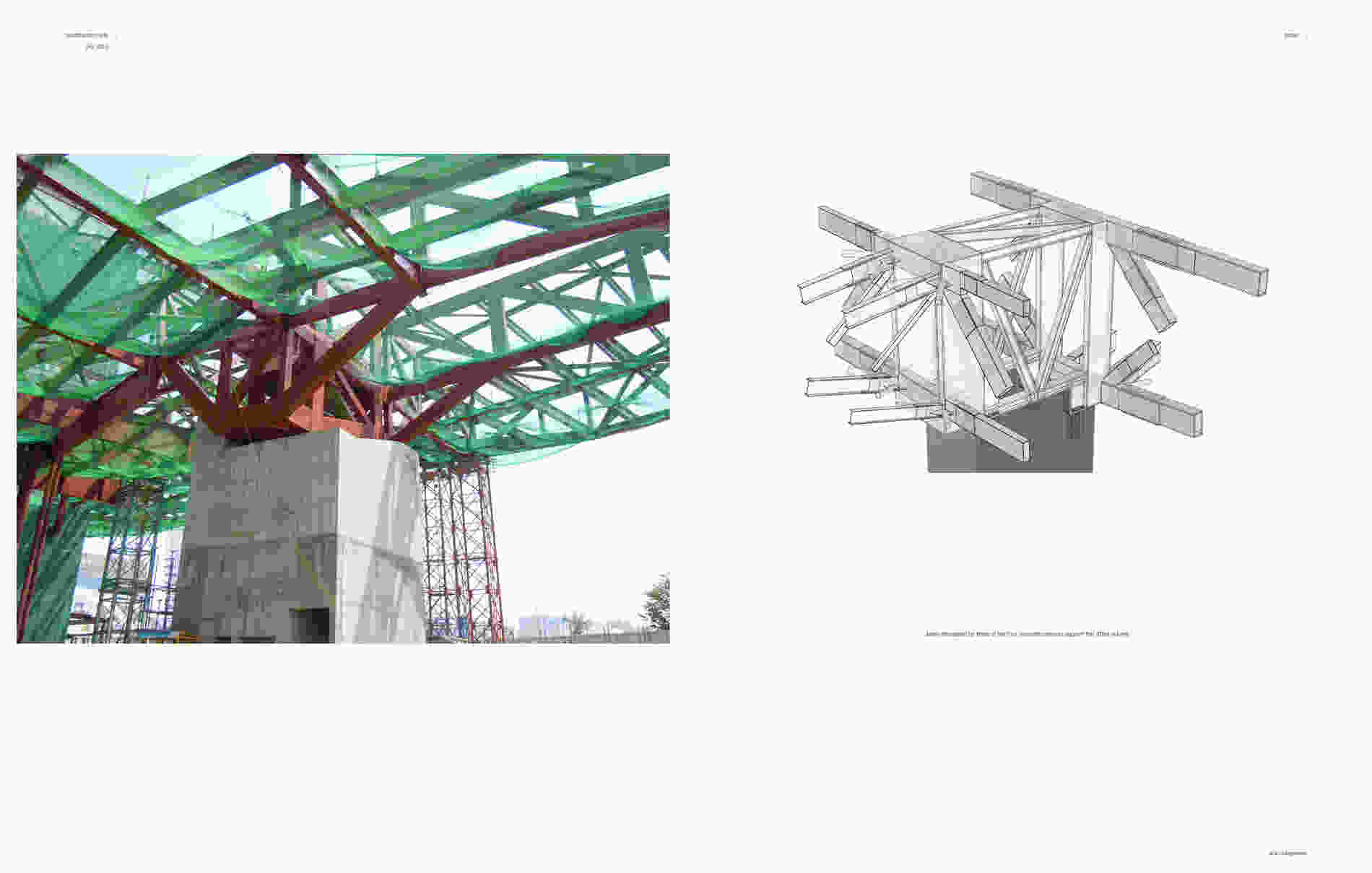

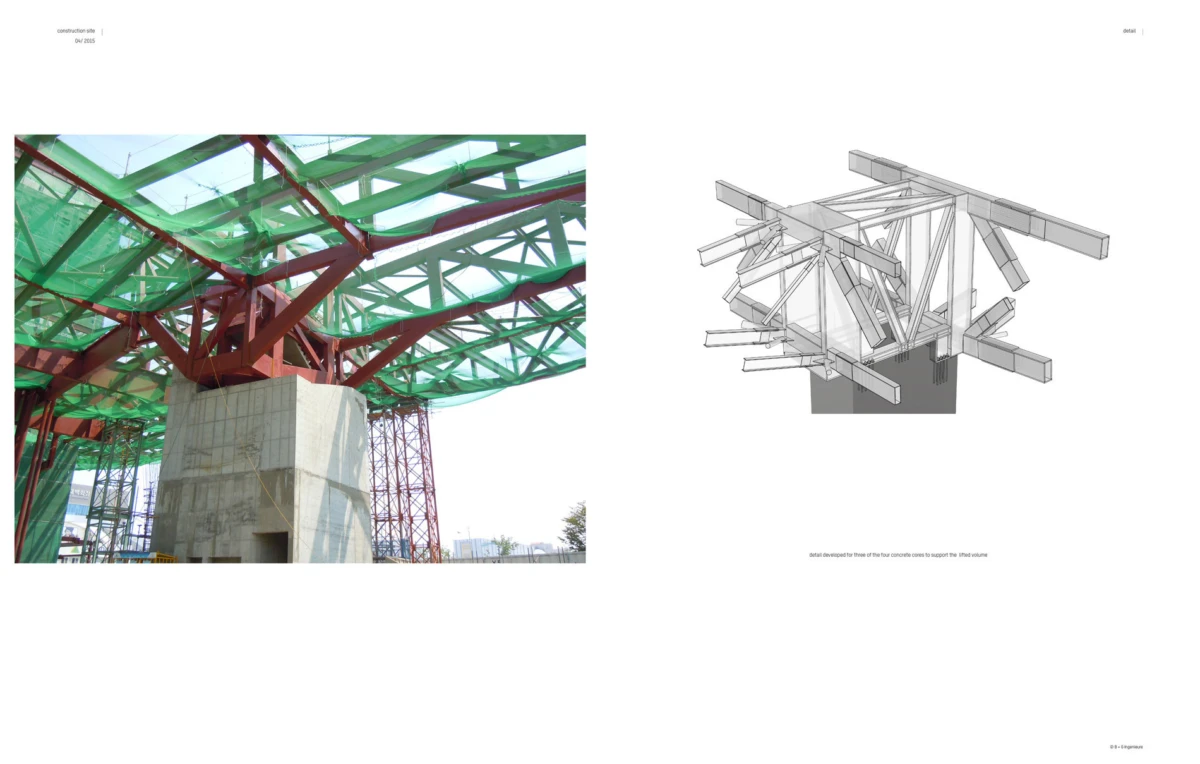

Left: construction site with red steel frame under a green translucent canopy atop a concrete column; right: gray 3D truss diagram.

© Bollinger+Grohmann Ingenieure

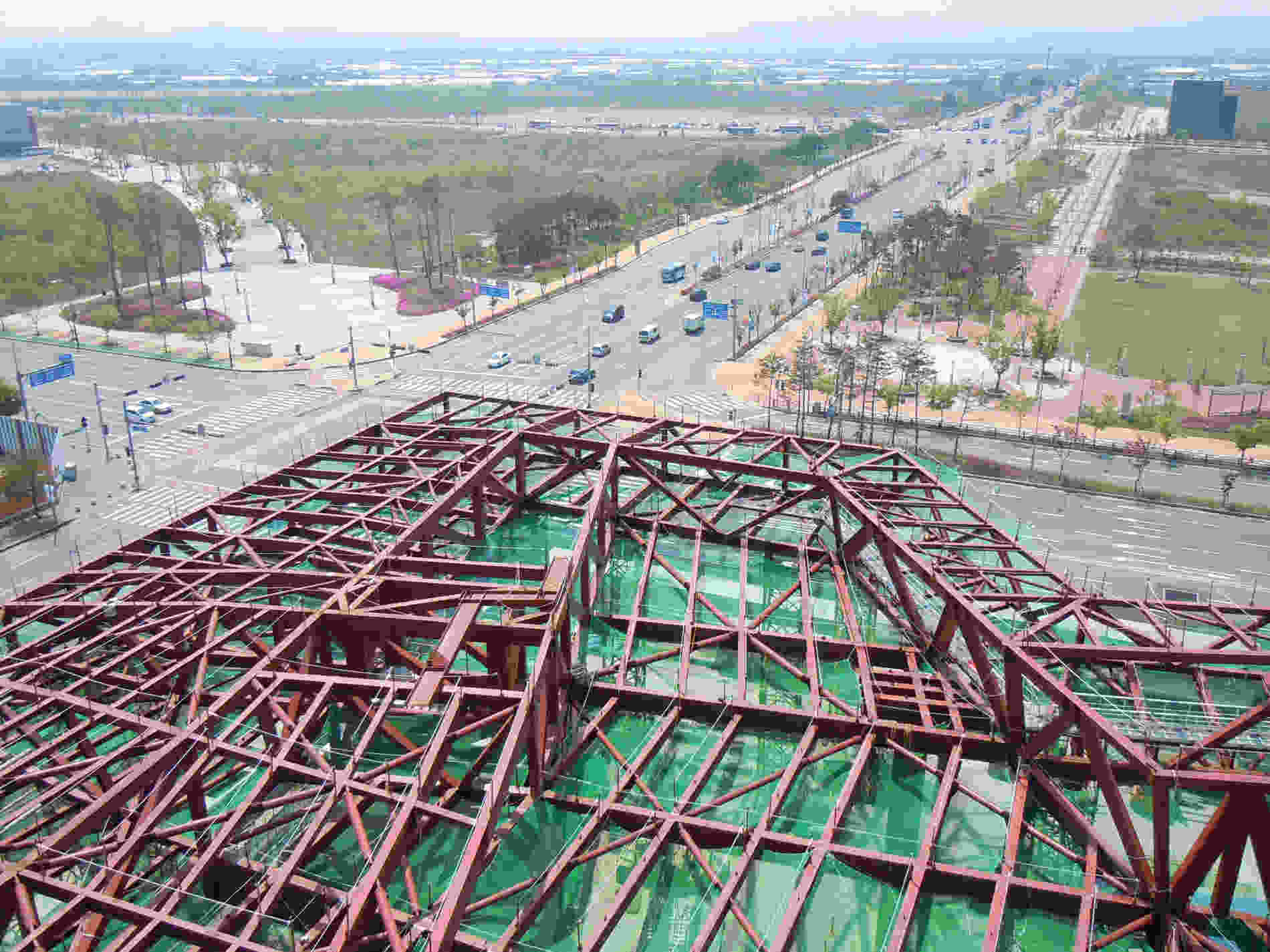

Aerial view of a red steel lattice roof under construction above a green surface, overlooking a busy multi-lane intersection with trees and parkland.

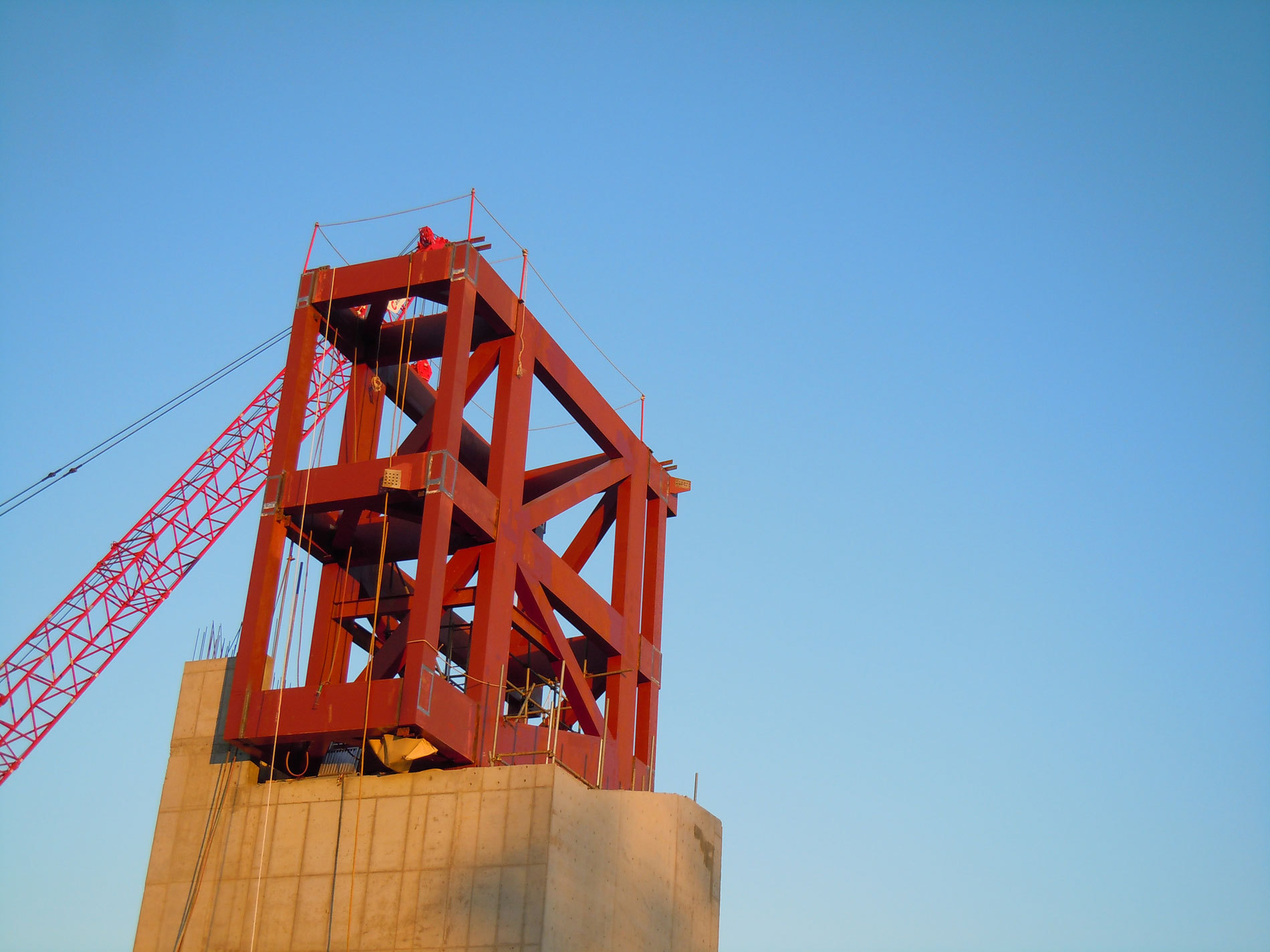

Red steel lattice tower rising from a concrete foundation; crane to the left, worker on top against a clear blue sky.

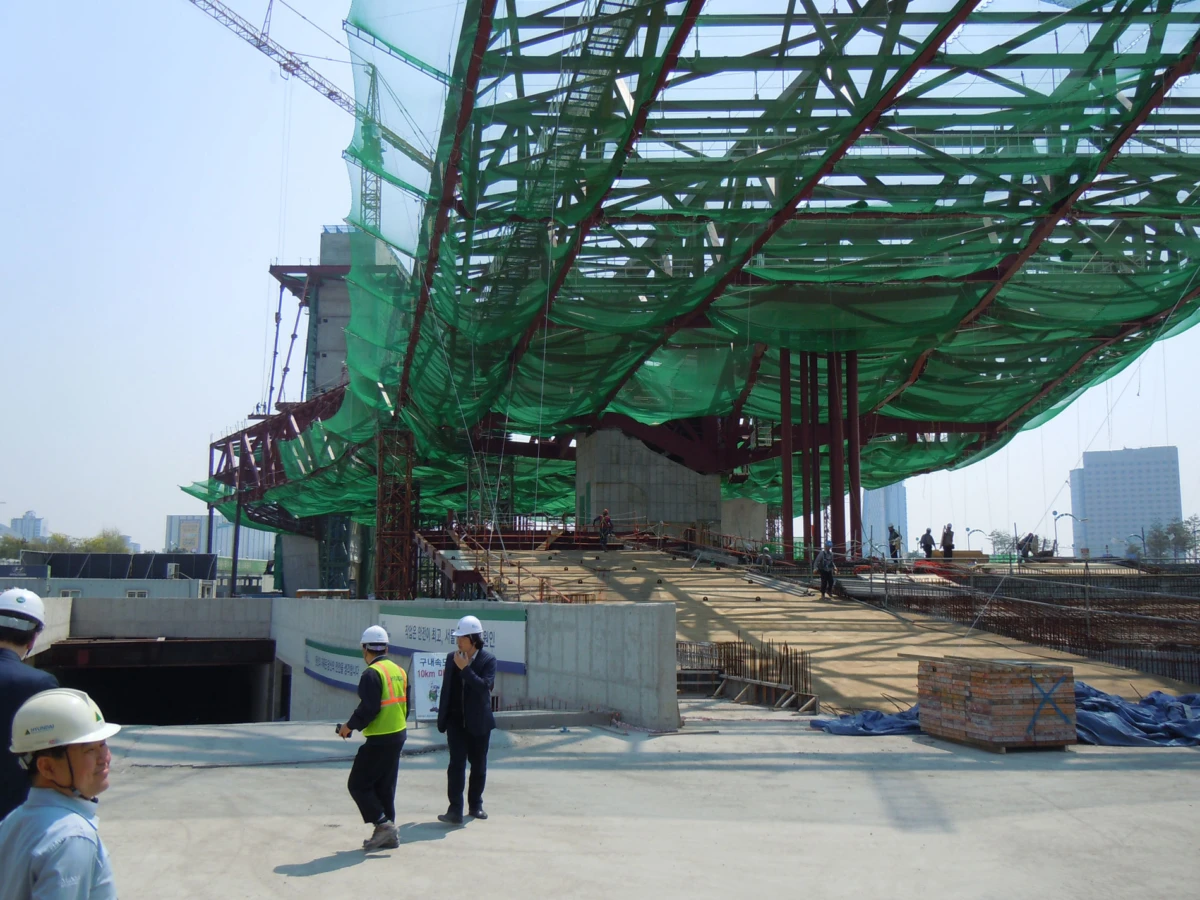

Construction site under green netting over a steel framework; workers in hard hats walk on concrete with stacked bricks nearby.

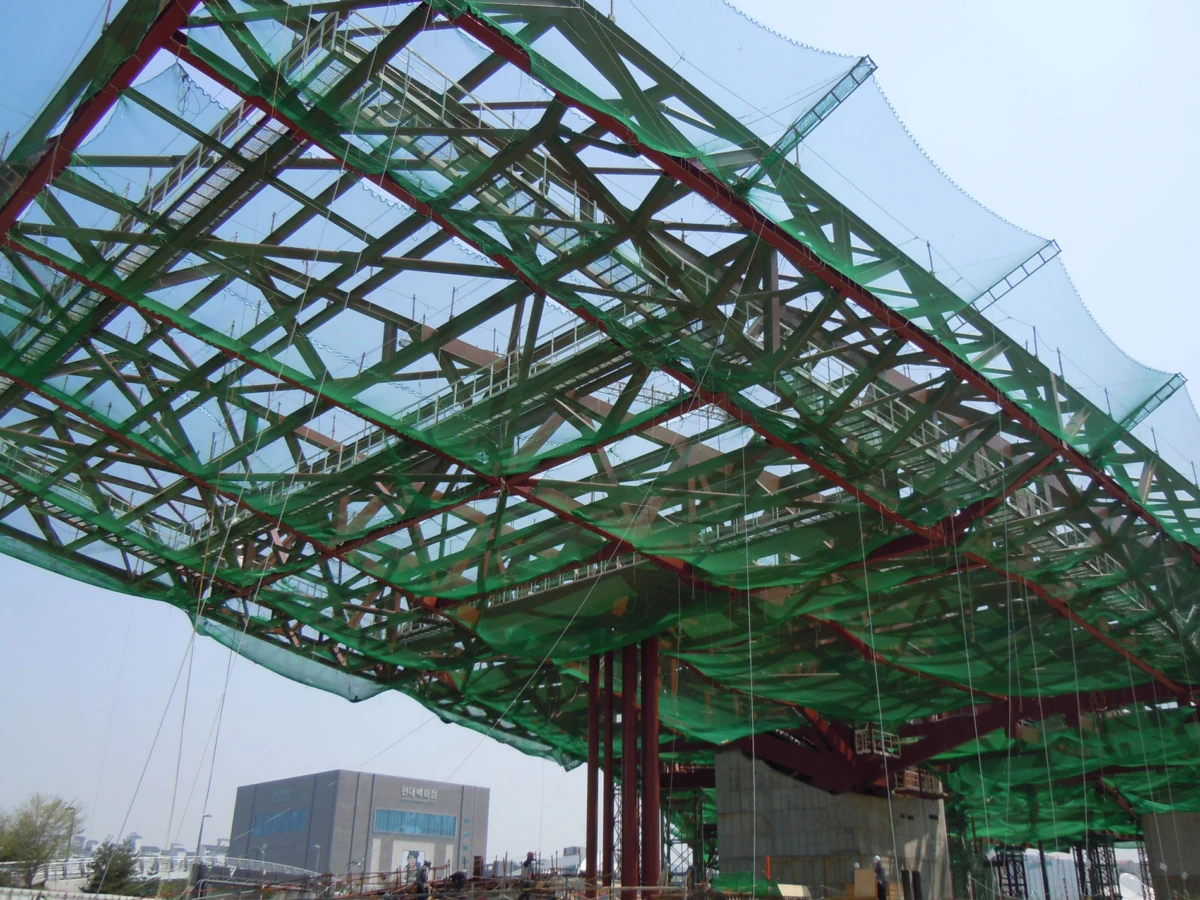

Green safety nets drape a red-columned steel framework under construction at an outdoor site.
